KINGFORCE Keyless Entry Door Lock with Keypad

Programming Instructions

Important：
For your security, please change the default master password to reduce the risk of password compromise.

Default Master Code: 123456.
Customizable Access Code: 4-10 digits.

• note: KingForce is the Multi-Function button in Exterior Assembly.

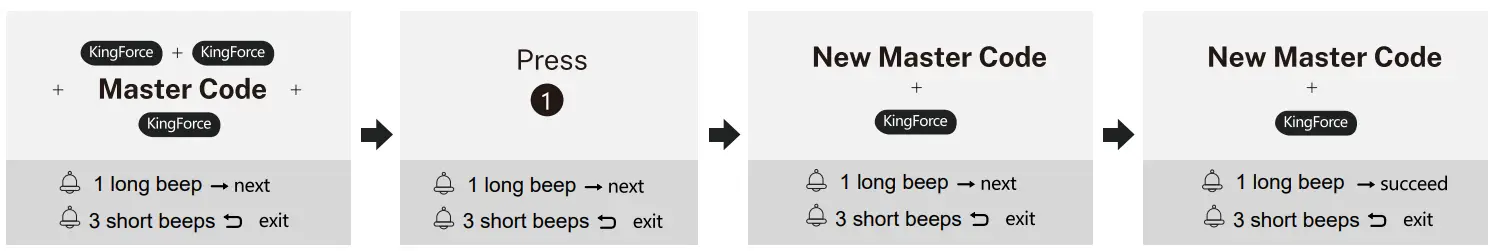

1. Change Master Code
    default master code:123456

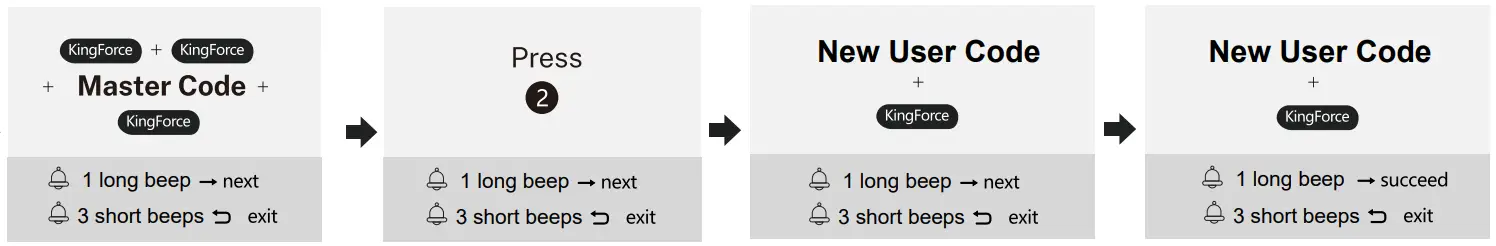

2. Add User Code

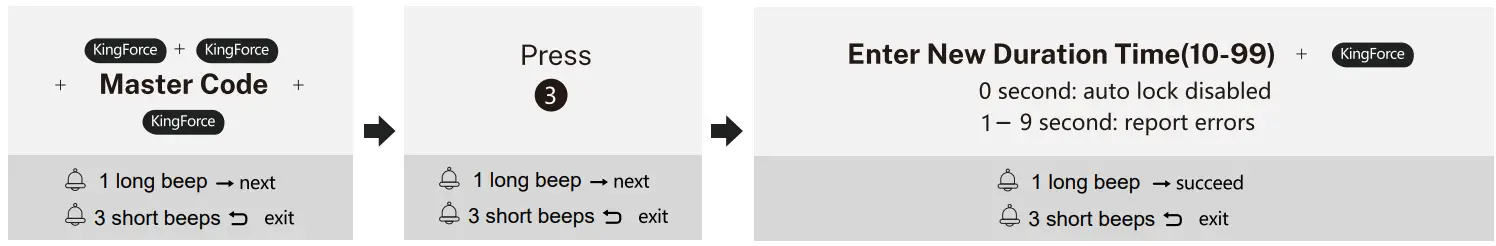

3. Set Auto Lock Time Delay

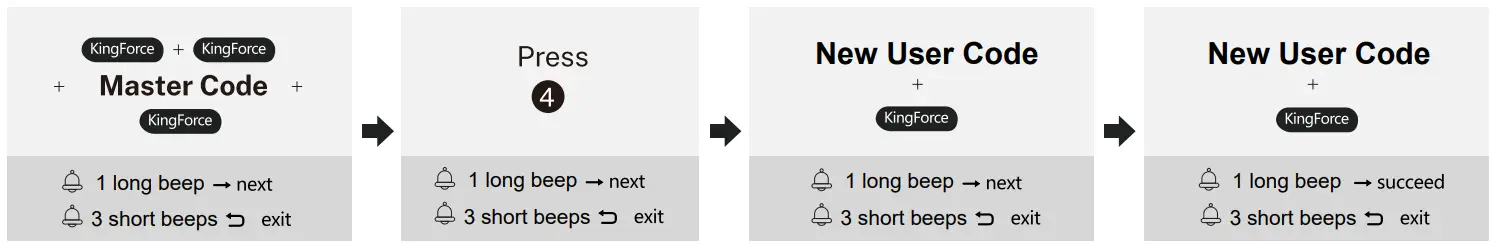

4. Add One-Time Code

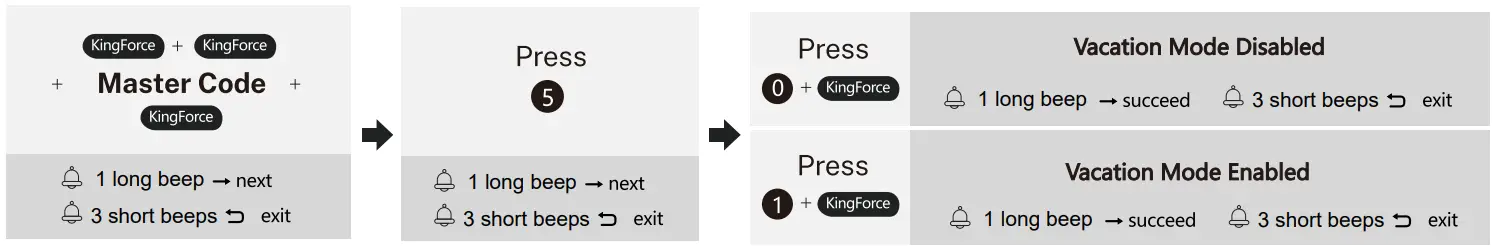

5. Vacation Mode
   Note: While Vacation mold enabled, if you use master code to unlock or enter management mode, then Vacation mode will be disabled.

6. Silent Mode and modulation

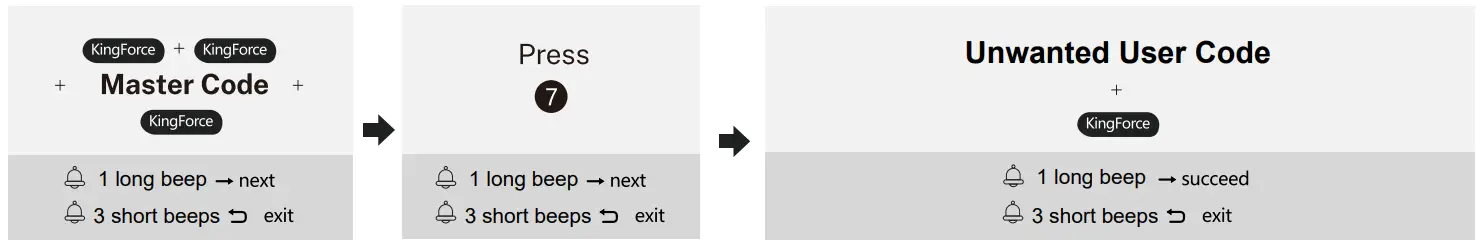

7. Delete User Code


Restore To Factory Default Settings

The default Master Code is

1. 0pen and unlock the door.
2. Take out one battery, then press random keypad to consume the rest power.

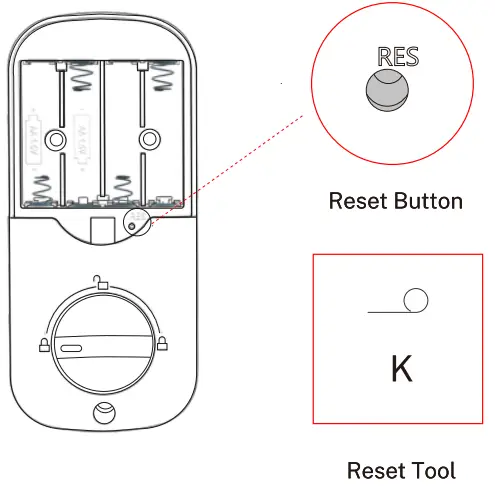

3. Press the Reset Button with the Reset tool (K), then keep pressing and place the battery back.
4. Keep holding the Reset Button until you hear 2 beeps. (If just hear one beep, please do it again from step 1)
