MIEBELY Mercedes Benz GT R Pro RC Car Skala 1/16 Instruksi Manual

Pambuka

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your MIEBELY Mercedes Benz GT R Pro RC Car. Please read all instructions carefully before use.

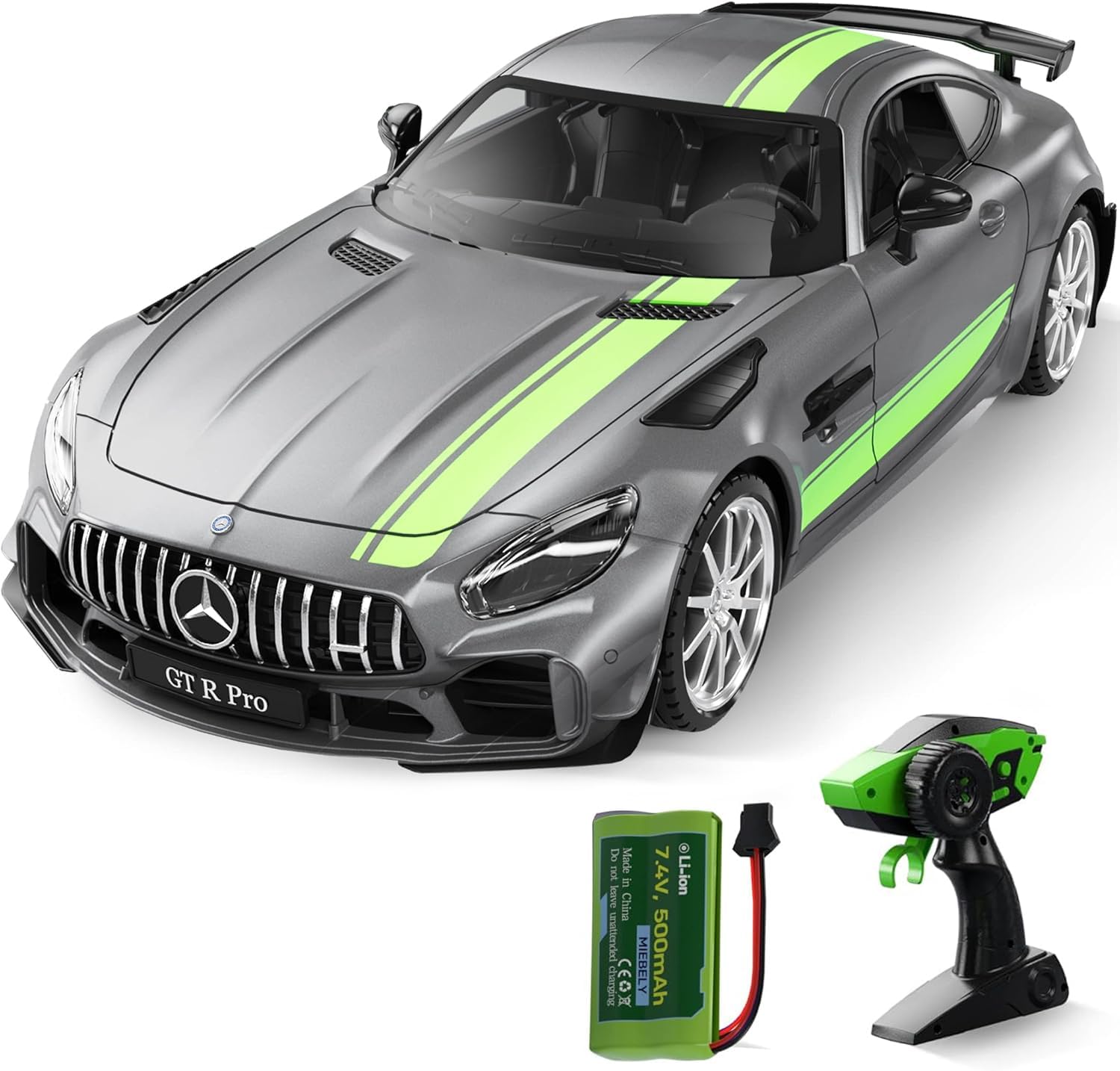

Image: MIEBELY Mercedes Benz GT R Pro RC Car, remote control, and rechargeable battery.

Apa ing Box

• Mobil remote control
• Rechargeable Battery (7.4V 500mAh Lithium Ion)
• Pangisi daya
• Kabel Pengisian Daya (USB)
• Remote Control

Image: The complete package contents, including the car, remote, battery, and charging accessories.

Setup

1. Ngisi Daya Baterai Mobil

1. Locate the 7.4V 500mAh Lithium Ion battery and the USB charging cable.
2. Sambungake baterei menyang kabel pangisi daya.
3. Plug the USB charging cable into a compatible USB power source (e.g., computer, USB wall adapter).
4. The indicator light on the charging cable will show the charging status. Refer to the charger's specific instructions for light indications (e.g., blinking red/green while charging, solid green when fully charged).
5. Charging typically takes a few hours. Do not overcharge the battery.

2. Nginstal Batere Mobil

1. Using the included screwdriver, open the battery compartment cover located on the underside of the car.
2. Connect the fully charged 7.4V 500mAh battery to the car's power connector. Ensure the connection is secure.
3. Carefully place the battery inside the compartment, ensuring wires are not pinched.
4. Nutup tutup kompartemen baterei lan aman nganggo sekrup.

3. Nginstal Baterei Remote Control

1. Using the included screwdriver, open the battery compartment cover on the back of the remote control.
2. Insert two AA batteries (not included) into the compartment, observing the correct polarity (+/-).
3. Nutup tutup kompartemen baterei lan aman nganggo sekrup.

4. Attaching the Steering Wheel to the Remote

1. The remote control features a detachable steering wheel.
2. Attach the steering wheel to either the left or right side of the remote control, depending on your preference (left-handed or right-handed operation).
3. Priksa manawa klik wis dipasang kanthi aman ing panggonane.

Image: The remote control showing the detachable steering wheel for ambidextrous use.

5. Masangake Remote Control

1. Turn on the RC car using the power switch on its underside.
2. Uripake remot kontrol nganggo saklar daya.
3. The remote and car should automatically pair. An indicator light on the remote will confirm successful pairing.

Instruksi Operasi

1. Kontrol dhasar

• Maju / Mbalik: Use the trigger on the remote control. Pull the trigger to move forward, push it to move in reverse.
• Ngiwa/Tengen: Gunakna setir ing remot kontrol kanggo muter mobil kiwa utawa tengen.

2. Steering Adjustment

If the car does not drive straight, use the steering trim adjuster located on the underside of the car to fine-tune the alignment. Turn the adjuster left or right until the car maintains a straight path.

Image: The underside of the car highlighting the direction spinner for fine-tuning steering.

3. Lights Functionality

• Lampu ngarep: The LED headlights illuminate when the car moves forward.
• Taillights/Brake Lights: The taillights illuminate when the car moves in reverse or brakes.

Gambar: Detil view of the car's functional LED headlights and taillights.

4. Recommended Operating Environment

This RC car is designed for smooth, flat surfaces. Avoid operating on rough terrain, grass, or gravel, as this may impede performance and cause damage.

Pangopènan

• Reresik: Wipe the car and remote control with a soft, dry cloth after each use. Avoid using water or harsh chemicals.
• Perawatan baterei: Always fully charge the car's battery before storage. Remove batteries from the remote control if not in use for extended periods. Store batteries in a cool, dry place.
• Panyimpenan: Store the car and remote control in a dry, cool environment away from direct sunlight and extreme temperatures.

Ngatasi masalah

• Mobil ora nanggapi: Ensure both the car and remote control are powered on and batteries are fully charged/fresh. Re-pair the remote control if necessary.
• Poor steering: Adjust the steering trim dial on the underside of the car. Check for any obstructions in the wheels.
• Range suda: Ensure there are no strong interference sources (e.g., other 2.4GHz devices) nearby.

Spesifikasi

• Merk: MIEBELY
• Model: 29716
• Skala: 1/16
• Ukuran produk: 11.25 x 5 x 3.27 inci
• Bobot barang: 2.14 kab
• Baterai Mobil: Lithium Ion 7.4V 500mAh (kalebu)
• Baterei Remote Control: 2 x AA (ora kalebu)
• Frekuensi kontrol: 2.4GHz
• Kacepetan paling dhuwur: Approximately 12 km/h (7.4 MPH)
• Umur sing Disaranake: 6 taun lan munggah

Image: Visual representation of the car's 1:16 scale and dimensions.

Warranty lan Dhukungan

Warranty and support information for this product is not explicitly detailed in the provided product data. Please refer to the manufacturer's official websitus web utawa hubungi layanan pelanggan kanggo syarat garansi lan pilihan dhukungan tartamtu.
