Pioneer DEH-S5100BT CD Receiver User Manual

1. Pambuka

This manual provides detailed instructions for the installation, operation, and maintenance of your Pioneer DEH-S5100BT CD Receiver. The DEH-S5100BT is designed to integrate multimedia capabilities into a single-DIN receiver, featuring direct access buttons for navigation and bass boost, and a dual-function volume knob optimized for the Pioneer Smart Sync app. It also includes a USB auto switch feature, allowing the user to choose between using a connected phone as an audio source or solely for charging.

Fitur utama:

• Kompatibilitas Android: Seamless integration with Android devices.
• Pandora and Spotify Support: Direct control and streaming from popular music services.
• Built-in Bluetooth: Kanggo nelpon tanpa nyekel lan streaming audio.
• Kustomisasi warna: Personalize display illumination colors.
• MIXTRAX: Creates a non-stop mix with DJ-style effects.

2. Apa ing Box

Priksa manawa kabeh komponen wis ana sadurunge nerusake instalasi.

• CD Receiver Unit
• Wiring Harness
• Instalasi Hardware
• Instruksi Manual
• Faceplate Case (for removable faceplate)
• Microphone (for hands-free calling)
• Tombol mbusak (2)

3. Persiyapan lan Instalasi

Proper installation is crucial for optimal performance. If you are unsure about any steps, it is recommended to consult a professional installer.

3.1 Instalasi Liwatview

The DEH-S5100BT is designed for single-DIN dashboard openings. Ensure your vehicle's dashboard can accommodate this size. A vehicle-specific wiring harness adapter (sold separately) is highly recommended to simplify wiring connections and avoid cutting factory wires.

• Sambungan daya: Connect the yellow wire to a constant 12V supply, the red wire to an accessory 12V supply (switched with ignition), and the black wire to ground.
• Sambungan Speaker: Connect speaker wires according to the wiring diagram provided with the unit and your vehicle's wiring. Ensure correct polarity.
• Sambungan antena: Sambungake kabel antena kendaraan menyang panrima.
• Sambungan mikropon: Plug the supplied microphone into the dedicated input jack on the rear of the receiver and route it to a suitable location (e.g., sun visor) for clear hands-free calling.

Refer to the detailed wiring diagram in the separate installation guide for specific connections.

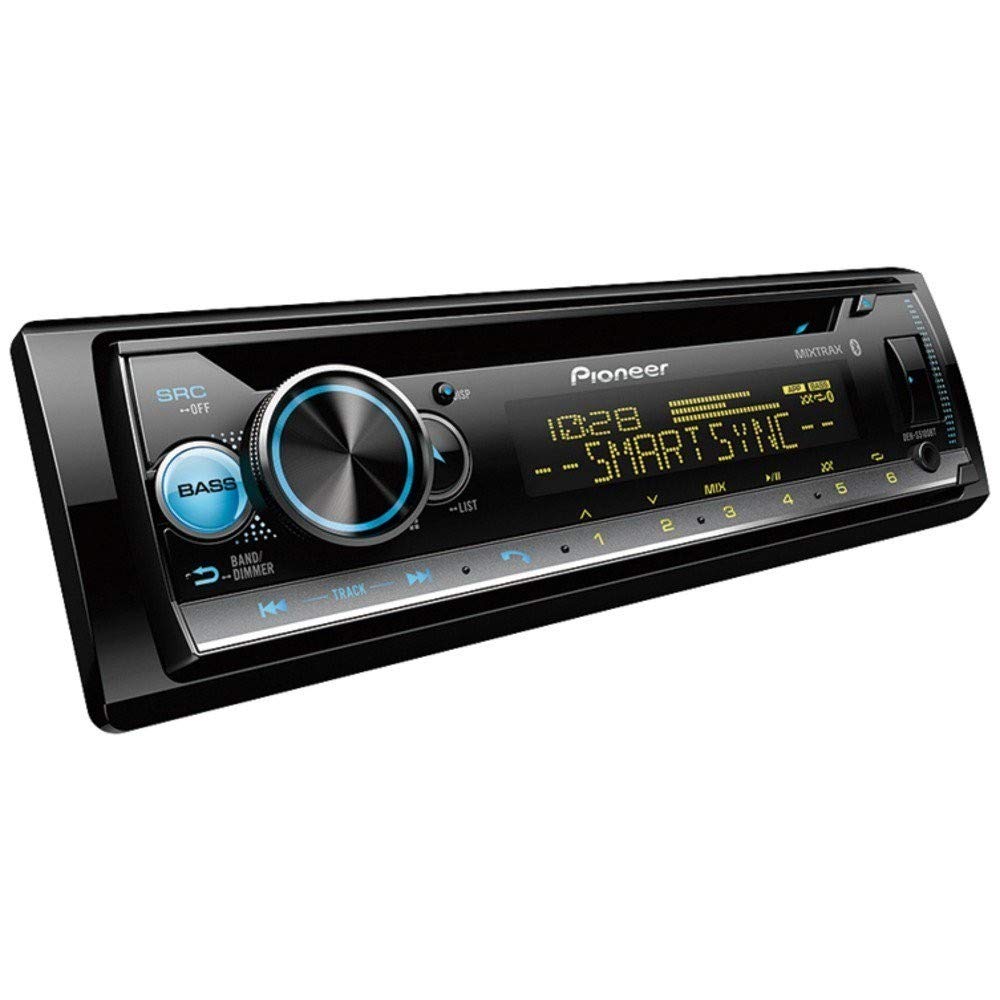

Gambar 1: Ngarep view of the Pioneer DEH-S5100BT CD Receiver, showing the display, control knob, and various buttons.

3.2 Daya wiwitan lan Setelan dhasar

1. Sawisé dipasang, uripaké kontak kendaraanmu.
2. Tekan ing SRC (Source) button to power on the receiver.
3. Adjust the volume using the large rotary knob.
4. Set the clock and initial audio preferences as prompted or via the system menu.

3.3 Pioneer Smart Sync App Setup

The Pioneer Smart Sync app enhances the receiver's functionality by providing an intuitive interface for controlling audio, navigation, and communication features from your smartphone.

1. Download the "Pioneer Smart Sync" app from your smartphone's app store (Google Play Store for Android, Apple App Store for iOS).
2. Aktifake Bluetooth ing smartphone sampeyan.
3. On the DEH-S5100BT, navigate to the Bluetooth pairing menu.
4. Select your smartphone from the list of available devices and confirm pairing.
5. Launch the Pioneer Smart Sync app on your smartphone. The app will automatically connect to the receiver.
6. Once connected, you can use the app to control various receiver functions, including audio settings, source selection, and app-based navigation.

4. Instruksi Operasi

4.1 Kontrol dhasar

• Tombol SRC (Sumber): Press to cycle through available audio sources (Tuner, CD, USB, Bluetooth Audio, AUX). Press and hold to turn the unit off.
• Tombol Volume: Rotate to adjust the volume level. Press to access the main menu for audio settings and system options.
• Band/ESC Button: In tuner mode, press to change radio bands (FM1, FM2, FM3, AM). In menu mode, press to exit the current menu.
• Forward/Reverse Buttons (<< / >>): Skip tracks, fast forward/rewind, or tune radio stations.
• Tombol Akses Langsung: Dedicated buttons for functions like Navigation (when Smart Sync is active) and Bass Boost.

4.2 Operasi Bluetooth

The built-in Bluetooth allows for hands-free calling and wireless audio streaming.

• pasangan: Refer to Section 3.3 for initial pairing. Once paired, the receiver will automatically connect to your phone when in range.
• Telpon Hands-Free:
  1. When a call comes in, the display will show the caller ID.
  2. Tekan ing TELPON button (or the green call button on the unit) to answer.
  3. Tekan ing TELPON button (or the red end call button) to end a call.
  4. Use the volume knob to adjust call volume.
• Streaming Audio Bluetooth:
  1. Select "Bluetooth Audio" as the source.
  2. Play music from your paired smartphone.
  3. Use the receiver's forward/reverse buttons to skip tracks.

4.3 Puter maneh CD

1. Insert a CD into the disc slot with the label side up. The receiver will automatically switch to the CD source and begin playback.
2. Use the forward/reverse buttons to skip tracks.
3. Tekan ing ngaso tombol kanggo mungkasi muter maneh kanggo sementara.
4. Tekan ing EJECT tombol kanggo mbusak CD.

4.4 USB Device Playback

Connect a USB storage device (e.g., USB flash drive) or a compatible smartphone via the USB port.

• Insert the USB device into the USB port. The receiver will automatically detect it and switch to the USB source.
• If a smartphone is connected, the USB auto switch feature allows you to choose whether to use the phone as a source or just for charging.
• Use the forward/reverse buttons to navigate tracks.
• The receiver supports WAV and WMA audio formats.

4.5 Operasi Radio

• Pilih "Tuner" minangka sumber.
• Tekan ing BAND tombol kanggo ngalih ing antarane band FM1, FM2, FM3, lan AM.
• Tuning Manual: Press and hold the forward/reverse buttons to manually tune to a station.
• Golek Tuning: Briefly press the forward/reverse buttons to automatically seek the next strong station.
• Stasiun prasetel:
  1. To store a station: Tune to the desired station, then press and hold one of the preset number buttons (1-6) until you hear a beep.
  2. To recall a station: Briefly press the corresponding preset number button.

4.6 Audio Settings and MIXTRAX

• Accessing Audio Menu: Press the volume knob to enter the main menu, then navigate to "Audio Settings."
• Ekualiser (EQ): Adjust preset EQ curves or customize a user-defined EQ.
• Nguatake Bass: Use the dedicated direct access button or the audio menu to enhance low frequencies.
• Fader / Balance: Nyetel distribusi swara antarane speaker ngarep / mburi lan kiwa / tengen.
• Kontrol Subwoofer: If a subwoofer is connected, adjust its output level and crossover frequency.
• MIXTRAX: When playing music from a USB device or CD, activate MIXTRAX to create a non-stop mix with various DJ-style effects and club-like illumination. Press the MIXTRAX tombol kanggo ngaktifake / mateni.

4.7 Color Customization

The display and button illumination colors can be customized.

1. Press the volume knob to enter the main menu.
2. Navigate to "System Settings" or "Illumination Settings."
3. Select "Color" or "Display Color" to choose from a variety of preset colors or create a custom color.

5. Pangopènan

• Reresik Unit: Gunakake kain sing alus lan garing kanggo ngusap panel ngarep. Kanggo rereget wangkal, dampen kain karo banyu. Aja nggunakake pembersih abrasif, lilin, utawa pelarut.
• Ngresiki Slot Disk: Aja nglebokake obyek manca menyang slot disk. Yen disk macet, deleng bagean ngatasi masalah.
• Faceplate Care: When removing the faceplate, store it in the supplied protective case to prevent scratches and damage.

6. Ngatasi masalah

If problems persist, consult your dealer or an authorized Pioneer service center.

7. Spesifikasi

8. Warranty lan Dhukungan

8.1 Informasi babar pisan

The Pioneer DEH-S5100BT CD Receiver comes with a SATU TAHUN limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the warranty card included with your product or visit the official Pioneer websitus.

8.2 Dhukungan Pelanggan

For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact Pioneer customer support or visit their official websitus:

• Resmi Pioneer Websitus: www.pioneerelectronics.com
• Dhukungan Online: Access FAQs, software updates, and additional documentation.

When contacting support, please have your model number (DEH-S5100BT) and purchase date readily available.
