James C77 Bluetooth FM Transmitter User Manual
This Bluetooth card wireless FM lets our stream music and calls directly from your device to your car’s FM stereo system, The built-in Bluetooth V6.3 chip provides a clear hands free call function Siri google voice assistant, and Bass boss for enhanced music stereo audio performance. It aulos features dual charging ports which will greatly save deuce’s charging time.
Please read the User manual carefully before using it. Hope this device makes your driving more interesting and safer.
Package Contents:
User Manual
Warranty Policy

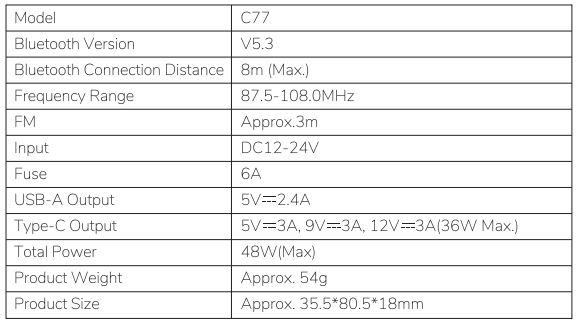

Specifications:

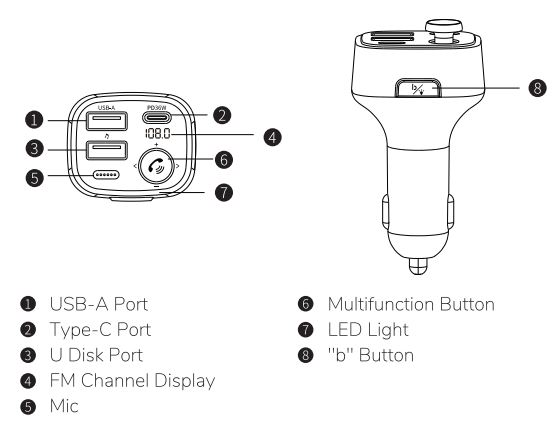

Product Overview:

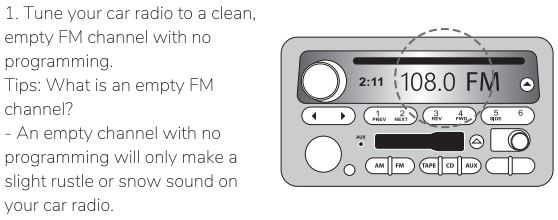

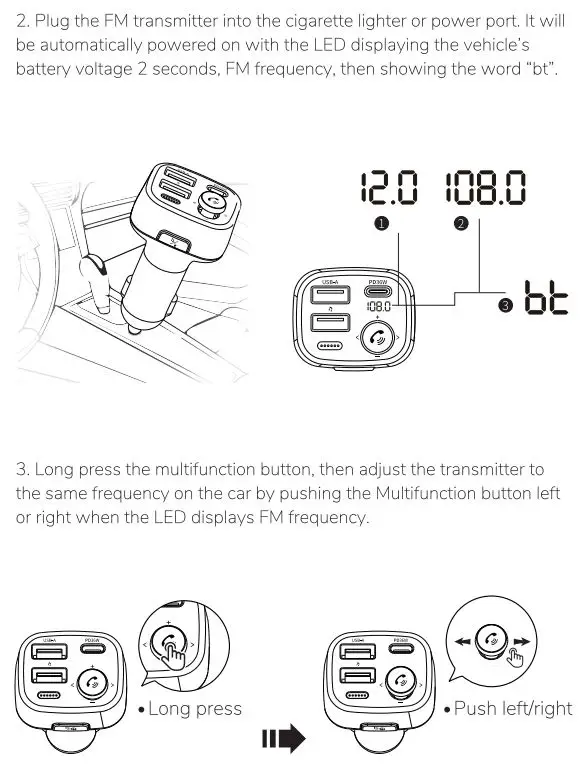

How to use:
FM
Tips for the best audio quality:
- Find the idle frequency with minimal interference.
- Volume control: adjust the volume for the car radio to 1/3 or 1/2. but not exceed 2/3: the phone to 2/3 or 4/5 but not to full volume.

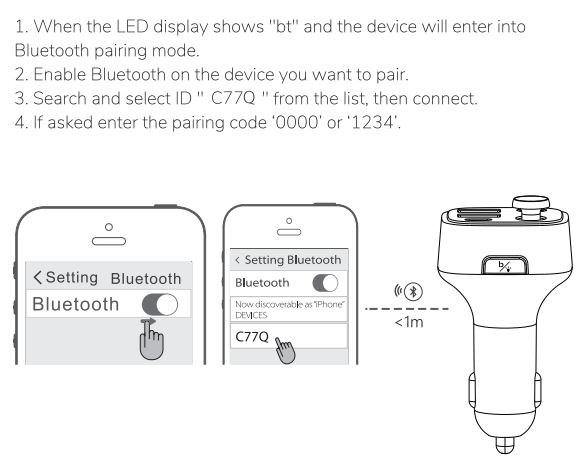

Bluetooth Pairing

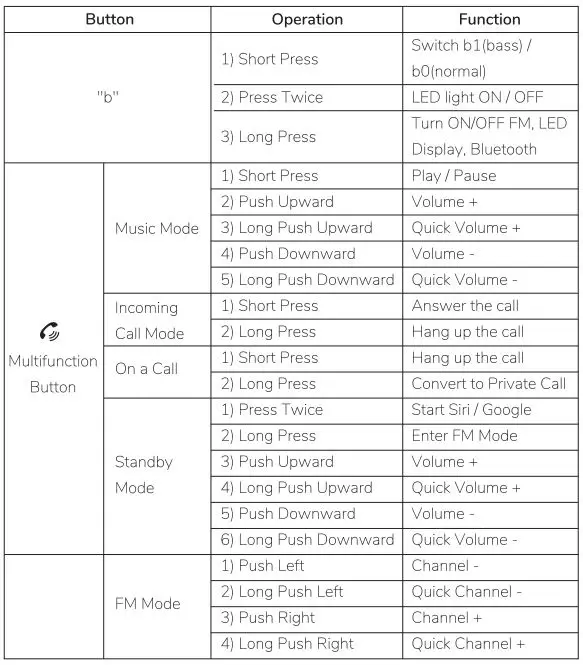

Function Introduction:
Incoming call status
A number broadcast in English when there is incoming call.
Music Status
When connect it to the Bluetooth or U Disk, you can play the music.
Low voltage Status
When the Car’s battery voltage is less then 12V, the display will flash to remind you. However there is no influence on the function of Bluetooth or U Disk.
Charging mode
When this car Bluetooth transmitter is powered by a car lighter socket, connecting the PD Type-C port or USB-A port to your mobile phones with a required cable. It will serve as a mobile phone charger.
Note: Voltage outputs are dual port fast charging up to 48W max.
Caution:
- Please do not use the product in severe high temperatures. humidity. dusty or corrosive environments.
- Please remove the product form the cigarette lighter port when not in use for a long time.
- Never disassemble the product without due permission. otherwise the warranty will be invalid.
- Do not knock or drop this product to avoid internal damage.
- Dispose of this product as per local law and regulations.
Shenzhen James Audio Technology co.,Ltd
Address:4the Floor a-building, No.2 Guiyuan Road, Guihua Community.
Guanla Town, Longhua New District, Shenzhen China
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
-This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
