isolution OPS-G5UPGRADE Android EDLA Upgrade Module
Specifications
- CPU: RK3583 dual-core Cortex-A76 and quad-core Cortex-A55 ARM
- Memory: LPDDR4X 8GB
- Storage: EMMC 128GB or SSD
- Network: WI-FI 802.11 b/g/n/ac/ax, Bluetooth 5.0, Gigabit LAN Ethernet
- Interfaces: USB 3.0*3, Type-C*1, HDMI IN*1, HDMI OUT*1
- Power: 12~19V, current 3A Max working power 30W
Overview
- THE OPS_3583_C_08128 ANDROID™ SOCKET IN OPS (OPEN PLUGGABLE SPECIFICATION)
- PC IS AN IDEAL INTEGRATED SOLUTION FOR SMART WHITEBOARD AND SMART MEETING ROOM FUNCTIONALITY ON IFPD.
- OPS_3583_C_08128 SUPPORTS HD AUDIO AND VIDEO UP TO 4K60.
- PRE-INSTALLED ANDROID 13 EDLA,WITH WIRELESS WIFI 6 DUAL BAND AND BLUETOOTH, A POWERFUL PROCESSOR WITH DUAL-CORE A76 +QUAD-CORE A55,UP TO 2GHZ,AND MAIL-G610 MC2 GPU，SUPPORT 8GB LPDDR4X MEMORY.
- CONNECTIVITY OPTIONS INCLUDING HDMI IN,HDMI OUT,USB C PORT,USB 3.0 PORTS, AND GIGABIT LAN RJ45 ENSURE THAT YOU STAY CONNECTED TO ANY AND ALL PERIPHERAL DEVICES.
- POWERFUL SYSTEM WITH THE ROCKCHIPS PROCESSOR, 8GB LPDDR4X MEMORY, AND 128GB EMMC STORAGE OR SSD STORAGE. COMPLETE NETWORK SUPPORT WIFI 6, BLUETOOTH 5.0, AND GIGABIT LAN ETHERNET.
Hardware Context
| CPU | RK3583 dual-core Cortex-A76 and quad-core Cortex-A55 ARM, Mail-G610 MC2 GPU |
| Frequency | 2x Cortex A76@2GHz
4x Cortex A55@1.8GHz |
| Memory | LPDDR4X 8GB |
| Storage | EMMC 128GB, Support for M.2 interface SSD expansion（Only NVMe is supported） |
| Power demand | 12~19V,current≥3A； Max working power 30W |
| Network | Have the RJ45 interface, support 1000M Ethernet |
| Have the WIFI module, support WI-FI 802.11 b/g/n/ac/ax | |
| Have the BT module, support BT 5.0 | |
| Interface Device | USB 3.0*3, Type-C*1（DP 1.2 out+USB 2.0 device or USB 3.0 host） |
| Line out *1, Mic in *1 | |
| HDMI IN *1, HDMI OUT *1 | |
| Light | Working indicator light, Power indicator light |
| Button | Power button, Reset button |
| System | Android 13 |
| Software
Function |
Web browsing, E-mail ,and resource manager |
| Language | Support multiple languages |
HDMI Timing
HDMI COMMON PC timing
| Format | Resolution | H.Freq(KHz) | V.Freq(Hz) | Standard |
| Format | Resolution | H.Freq(KHz) | V.Freq(Hz) | Standard |
| 31.5 | 60 | |||
| VGA | 640×480 | 37.9 | 72 | VESA |
| 37.5 | 75 | |||
| 37.9 | 60 | |||
| SVGA | 800×600 | 48.1 | 72 | VESA |
| 46.9 | 75 | |||
| 48.4 | 60 | |||
| 1024×768 | 56.5 | 70 | ||
| XGA | 60 | 75 | VESA | |
| 1152×864 | 67.5 | 75 | ||
| 1280×960 | 60 | 60 | ||
| SXGA | 1280×1024 | 64 | 60 | VESA |
| 80 | 75 | |||
| SXGA | 1360×768 | 37.5 | 60 | |
| WUXGA | 1920×1080 | 37.5 | 60 |
hdmi common dtv timing
| Format | Resolution | V.Freq(Hz) |
| 480i | 720×480 | 60 |
| 480p | 720×480 | 60 |
| 576i | 720×576 | 50 |
| 576p | 720×576 | 50 |
| 720p | 1280×720 | 50
60 |
| 1080i | 1920×1080 | 50
60 |
| 1080p | 1920×1080 | 50
60 |
4K TIMING
|
Pixel clock=300MHZ |
3840*2160 | 29.97Hz/R444 |
| 3840*2160 | 30Hz/R444 | |
| 3840*2160 | 25Hz/R444 | |
| 3840*2160 | 23.98Hz/R444 | |
| 3840*2160 | 24Hz/R444 | |
| 4096*2160 | 24Hz/R444 |
| 3840*2160 | 50Hz/Y420 | |
| 3840*2160 | 59Hz/Y420 | |
| 3840*2160 | 60Hz/Y420 | |
|
Pixel clock=600MHZ |
3840*2160 | 50Hz/R444 |
| 3840*2160 | 59Hz/R444 | |
| 3840*2160 | 60Hz/R444 | |
| 4096*2160 | 50Hz/R444 | |
| 4096*2160 | 59Hz/R444 | |
| 4096*2160 | 60Hz/R444 |

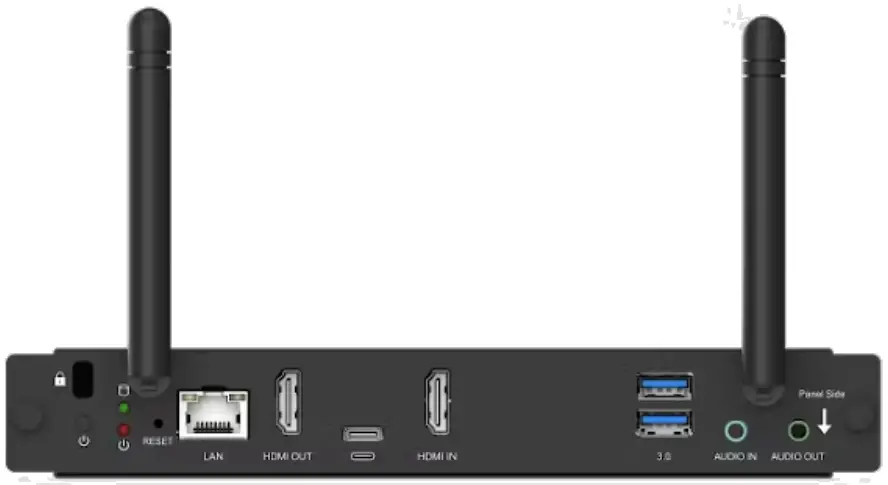

Product Photograph
The pictures are for reference only, please in kind prev

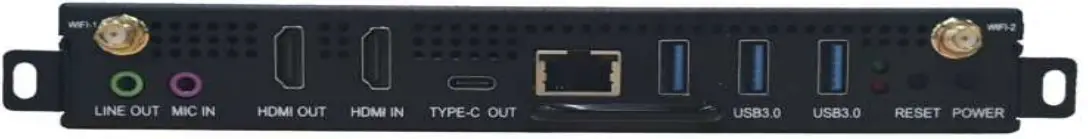

| Front view |  |

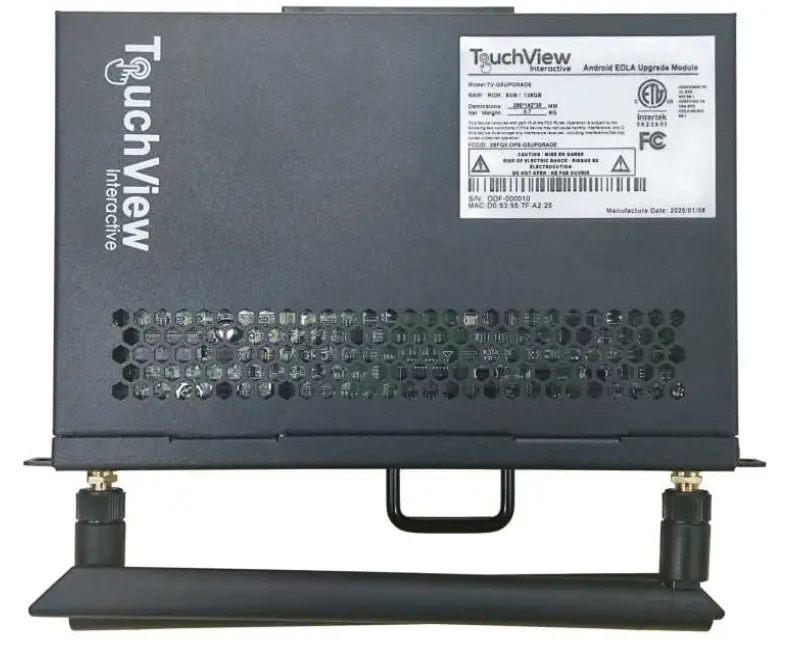

| top view |  |

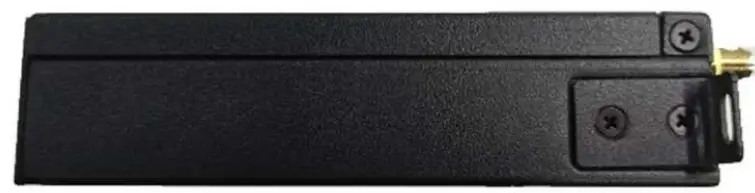

| side view |  |

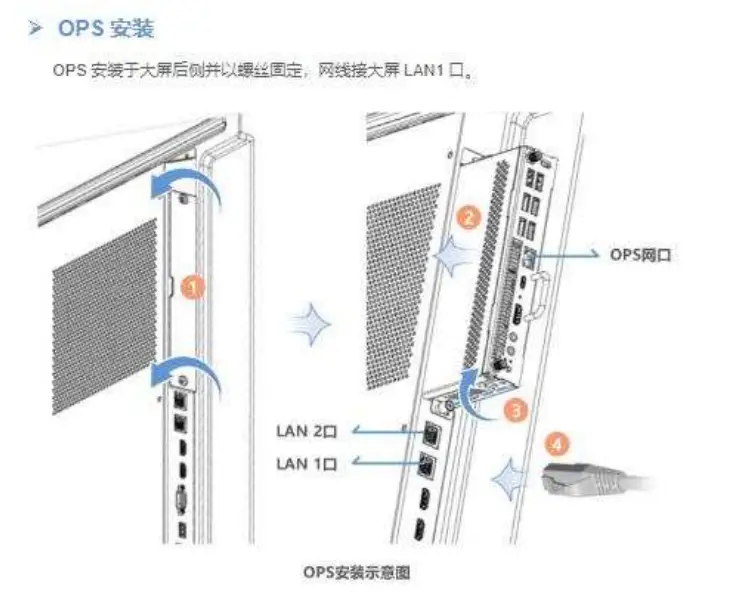

Product dimensions and installation diagram

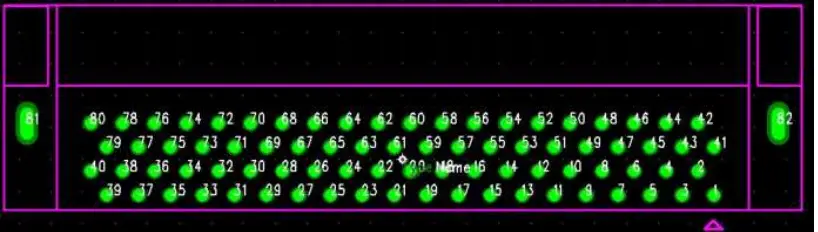

OPS Slot Definition
 |
|||
| NO. | describe | NO. | describe |
| 1 | NC | 41 | NC |
| 2 | NC | 42 | NC |
| 3 | GND | 43 | NC |
| 4 | NC | 44 | NC |
| 5 | NC | 45 | NC |
| 6 | GND | 46 | NC |
| 7 | NC | 47 | NC |
| 8 | NC | 48 | NC |
| 9 | GND | 49 | NC |
| 10 | NC | 50 | NC |
| 11 | NC | 51 | UART_RX_3V3 |
| 12 | GND | 52 | UART_TX_3V3 |
| 13 | NC | 53 | GND |
| 14 | NC | 54 | USB30_SSRX2- |
| 15 | NC | 55 | USB30_SSRX2+ |
| 16 | GND | 56 | GND |
| 17 | HDMITX_CLK- | 57 | USB30_SSTX2- |
| 18 | HDMITX_CLK+ | 58 | USB30_SSTX2+ |
| 19 | GND | 59 | GND |
| 20 | HDMITX_D0- | 60 | USB_D2- |
| 21 | HDMITX_D0+ | 61 | USB_D2+ |
| 22 | GND | 62 | GND |
| 23 | HDMITX_D1- | 63 | OPS_USB_D1- |
| 24 | HDMITX_D1+ | 64 | OPS_USB_D1+ |
| 25 | GND | 65 | GND |
| 26 | HDMITX_D2- | 66 | OPS_USB_D0- |
| 27 | HDMITX_D2+ | 67 | OPS_USB_D0+ |
| 28 | GND | 68 | GND |
| 29 | HDMITX_SDA | 69 | NC |
| 30 | HDMITX_SCL | 70 | NC |
| 31 | HDMITX_HPD_IN | 71 | HDMI_TX_CEC |
| 32 | GND | 72 | OPS_DET |
| 33 | +18V_IN | 73 | OPS_ON# |
| 34 | +18V_IN | 74 | OPS_OK# |
| 35 | +18V_IN | 75 | GND |
| 36 | +18V_IN | 76 | GND |
| 37 | +18V_IN | 77 | GND |
| 38 | +18V_IN | 78 | GND |
| 39 | +18V_IN | 79 | GND |
| 40 | +18V_IN | 80 | GND |
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
ATTENTION
- FOR SAFETY ISSUE, PLEASE KEEP THE TERMINAL AT LEAST 8.0MM AWAY FROM METAL PARTS OF THE MACHINE .
- A ESD SHIELD BAG IS OFFERED TO PROTECT THE PRODUCT FROM ELECTROSTATIC OR MAGNETIC SHOCK , PLEASE TAKE CARE OF ESD AT ANYTIME.
- KEEP THE BOX SURFACE CLEAN. CHECK THE APPEARANCE OF THE BOX IF THERE IS ANY DEFECTIVE PARTS, SUCH AS DILAPIDATED, WEIGHTY NICK, ETC.
- KEEP THE BOX AWAY FROM CONDUCTOR WHEN IT IS WORKING.
- DON’T PRESS, DISTORT OR DISASSEMBLE THE BOARD.。
- DON’T SWITCH ON THE POWER SUPPLY BEFORE PANEL IS CORRECTLY CONNECTED.
ENVIRONMENTAL CHARACTERISTICS
- Temperature
Operating: 0℃to 40℃ Store: -20℃ to 60℃ - Humidity
Operating: 10% to 90% (non-condensing) Store: 5% to 95% (non-condensing) - Altitude
Operating: 10,000 ft.(max) Store: 20,000ft.(max)
Packaging
Inner box

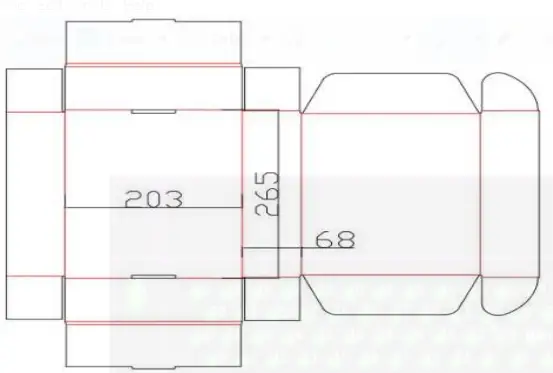

Three layers of E-shaped corrugated, with a thickness of approximately 1.5mm. The drawings are as follows
Outer box
It should conform to GB13023《corrugated board》、GB13024《boxboard》rules (the Drawings’rules is based on the drawing records)
| The size of the PE bag | The size of box | Company） | Packing list | |||
| Long(cm) | Wide(cm) | Long(cm) | Wide(cm) | High(cm) | ||
|
30 |
20 |
55 |
42.7 |
16 |
PCS |
8 |
|
use |
board |
Corrugated cord |
kgf/cm2
（Bursting strength kgf/cm2） |
Edge pressure strength
kgf/cm |
kg*cm Puncture strength
kg*cm |
Water content% |
| box | K=A | BC |
12 |
8 |
90 |
9%±1 |
Product weight
| OPS complete machine | Inner box/1 OPS complete machine | Outer box / 8 inner boxes |
| 0.7kg | 0.84kg | 7.5kg |
Frequently Asked Questions (FAQ)
- Q: What are the language options supported by the device?
A: The device supports multiple languages for user interface and interactions. - Q: What is the maximum resolution supported by the HDMI output?
A: The device supports resolutions up to 4K60 for HDMI output. - Q: What are the network connectivity options available on the device?
A: The device supports WiFi 6, Bluetooth 5.0, and Gigabit LAN Ethernet for network connectivity.
