Product No: CF4U
CONNECTWELL CF4U FUSE TERMINAL BLOCK (ENCLOSED)
SCREW CLAMP 0.2-4mm² 800V/6.3A

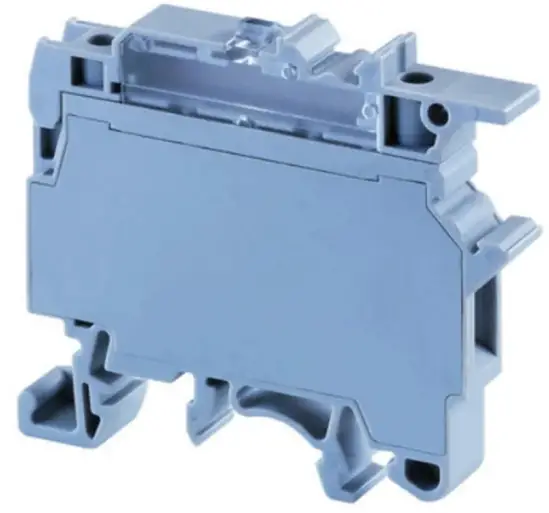

CF4U Fuse Terminal Block
INSTALLATION & ACCESSOR IES > WIR ING TERMINALS & DUCTS > FUSE TERMINAL BLOCKS
| General Information | |
| Brand | CONNECTWELL |
| Product Type | Single Level |
| Technical Attributes | |
| Rated Current (A) | 6.3 |
| Rated Voltage (V) | 800 |
| Tightening Torque (Nm) | 0.5 |
| Physical Attributes | |
| Colour | Grey |
| Conductor Cross Section – Stranded (mm²) | 0.2 – 4 |
| Mounting Type | DIN Rail |
| Screw Size | M3 |
| Dimensions | |
| Dimensions (mm) | 57L x 8W x 50.3H |
| Resources | |
| Product catalogue (Flipbook) | Download from here |
1300 556 601
ipd.com.au
20-02-2024
