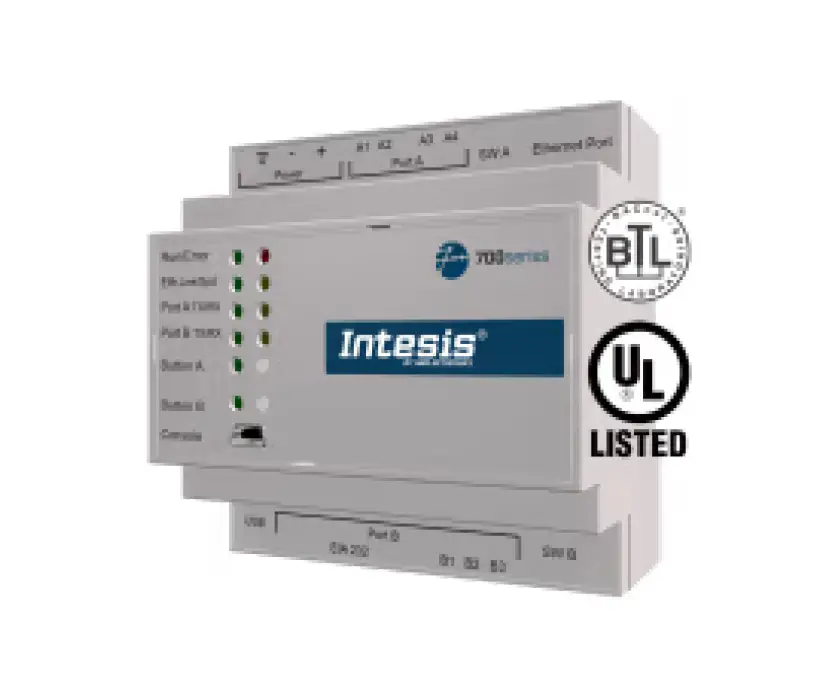

Intesis IN7004851K20000 MS-TP Client to ASCII IP and ASCII Serial Server
OWNER’S MANUAL
BACnet/IP & MS/TP Client to ASCII IP & ASCII Serial Server Application
Item number: IN7004851K20000
Integrate any BACnet MS/TP or BACnet/IP server device with an ASCII BMS or any ASCII IP or ASCII serial controller. This integration aims to make BACnet objects, data, and resources accessible from an ASCII-based control system or device as if they were a part of the ASCII system and vice versa.
BACnet/IP & MS/TP to ASCII IP & Serial – 1200 points
Features and benefits
Support for both BACnet/IP and BACnet MS/TP
The gateway supports both BACnet/IP and BACnet MS/TP protocols.
Easy integra on with Intesis MAPS
The integra on process is quickly and easily managed using the Intesis MAPS configura on tool.
Configura on tool and gateway automa c updates
Both the Intesis MAPS configura on tool and the gateway’s firmware can receive automa c updates.
ASCII bus automa c write request on value change
When an ASCII value changes, the gateway automa cally sends a write request to the ASCII bus.
BACnet devices scan op on with BACnet Explorer
It is possible to scan the BACnet network to discover devices using the BACnet Explorer feature.
Commissioning-friendly approach with Intesis MAPS Templates can be imported and reused as o?en as needed, significantly reducing commissioning me.
ASCII Serial (232/485) and ASCII IP support
The gateway fully supports both ASCII IP and ASCII Serial (232/485).
Personalized ASCII strings use
It is possible to use personalized ASCII strings on this gateway.
BACnet/IP & MS/TP Client to ASCII IP & ASCII Serial Server Application
BACnet/IP & MS/TP Client to ASCII IP & ASCII Serial Server Application
BACnet/IP & MS/TP Client to ASCII IP & ASCII Serial Server Application

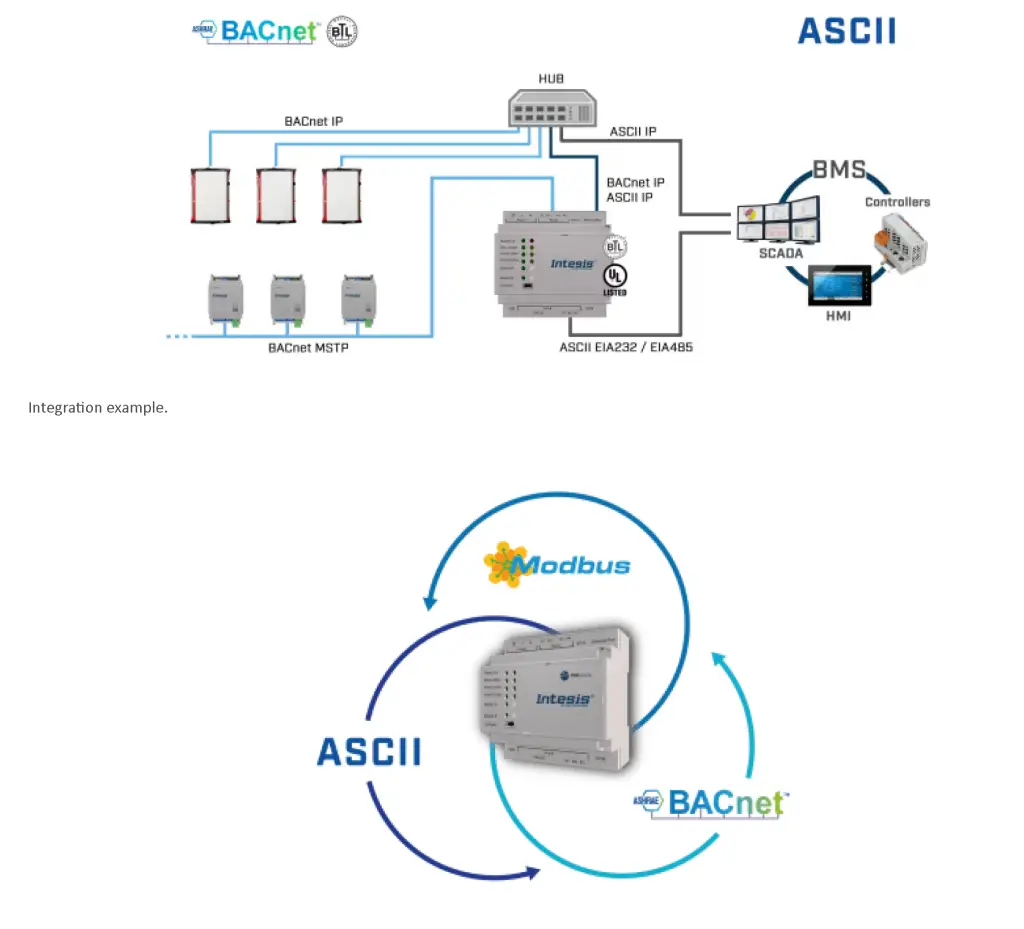

Use Case
Use Intesis MAPS to change the protocol: BACnet, Modbus, KNX, or Home Automa on

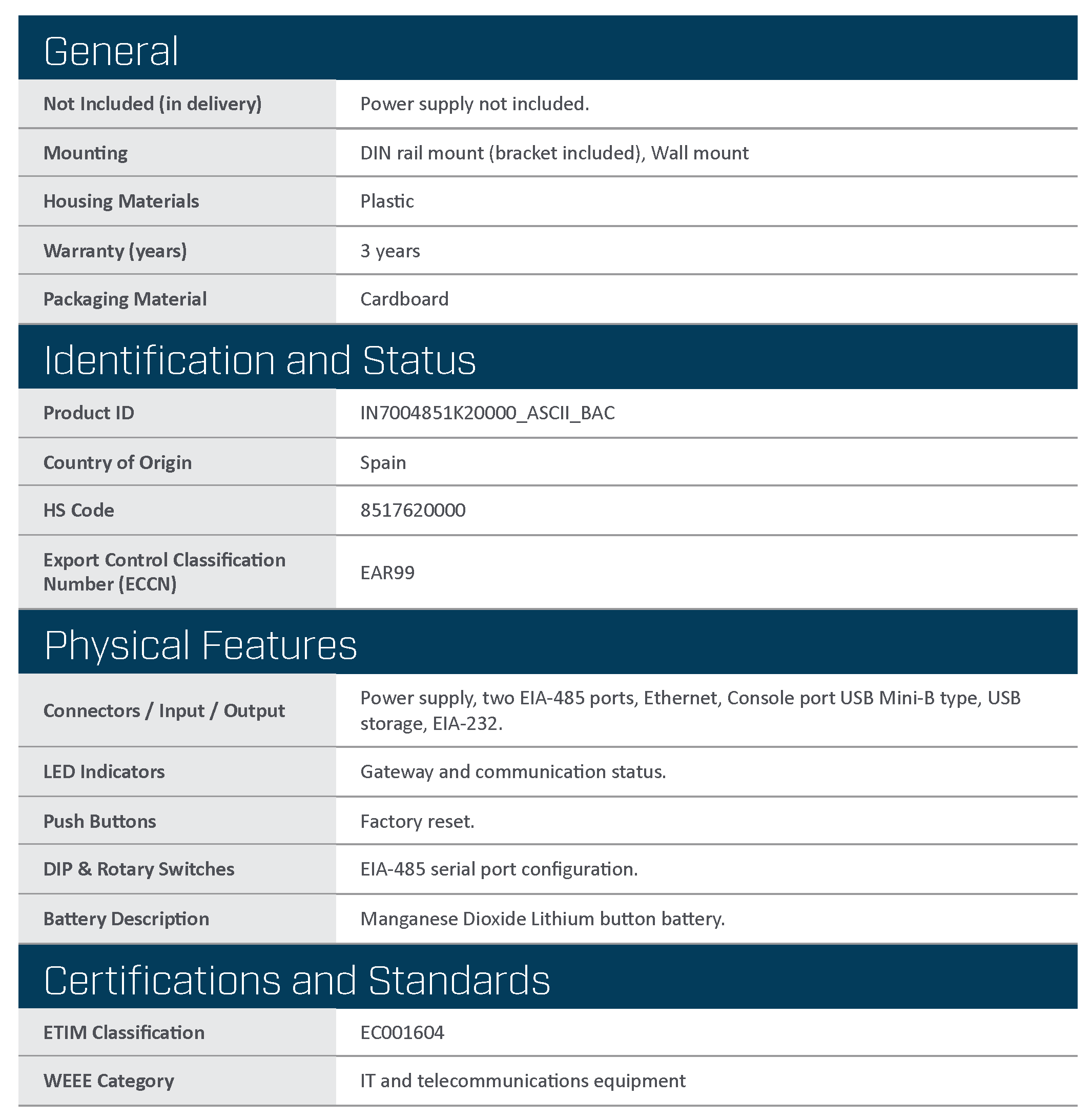

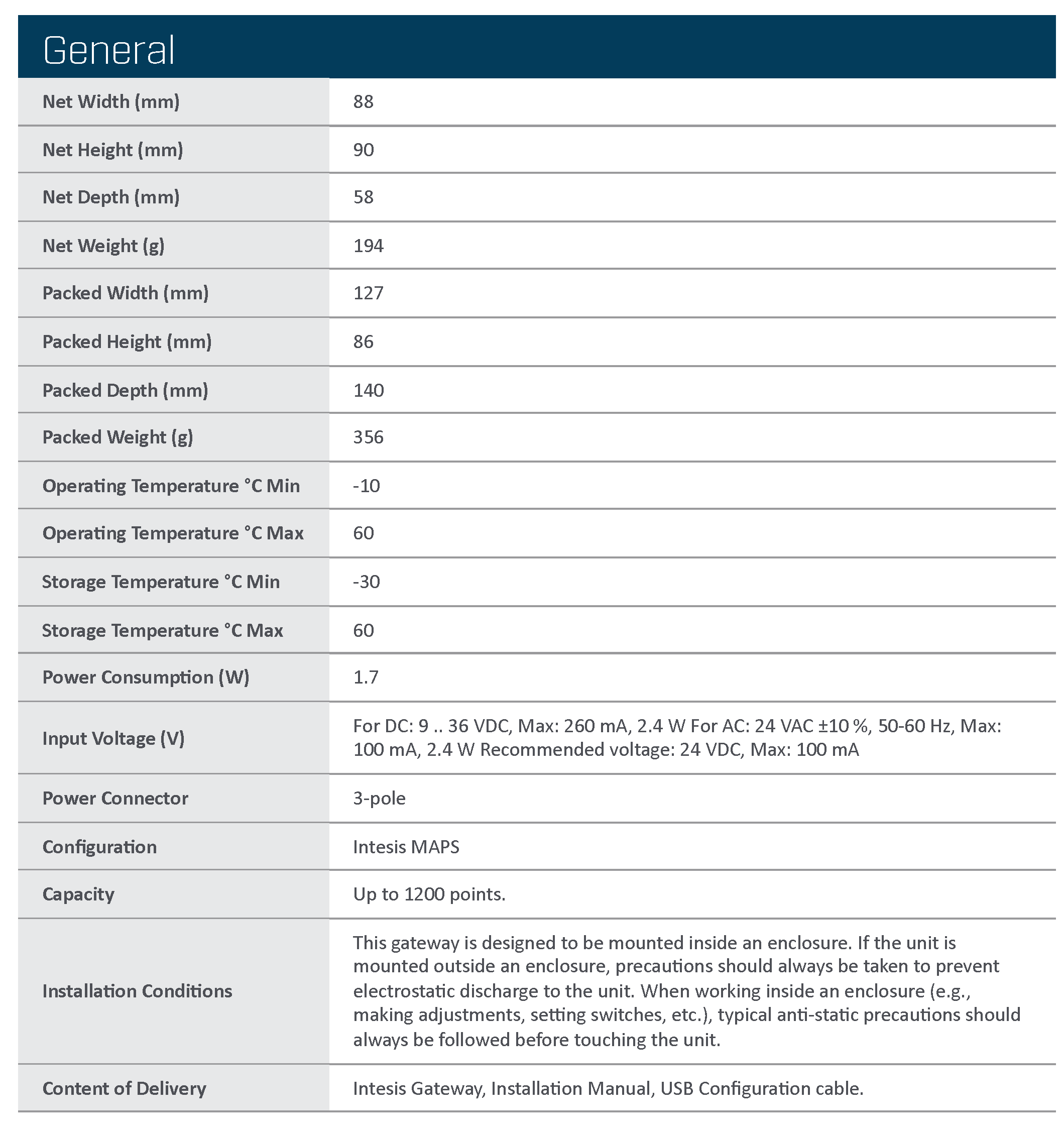

Specifications
- Item number: IN7004851K20000
- Integrate any BACnet MS/TP or BACnet/IP server device with an
ASCII BMS or any ASCII IP or ASCII serial controller. - 1200 points
- Commissioning-friendly approach with Intesis MAPS
- Supports ASCII Serial (232/485) and ASCII IP
- Personalized ASCII strings use
Frequently Asked Questions (FAQ)
Q: Does the gateway support both BACnet/IP and BACnet MS/TP devices?
A: Yes, the gateway can integrate both BACnet/IP and BACnet MS/TP server devices.
Q: Can personalized ASCII strings be used with this gateway?
A: Yes, personalized ASCII strings can be utilized on this gateway.
