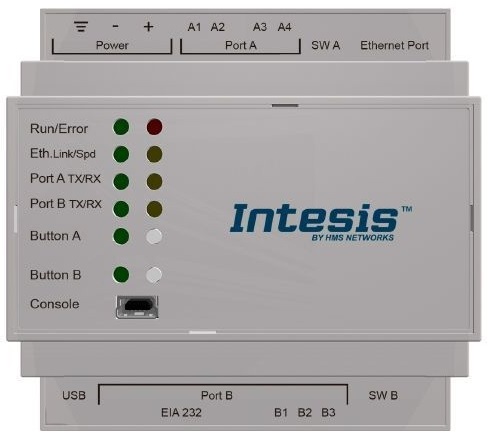

Intesis INBACMBM1000000 Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway User Manual
Integrate any Modbus RTU or TCP server device, or both at the same time, with a BACnet BMS or any BACnet IP or BACnet MS/TP controller. The aim of this integration is to make accessible Modbus system signals and resources from a BACnet based control system or device, as if it was a part of the own BACnet system and vice-versa.
FEATURES
UL Certified
BTL Certified
Support for BACnet IP Client and MSTP Master
BACnet Advanced features available (Trend logs, Calendars, etc.)
Support for 2 independent RTU ports for integration into BACnet IP < NEW!
Up to 5 Modbus TCP nodes/devices
Up to 32 Modbus devices per RTU node (without repeater) and up to 255 in total
Possibility to generate/download templates of your Modbus products
Easy integration & updates with Intesis MAPS
Use Case
Integration of Modbus RTU and TCP devices into a BACnet BMS.
Description
This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.
The BTL mark ensures 100% compatibility and, at the same time, guarantees a seamless integration with any BACnet device.
The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.
Technical Documentation
| User Manual | General information about this product | Download |
| Installation Manual | Learn how to install the device in your project | Download |
| Datasheet | Find all the specifications around this product | Download |
| BTL Certification | Check the product certification | Download |
| EC Declaration of Conformity | Check the product certification | Download |
| KC Certification | Check the product KC Certification | Download |
Programming Tools
| Intesis MAPS | Configuration software tool | Download |
| User Manual for BACnet | General information about Intesis MAPS for BACnet projects | Download |
Commercial Documentation
| Intesis Brochure | Know more about the Intesis current available products | Download |
ORDER CODES
| INBACMBM1000000 | Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway – 100 points |
| INBACMBM2500000 | Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway – 250 points |
| INBACMBM6000000 | Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway – 600 points |
| INBACMBM1K20000 | Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway – 1200 points |
| INBACMBM3K00000 | Modbus TCP & RTU Master to BACnet IP & MS/TP Server Gateway – 3000 points |
INCLUDED COMPONENTS
Intesis Gateway.
Installation Manual.
USB Configuration cable.
(Power supply not included).
Warranty: 36 months.
Copyright © 2020 HMS Industrial Networks – All rights reserved.
