instructables YX8018 Solar LED Driver
Overview
YX8019 has 1 or 2 1.25V charging power
Stable lighting of LEDs in the pond . The light of the sun is saw
When it hits the battery, it charges the rechargeable battery and
Turn on the LED with a rechargeable battery charged at night
Light, automatic switching.
Features: Features
High efficiency: 80-90%
Fewer peripherals: only one inductor
Low voltage battery protection function
Adjust current with inductor
Package: TO-94
| Pin number name
1 |
Lx |
function
Switch drain |
|
2 |
GND | GND |
|
3 |
THIS |
The negative electrode of solar cell, EN control/charge control |
| 4 | VDD | The positive electrode of solar cell |

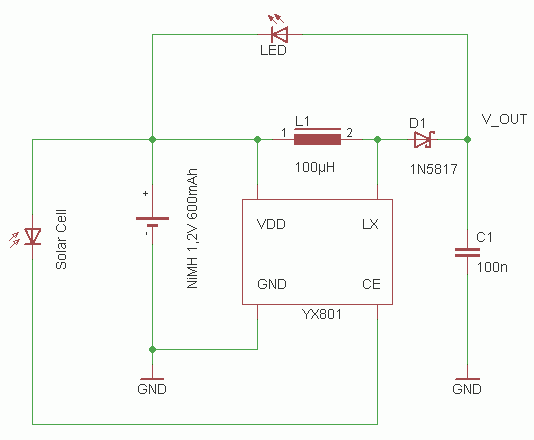

Application 1 (1 1.25V rechargeable battery)
- LED (white, blue, green)
- 7 Color Illumination LED
Machine Translated by Google
(1.25V rechargeable battery x2)
Switch connection
Documents / Resources
 |
