imou Cell 3C One Security Camera
Product Information
Specifications:
- Model: nuJ-a-lf
- Version: V1.0.0 M3K
- Hemisphere: Northern
- Power Source: SVDC 2A power adapter or solar panel
Product Usage Instructions
Power On the Camera:
Hold down the power button for 2-3 seconds to turn on the camera. The LED will light up in green when the camera is booting. If the LED flashes red twice and then turns off, it indicates low battery. Please charge it with a SVDC 2A power adapter or a solar panel.
Install the Camera:
Fully charge the camera before installation. Ensure the mounting surface is strong enough to hold three times the weight of the camera.
Device Status & LED Indicators:
- Blue LED: Flashing slowly – Charging
- Green LED: Solid – Fully charged
- Red LED: Flashing fast – Ready to set up the device
- Red & Green Alternating: Device malfunction
Turning Off the Camera & Resetting:
If you need to turn off the camera, double-press the power button. To reset the camera, press and hold the reset button for 5 seconds.
FAQ:
- How do I know if the camera is fully charged?
The green LED indicator will be solid when the camera is fully charged. - What should I do if the camera malfunctions?
If the device status LED shows red and green alternating lights, it indicates a device malfunction. Try resetting the camera by pressing and holding the reset button for 5 seconds.

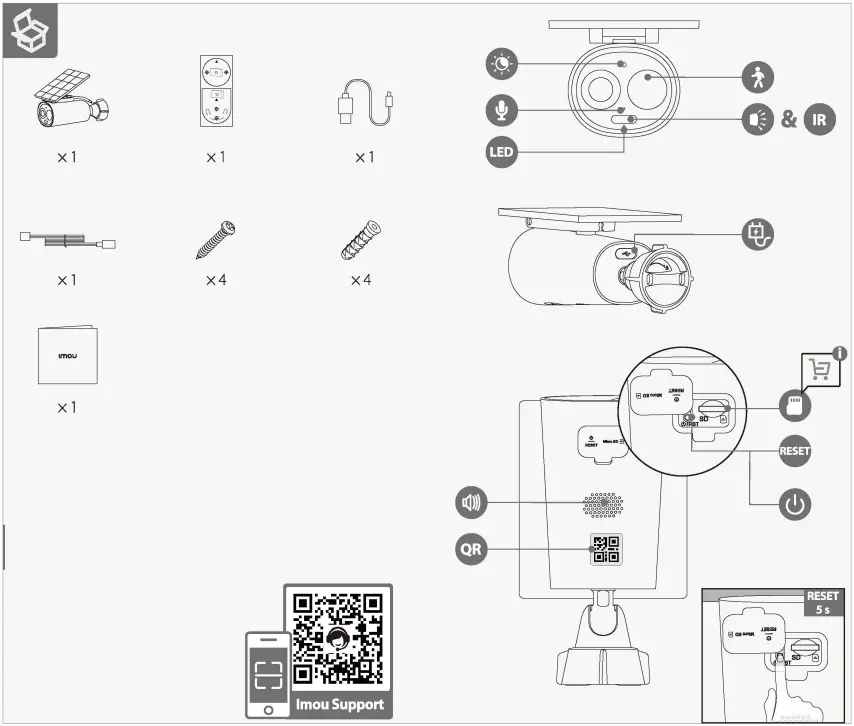

WHAT’S INCLUDE
Power On the Camera
Hold down the power button for 2-3 seconds to turn on the camera. The LED lights up in green when the camera is booting. If the LED flashes red twice and then turns off, the camera is out of battery. Please charge it with a 5VDC 2A power adapter or a solar panel.
Get the Imou Life App
Scan the QR code on part 2 or search for “Imou Life” to download and install the app. Create an account and log in.
Set Up the Camera
Scan the QR code on the body of the device or the cover of this guide with the app, and then follow on-screen instructions to complete the setup.
Install the Camera
Fully charge the camera before installation. Make sure the mounting surface is strong enough to hold three times the weight of the camera.
Double-press the power button to turn off the camera. If you need to reset the camera, press and hold the reset button for 5 s.
service.global@imoulife.com
https://www.imoulife.com
@imouglobal
