ihold JM7 Multi Functional Bluetooth Speaker User Manual

User manual

Thank you for purchasing the Multi-functional Bluetooth Speaker .
This speaker has been intelligently designed for very simple operation! However, please read this manual carefully before starting to operate the speaker.

Packing Accessories
JM 7 speaker*1 Type-C charging cable*1 User Manual*1

Operation

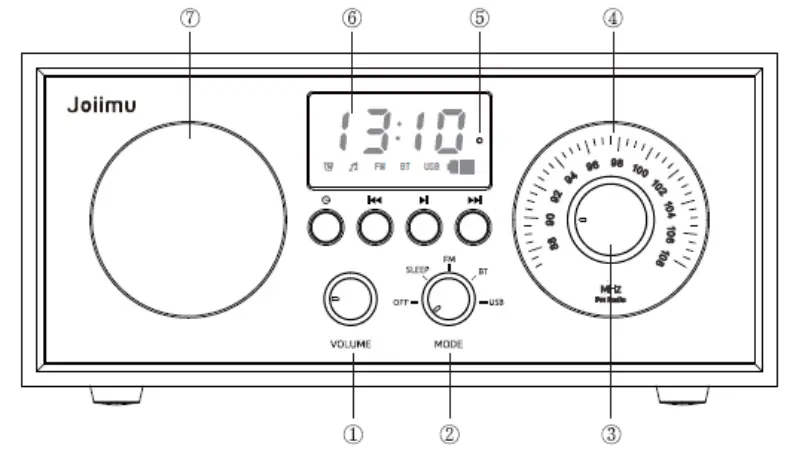

Outline

1. Volume knob 2. Function knob 3. Frequency Knob 4. Frequency dial 5. Wireless charging indicator 6. Display 7. Speaker driver 8. TYPE-C charging port 9. Charging indicator 10. USB port

Clock setting

1. Double press the “clock button” to enter the clock settings, setting the hours first, press the previous/next song button to adjust the time.
2. Short press the “clock button” again for minutes setting, press the previous/next song button to adjust the time.
3. Short press the “clock button” to confirm the above setting.

Note: For some cell phone and tablets, after Bluetooth connection successfully, the speaker will automatically synchronize the time.

Alarm clock setting

1. Short press the “clock button” to enter the clock settings, setting the hours first, press the previous/next song button to adjust the time.
2. Short press the “clock button” again for minutes setting, press the previous/next song button to adjust the time.
3. Short press the “clock button” to confirm the above setting.

Turn OFF/ON the alarm clock The default alarm clock of the speaker is a daily timed alarm.

1. Turn off the alarm clock: long press “Clock”button to turn off the set alarm clock, at the same time, the alarm clock icon on the displayis off.
2. Turn on the alarm clock: long press “Clock” button to turn on the set alarm clock, at the same time, the alarm clock icon on the display will light up.

Brightness adjustment
Short press the “⏮️ ““⏭️ ” to adjust the brightness of the display cyclically.
The brightness is divided into four levels: 100%, 75%, 50%,0

Sleeping mode ( white noise music)

1. Turn the “ Function knob” manually to “ Sleep” mode, at the same time music icon appears in the display
2. Short press “ Play/Pause button”, the single white noise music will be autoloop playback.
3. Short press the “ Previous/Next song” button to switch the songs, the speaker has built-in 5 sleep-aiding music.

FM radio mode

1. Turn the “ Function knob” manually to “ FM” mode, the “ FM” icon appears in the display
2. Adjust the “ Frequency knob” slowly to search for the radio stations
3. Some radio stations maybe interfered by the charger while charging the speaker

Bluetooth Mode (BT)

1. Turn the “ Function knob” manually to “ BT” mode, the “ BT” icon flashes in the display
2. Open the Bluetooth list of your device and select “JM 7” to connect and pair.

USB flash drive mode ( USB)

1. Turn the “ Function knob” manually to “ USB” mode, the “ USB” icon appears in the display
2. Insert the USB flash drive to the “ USB” port at the back of the speaker, the music in the USB flash drive will be played
3. Long press the Play/Pause button to play the song in a loop, and the display will show “ONE” for 10 seconds. Long press the Play/Pause button again to cancel theloop, and the display will show “ALL” for 10 seconds.

OFF
Turn the “ Function knob” manually to the “ OFF” mode

Charging

1. The battery symbol is divided into three cells to indicate the power, when the first cell icon flashes, indicating the speaker power is insufficient, at this time need to charge the speaker
2. The red indicator light is always on when charging, the indicator light is off when fully charged.
3. To extend the battery life, if the speaker is not used for a long time, it is recommended to charge every three months

Wireless charging

1. Use the charging cable to connect the speaker to the charger
2. Place your phone in the center of the top of the speaker for charging.
3. The wireless charging indicator light is always on during normal charging.
   The wireless charging indicator light blinks during abnormal charging.
   The wireless charging indicator light is off when charging completed.

Specification

www.ihold.cc

Designated Agent Information:
Company Name: FCC US Agent, LLC
FRN: 0033402884

Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne
Phone: 708-571-3148
Email: Support@FCCUSAgent.com

FCC Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.

ISED Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency Exposure Statement for IC

This equipment complies with IC exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.
