ICP DAS I-7018R 8-Ch Thermocouple Input Module User Guide

All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year from the date of delivery to the original purchaser.

Warning
ICP DAS assumes no liability for damages resulting from the use of this product. ICP DAS reserves the right to change this manual at any time without notification. The information furnished by ICP DAS is believed to be accurate and reliable. However, no responsibility is assumed by ICP DAS for its use, or for any infringements of patents or other rights of third parties resulting from its use.

Packing List

I-7018(R)(BL)(P) or M-7018(R)	Plastic Rail	CD	Quick Start Guide

Internal I/O Structure < I-7018(BL)(P), M-7018 >

Internal I/O Structure < I-7018R, M-7018R >

Pin Assignments < I-7018(BL)(P) >

Pin Assignments < I-7018R, M-7018, M-7018R >

Wire Connections < I-7018(BL)(P) Channel 0 – 5, M-7018 , I-7018R, M-7018R >

Wire Connections < I-7018(BL)(P) Channel 6 – 7 >

Modbus Table (M-7018, M-7018R only)

Address

Description

R/W

30001 ~
30008
40001 ~
40008

Analog input value of channel 0 to 7

30129
40129

CJC temperature in 0.01°C

40353 ~

40360

CJC offset of channel 0 to 7 in 0.1°C. 1 for 0.1, 127 for 12.7, 255 for –0.1, 128 for –12.8

R/W

40481

Firmware version (low word)

40482

Firmware version (high word)

40483

Module name (low word)

40484

Module name (high word)

40485

Module address, valid range: 1 ~ 247

R/W

40486

Bits 5:0
Baud rate, 0x03 ~ 0x0A

Code	0x03	0x04	0x05	0x06
Baud	1200	2400	4800	9600
Code	0x07	0x08	0x09	0x0A
Baud	19200	38400	57600	115200

Bits 7:6
00: no parity, 1 stop bit
01: no parity, 2 stop bit
10: even parity, 1 stop bit
11: odd parity, 1 stop bit

R/W

40487

Type code

R/W

40488

Modbus response delay time in ms, valid range: 0 ~ 30

R/W

40489

Host watchdog timeout value, 0 ~ 255, in 0.1s

R/W

40490

Channel enable/disable, 00h ~ FFh

R/W

40491

Module CJC offset in 0.01°C

R/W

40492

Host watchdog timeout count, write 0 to clear

R/W

00257

Protocol, 0: DCON, 1: Modbus RTU

R/W

00259

Filter setting, 0: 60Hz rejection, 1: 50Hz rejection

R/W

00260

Modbus host watchdog mode 0: same as I-7000 1: can use AO and DO commands to clear host watchdog timeout status

00261

1: enable, 0: disable host watchdog

R/W

00268

1: enable, 0: disable CJC

R/W

00269

Modbus data format, 0: hex, 1: engineering

R/W

00270

Host watchdog timeout status, write 1 to clear the host watchdog timeout status

R/W

00273

Reset status, 1: first read after powered on, 0: not the first read after powered on

DCON Protocol

Functions	Command	Response	Notes
Read module name	$AAM	!AA(Data)	AA: address number
Read module firmware version	$AAF	!AA(Data)
Read all analog input data	#aa	>(data)
Read analog input data of each channel (<=16 channel)	#aai	>(data)	i: channel number (Hex)
Read analog input data of each channel (>16 channels)	#aaii	>(data)	ii: channel number (Hex)

If you want to know the detail DCON protocol, please check it from CD or web CD path:\\napdos\7000\manual\
Web: ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/7000/manual/

Module test and configuration

Step 1: INIT switch Operation

Find out the INIT switch( back of the module), and turn to INIT.

Reboot the module

Step 2: Install & Run DCON Utility

Please Install DCON Utility first
You can find the software on the CD.
CD-path: <Driver>:\napdos\driver\dcon_utility\
Weblink: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/
Run DCON utility

Step 3: Set search configuration & search module

Click “COM Port”

Assign the communication information and click “OK”

Module Default Setting

COM Port Refer converter Port Number

Baud Rate 9600

Protocol DCON for I-7000
Modbus RTU for M-7000

Parity Option N,8,1
Click “Search” and select “Start Searching”
The software will search the modules from COM Port

Click “Search“ and select “stop searching”
Manual stop when the modules searched

Note:
When no module can be searched, please check the wire and communication information

Step 4: Select Module for testing and configuration

Step 5: Configuration Settings & Channel Settings

Step 6: Change to normal mode and keep the settings

Turn the INIT Switch to Normal.
Reboot the module

Trouble Shooting

Q1. How to do when forgot module address or baud rate?
Please turn to INIT mode, and run DCON Utility to search.
The module supports DCON protocol at the INIT mode.
And the address is 0. The communication setting is “9600,N,8,1”.
Q2. How to configure the I-7000 and M-7000 modules?
ICP DAS provide DCON Utility to configure I-7000 and M-7000 modules.
Please download the last version from: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/
Q3. How to measure the current?
I-7018(R)(BL)(P) and M-7018(R) require optional external resistance (125Ω) for current measurement.
Please refer wired connections diagram.
And then select a suitable input range by DCON Utility.

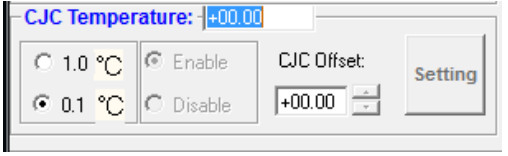

Q4. What is the CJC function?
CJC (Cold-Junction Compensation) offset is for the temperature measurement.
You can set a CJC offset for all channels or different channel in DCON Utility,

Q5. How to programming with I-7000 or M-7000 by C#, VB, VC?
ICP DAS I-7000 and M-7000 series both support DCON protocol. And Only M-7000 series supports Modbus protocol.
For DCON protocol, please download SDK and Demo from: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_dll_new/
For Modbus protocol, please refer this web link: http://www.icpdas.com/products/PAC/i-8000/modbus.htm

If there is any other question, please feel free to contact us. Email: service@icpdas.com
Website: http://www.icpdas.com.tw/contact_us/contact_us.htm
