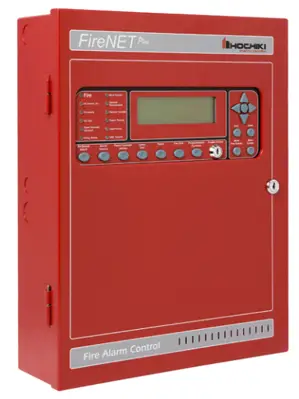

FireNET™ Plus 1127 – ANALOG
ADDRESSABLE FIRE ALARM CONTROL PANEL
Owner’s Manual
DESCRIPTION
The FireNET™ Plus 1127 series control panel is an analog addressable fire alarm panel with build options containing 1 or 2 SLC loops, a Digital Alarm Communicator/ Transmitter (DACT), and an RS-485 bus for network communication. Each SLC loop supports 127 devices of any combination (sensors or modules), and 127 analog sounder bases, for a possible total of 254 points per loop. Communication between devices is accomplished by use of standard cable (shielded or twisted pair is not required). Each panel includes a 4-amp power supply and has 2 onboard NAC circuits. The RS-485 bus provides communication to the panel network while another RS-485 bus provides communication for peripheral devices. The RS-232 interface allows the convenience of programming via a PC. The system will support a variety of Hochiki devices; photo, ion and heat sensors, which contain a unique, patented sensor design incorporating automatic drift compensation and day/night sensitivity modes. Additional devices include contact monitors, relay controllers, supervised auxiliary output and short circuit isolator modules. In addition, interfaces to conventional detection systems can be established by using a conventional zonemonitoring module. The Loop Explorer Windows® Software interface provides the installer with fingertip access to installation programming and diagnostic tools. An Auto Learn feature offers the convenience for quick start applications. Add to this a reputation for high quality and dedicated service which makes this an exceptional product both in performance and value.
Specifications subject to change without notice.
STANDARD FEATURES
- Analog design using Hochiki’s advanced DCP protocol for fast communication
- Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points possible per loop
- Uses standard wire, no-shielded or twisted pair required on SLC loops
- Integrated digital alarm communicator (DACT) with Contact ID and SIA reporting formats
- Programmable sensitivity levels by device
- Alarm Verification feature
- Automatic daily calibration & drift compensation routine
- Large 8-line x 40-character LCD display (320 char.)
- 1 or 2 loop (option)
- RS-485 bus for panel network (option)
- Built-in RS-232 interface for programming via a PC
- 3 on board programmable Form C relays rated at 1 amp at 30VDC
- 2 auxiliary power outputs, each rated 360mA at 24 VDC
- Loop Explorer Windows® configuration utility
- Auto-learn feature
- 500 network wide software zones
- Network Capability of up to 64 panels (option)
- Built in help and alarm information screens
- 2 on-board Class B (style Y) NAC circuits rated at 2.3 amps each (Special Application) and 1.6 amps each (Regulated continuous)
- Gentex, System Sensor, Wheelock, and Amseco NAC sync protocol built-in
- Automatic day/night sensitivity modes
- Fire Drill test function
- Walk Test function
- Powerful & versatile Cause & Effect wizard including: *Cause & Effect action *Disable function configuration *Test mode configuration
PRODUCT LISTINGS
UL 864, Local Signaling Unit.
Types: Automatic, manual, waterflow, sprinkler supervisoryRemote Station and Central Station Service (DACT) Non-coded signaling. NFPA 70, 72 &13 Compliant
California State Fire Marshal
7165-0410:180
SPECIFICATIONS
| Primary AC | 120VAC @ 2.1 Amps 50/60hz or 220VAC @ 1.1Amps 50/60hz |
| Output DC | 24VDC @ 5.25 Amps |
| Power Supply | 4 Amp integrated |
| Charger Current | 1.5 Amps max. |
| Dimensions | 14.5″ W x 19″ H x 3.5″ D |
| Weight | 20 lbs. (without batteries) |
| Color | Red (optional charcoal) |
| Material | ABS/steel enclosure |
| Display | 8 line x 40 character LCD (320 characters total) |
| Network | Dual RS485 ports (64 panels max.) |
| Zones | 500 network wide software zones per system |
| SLC loops | 1 or 2 (class A, “style 6 or 7” or class B, “style 4”) |
| Devices per loop | 127 sensors & modules, plus 127 analog sounder bases, 254 total |
| Addresses per panel | 800 addresses+sub-addresses max. per panel |
| NAC Outputs | (2)class B, 2.3 Amps (special application) 1.6 Amps Regulated (continuous) |
| Relay Outputs | (3)Form C 1 Amp @ 30VDC |
| Aux. Power | 2 outputs, 360mA @ 24VDC each |
| PC Port / Printer | RS232 |
| DACT Formats | Contact ID and SIA |
SLC COMPATIBLE DEVICES & SYSTEM ACCESSORIES
| MODEL | DESCRIPTION |
| CONTROL PANEL EXPANDERS | |
| FNP-1127-SLC | SLC One Loop Expansion Card |
| FN-4127-NIC | Network Interface Card |
| FN-4127-IO | 16 Channel Input/Output Board |
| ANNUNCIATOR | |
| FN-LCD-S | Serial LCD Annunciator |
| FNP-LED | Graphix Display |
| SLC LOOP DEVICES | |
| ALG-V, ALK-V | Analog Addressable Photoelectric Sensor |
| AIE-EA | Analog Addressable Ionization Sensor |
| ATG-EA | Analog Addressable Heat Sensor |
| NSA-6 | Six inch Sensor Base |
| NSA-4 | Four inch Sensor Base |
| ASB | Analog Sounder Base |
| DH-98A | Analog Addressable Duct Detector Unit |
| DH-98AR | Analog Addressable Duct Detector Unit (with relays) |
| MS-RA, MS-RA/R, MS-KA/R | Remote Test Station for DH98AR |
| FRCME-S | Contact Monitoring Module (mini w/terminal blocks) |
| FRCME-P | Contact Monitoring Module (mini w/pigtail leads) |
| FRCME-4 | Contact Monitoring Module (with faceplate/indicating LED) |
| FRCMA, FRCMA-I | Class A Contact Monitoring Module (FRCMA-I has Built-in SCI) |
| DIMM | Dual Input Monitor Module (with faceplate/indicating LED) |
| CZM | Conventional Zone Module |
| R2M | Dual Relay Module |
| R2ML/H Series | Dual Relay Module (R2ML-I & R2MH-I has Built-in SCI) |
| SOM | Supervised Output Module |
| SOM-A, SOM-AI | Class A Supervised Output Module (SOM-AI has Built-in SCI) |
| SCI | Short Circuit Isolator Module |
| AMS Series | Addressable Manual Pull Station |
| ACCESSORIES | |
| TCH-B100 | Hand Held Programmer (portable device addresser) |
| FN-ACC | Battery/Accessory Enclosure (houses up to 33AH size batteries) |
| FNP-ETR | Enclosure Trim Ring for Panel Flush Mount |
Hochiki America Corporation
7051 Village Drive, Suite 100 Buena Park, CA 90621-2268
Phone: 714/522-2246
Fax: 714/522-2268
Technical Support 800/845-6692
ortechnicalsupport@hochiki.com
Find latest revision at www.hochiki.com
F0087 03/2010
