Hanwha Vision SMT-2721PV 7 Inch AI Enabled IP Public View Monitor User Guide

Package Contents
Monitor / Quick Start Guide / Alarm terminal block / Remote Controller / Battery / Power Inverter Harness

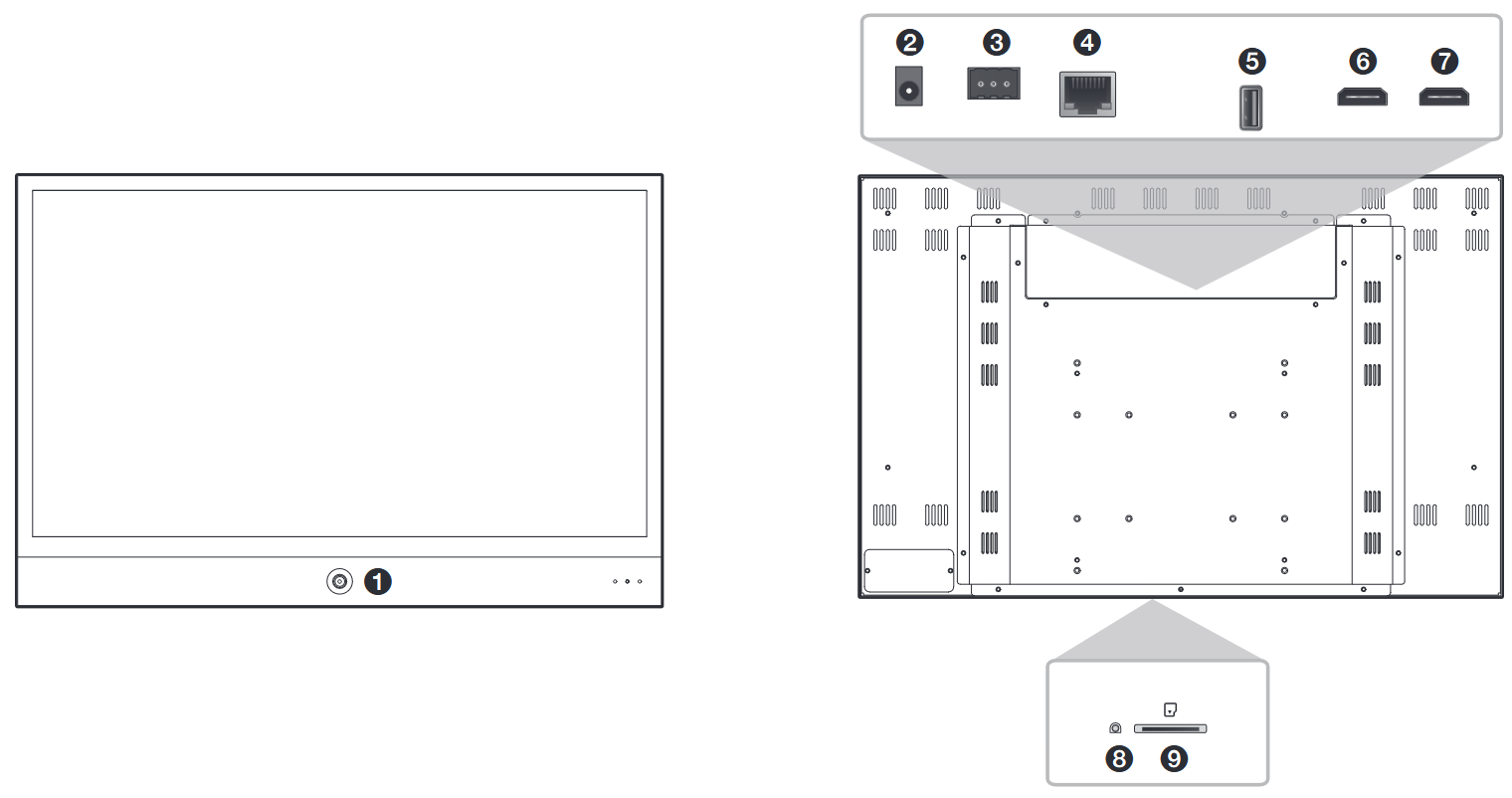

Names and functions of each part

1. Lens
2. DC 24 V
3. ALARM
4. HPoE
5. USB
6. HDMI1
7. HDMI2
8. RESET
9. Micro SD card slot

※ PIP/PBP mode supports only the SMT-2731PV, SMT-3231PV

Connecting external devices

– Connecting the HDMI cable

– Connecting the LAN cable
