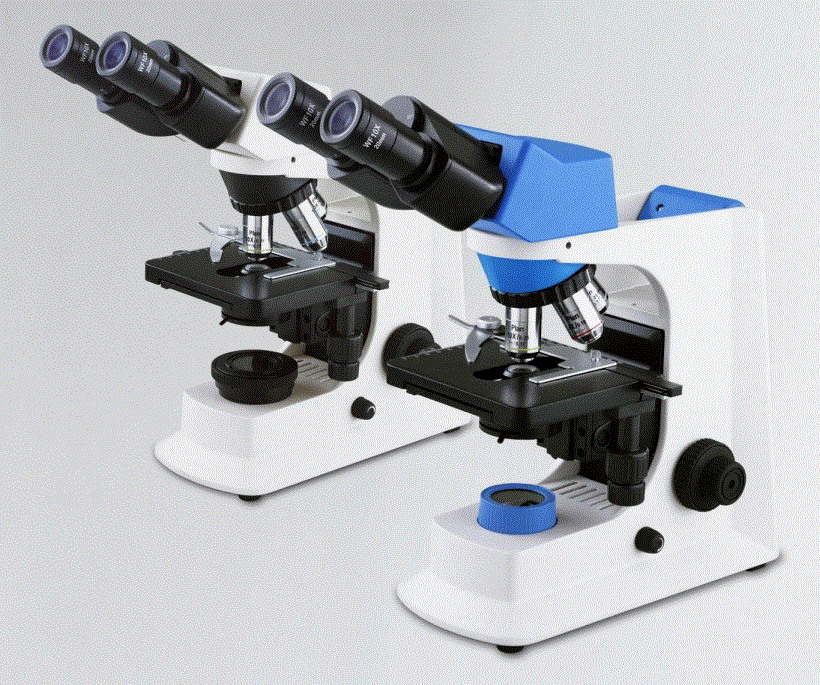

global sources Smart Series Biological Microscope

Introduction

• Excellent OTICS infinity optical system, outstanding resolution and definition.
• Original integrated stand for excellent stability.
• Unique aspheric illumination system, provide bright and comfortable lighting.
• Various colorful matching looking can provide lively environment and happy mood.
• Various accessories for upgrading.
• Back handle and observing hole convenient for carry and operation.

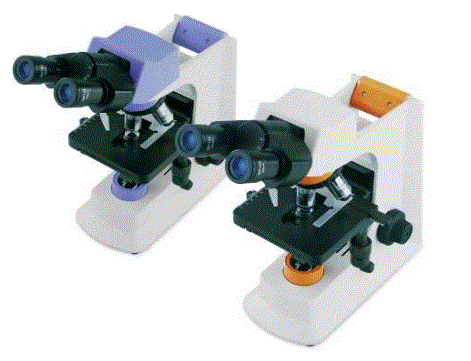

• Alternative color for main body.

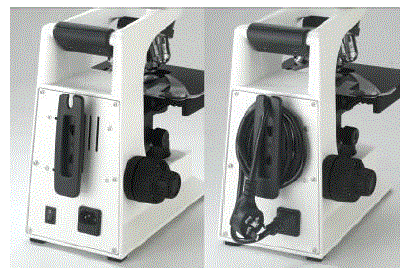

• Wire winding device convenient for carry and storage (optional)

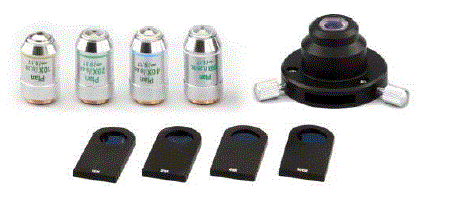

• Phase contrast unit, Independent phase contrast unit (apply to infinity optical system)

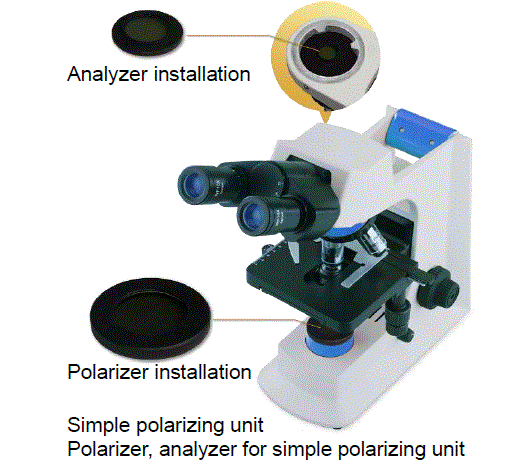

• Polarizer, analyzer for simple polarizing unit.
• Dry Dark Field Condenser
• Mirror

SMART Series Biological Microscope Outfits

Items	Specification	SMART -1	SMART -2	SMART -3	SMART -4
Eyepiece	WF 10X-18mm	●●
	WF 10X- 20mm		●●	●●	●●
	4X	●
Finity Achromatic Objective	10X	●
	40X(S)	●
	100X/1.25 (Oil) (S)	●
	4X		●
Finity Plan Objective	10X		●
	40X/0.65 (S)		●
	100X/1.25 (Oil) (S)		●
	4X			●
Infinity E-Plan Objectives	10X			●
	40X (S)			●
	100X (Oil) (S)			●
Infinity Plan Objectives	4X				●
	10X				●
	40X (S)				●

	100X (Oil) (S)				●
	Plan 20X			○	○
	Plan 60X (S)			○	○
Seidentopf    Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm	●	●	●	●
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80	○	○	○	○
Nosepiece	Quadplex , Quintuple (Optional)	●	●	●	●
	Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder	●	●	●	●
Mechanical Stage

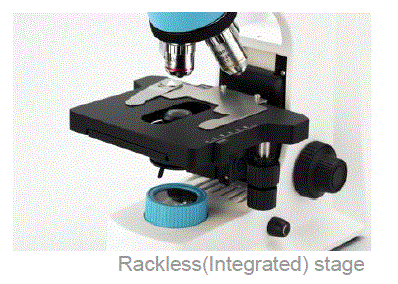

	Rackless(Integrated) stage, size: 140×135mm,Travel range: 75×35mm, Two-slide holder	○	○	○	○
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	●	●	●	●
	3W-LED Illumination Systems	●	●	●	●
Illumination	12V/20W Halogen Lamp	○	○	○	○
	6V/30W Halogen Lamp	○	○	○	○
Field Diaphragm		○	○	○	○
Dark Field Condenser	Dry, apply to 4X – 40X objective	○	○	○	○
	Wet, apply to 100× objective	○	○	○	○
Polarizing Attachment	Analyzer/Polarizer	○	○	○	○
Independent phase contrast unit	10X /20X /40X /100X			○	○
	Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.			○	○
Fluorescence Attachment
	Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp.
				○	○
	Blue	○	○	○	○
Filter	Green	○	○	○	○
	Yellow	○	○	○	○
C-Mount	0.5X/0.75X （Focus adjustable）	○	○	○	○
	1X（Focus adjustable）	○	○	○	○
Mirror		○	○	○	○
Wire winding device		○	○	○	○

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

Packing Size: 390mm×280mm×450mm
Gross Weight: 7.5 kgs
Net Weight: 6.5 kgs

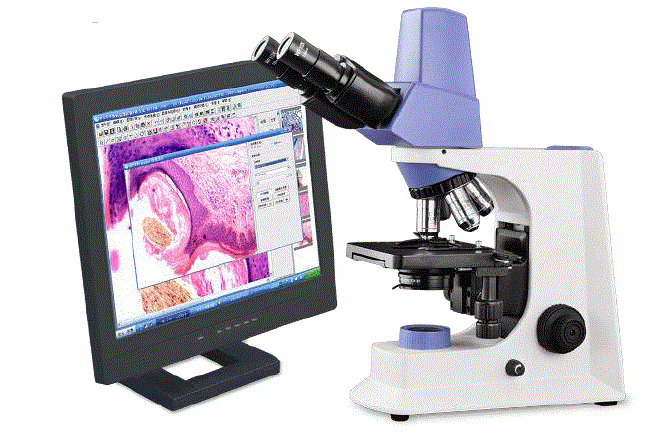

SMART-e320/500 Digital Microscope Characteristics

• Dustproof, moisture-proof, built-in chip.
• Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.
• Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.
• USB2.0 connection without external power supply.
• Available for WINDOWS system.

SMART-e Digital Microscope Outfits

Items	Specification	SMART-e320	SMART-e500
Eyepiece	WF 10X-20mm	●●	●●
	4X	●	●
Infinity EPlan Objective	10X	●	●
	40X/0.65 (S)	●	●
	100X/1.25 (Oil) (S)	●	●

Seidentopf Binocular Head	Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm	●	●
Nosepiece	Quadplex	●	●
Mechanical Stage	Stage Size: 145mm×140mm Travel: 76mm×52mm, Scale: 0.1mm,Two Slide Holder	●	●
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	●	●
	LED Illumination Systems	●	●
Illumination	6V/20W Halogen Lamp	○	○
	6V/30W Halogen Lamp	○	○
Image Systems		3.2MP Pixel	5 MP Pixel

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

Packing Size: 570mm×275mm×450mm
Gross Weight: 8 kgs
Net Weight: 7 kgs

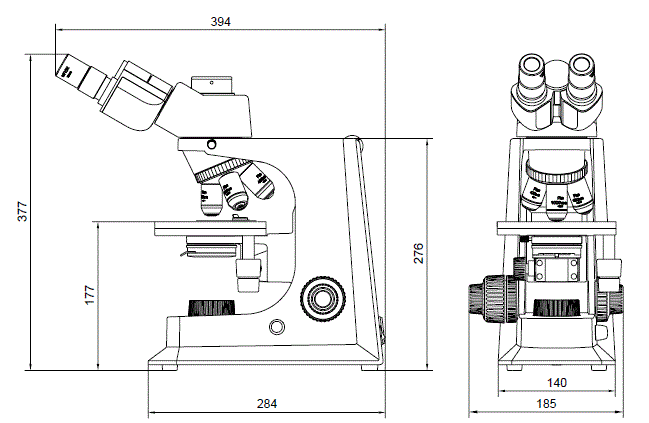

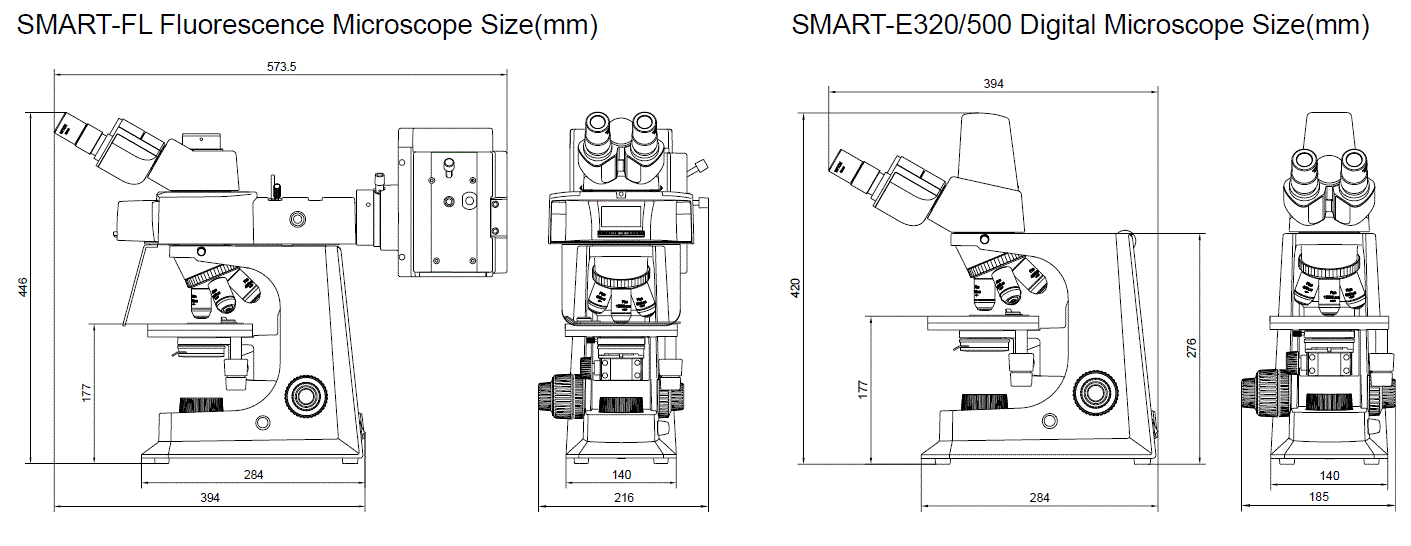

Dimension

SMART Biological Microscope Size(mm)
