GENELEC 8030A Compact Bi Amped Reference Monitor

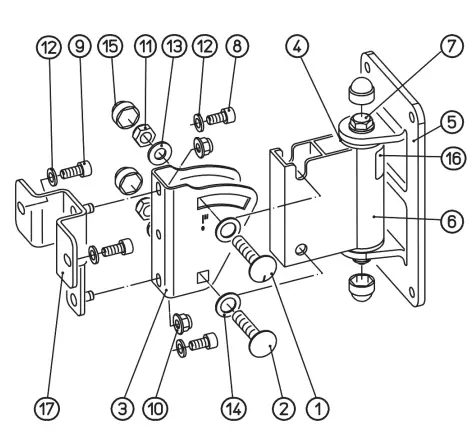

PARTS DESCRIPTION
| Pos. | Qty. | Description | Dimensions |
| 1 | 1 | Carriage bolt imprinted | M8x40 |
| 2 | 1 | Carriage bolt | M8x40 |
| 3 | 1 | Swivel bracket | 67,3×28,5x2x87 |
| 4 | 2 | Damping washer | ø30×7,9 |
| 5 | 1 | Wall mount | 90×41,5×190 |
| 6 | 1 | Adjustable bracket | 78,5x30x80 |
| 7 | 1 | Hexagonal bolt | M8x110 |
| 8 | 2 | Cylinder head screw | M6x12 |
| 9 | 2 | Cylinder head screw | M6x14 |
| 10 | 2 | Hexagon nut with flange | M6 |
| 11 | 3 | Locking nut | M8 |
| 12 | 4 | Washer | ø12×1,6xø6,4 |
| 13 | 4 | Washer | ø17×1,6xø8,4 |
| 14 | 2 | Washer | ø18xø11,2×1,2 |
| 15 | 4 | Protective cap M8 | ø17×15 SW13 |
| 16 | 1 | Nameplate | 40×22 |
| 17 | 1 | T-adapter plate | 87x36x90 |

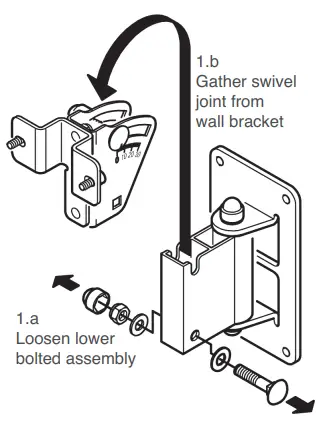

Separate swivel joint from wall bracket

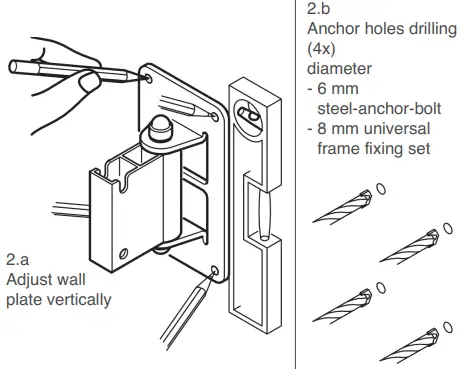

wall bracket fastening
Thank you very much for choosing this product. Please read and follow these instructions carefully. They inform you about all the important steps regarding assembly and handling. We recommend that you keep them for future reference.
Wall mount options

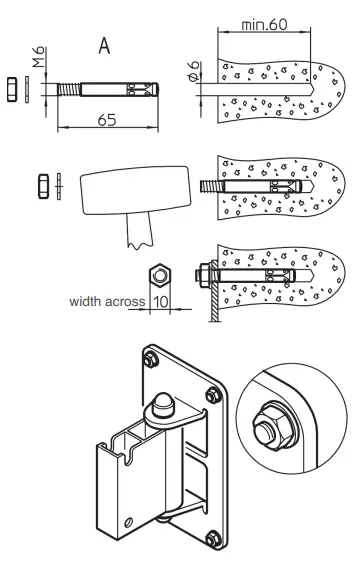

Concrete wall – e.g.: steel-anchor-bolt M6 x 65 mm
- drill and blow out the hole, place anchor,
- wall bracket and washer, tighten hexnut
Perforated bricks – e.g.: unsiversal frame fixing set 8 x 80 mm
- drill, countersink and blow out hole, place anchor
- and bracket, fix hexagon head wood screw
Injection-molded-anchor
Without sieve bushing for concrete wall – with sieve bushing for perforated bricks / optional with threaded bolt M6 or threaded bushing M6
- Advantages: fixing without pressure, enables repeated mounting, capable for diverse wall materials
- Advantages: (please notice instructions GENELEC Oy of anchor manufacturers).
Installation

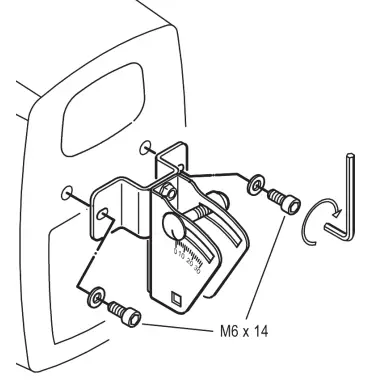

- Bolt to T-Adaptor for:
- vertical mounting
- (8030A)
- horizontal mounting
- (8040A, 8050A)

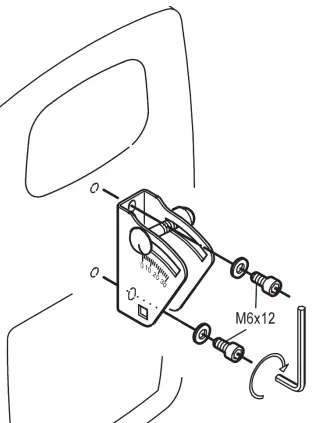

- (alternative) Remove T-Adaptor for:
- horizontal mounting
- (8030A)
- vertical mounting
- (8040A, 8050A)
- with swivel joint

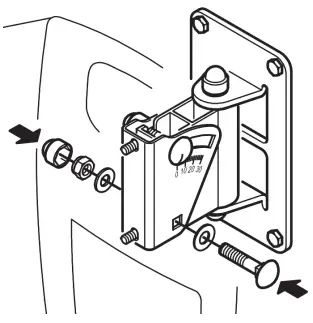

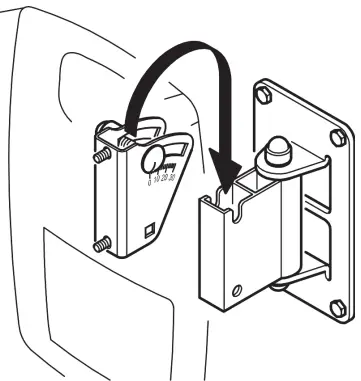

- Replace the swivel joint (with mounted speaker) into the wall bracket.
- Secure the swivel joint to the wall bracket by tightening the lower bolted assembly.
Settings

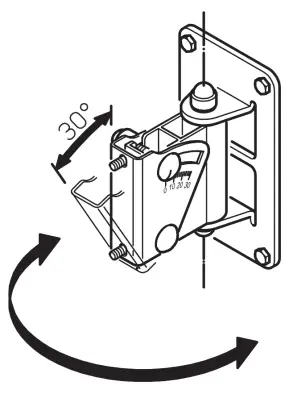

- Continuously adjustable up to 30°, by fixing the upper bolted assembly.

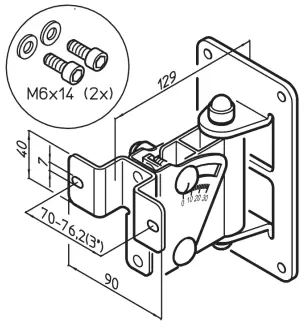

Dimensions
- Weight: 1.2 kg vertical hole pattern
- vertical hole pattern
Safety instructions
- Max. load capacity: 15 kg.
- Use four anchors per wall bracket.
- Choose a position and mounting method compliant with the local
- building codes and regulations.
- For use only by trained installers.
- For use only at proper walls with adequate anchors
- (see 3. A, B, C; not included in delivery).
- Not suitable are fragile walls. Beware of power supply lines
- and water conduits. In case ask an expert.
- Inspect bolted assemblies periodically.
- For indoor use only.
Specifications
- Max. Load Capacity: 15 kg
- Weight: 1.2 kg
- Vertical Hole Pattern
- Horizontal Hole Pattern
FAQ
Q: What is the maximum load capacity of the wall mount?
A: The wall mount can support a maximum load of 15 kg.
Q: Can the wall mount be used outdoors?
A: No, the wall mount is designed for indoor use only.
Q: Are detailed mounting instructions provided with the product?
A: Yes, detailed mounting instructions are included in the packaging of the product.
