BRIBI0-CF
Sensor for 8ft and 4ft Linkable LED Linear Light
SPECIFICATIONS
| Power supply | 120/277VAC 50/60Hz |
| Maximum load © -40°F — +158°F (-40°C — +70°C) |
Resistive/Tungsten – 600W@120V Electronic Ballast (LED) – 800VA@120V/1200VA©277V |
| HF System | 5.8GHz CW |
| Dim control output | 0-10V. max. 25mA sinking current |
| Detection radius/angle | Max 26ft.(8m) /360° |
| Mounting height | Max 40ft |
| Humidity | Max. 95% RH |
| Temperature | -40°F — +158°F (-40°C — +70°C) |
NOTE : The highfrequency output of this sensor is <0.2mW-that is just one 5000” of the transmission mrafa mabile phone or the output of a microwave oven.
SENSOR COVERAGE
WARNING
NOTE: Warm up time is 15seconds. After the sensor connects input power, the light will keep on 15seconds, then go to dimming to work normally.
NOTE: Factory Default Setting: 100% sensitivity, Hold on time: 10seconds, Daylight sensor is 30lux, Dimming level:30%, Dimming time: 60minitues.
NOTE: Any setting changed by DIP Switch or remote control, the light that sensor connect will on/off as confirm.
UTILIZING FIELD AND INTRODUCTION
BRI810-C-F is a moving object sensor that can detect range of 360° and it’s working frequency is 5. 8GHz. The advantage of this product is stable working state (stable working temperature: -40°C~+70°C), BRI810-C-F adopts a microwave sensor (high-frequency output<0.2mW), so that it is safe and performs better than infrared sensor.
FUNCTION AND OPTIONS
With suffcient naturallight, the light does not switch on when presence detected.
With insufficient natural light, the sensor switches on the light automatically when person enters room.
People left, light still dims to 0/10%/30%/50% (options) standby level after the hold time.
Light switches off automatically after after stand-by time elapsed.
WIRING DIAGRAMS

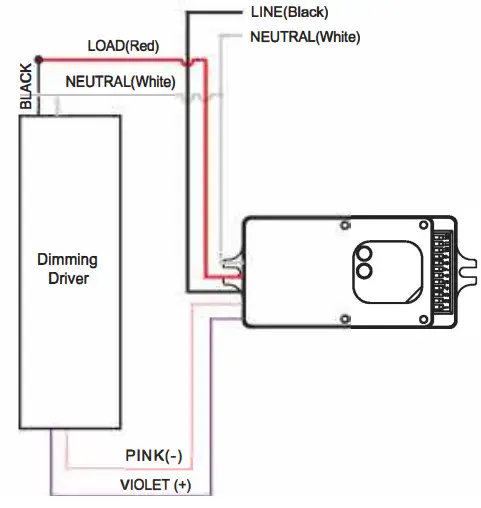

Wiring with dimming ballast or LED driver.
Dimming Driver

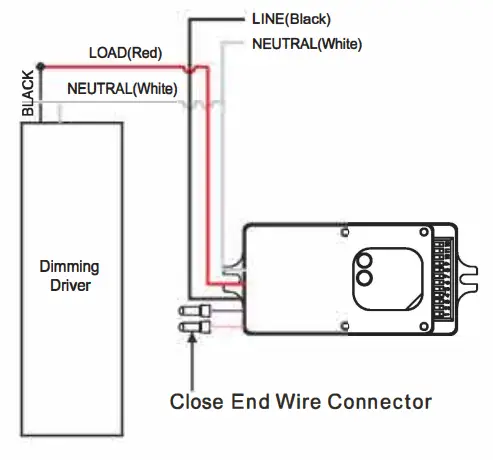

Wiring with non-dimming ballast or LED driver.
Non-Dimming Driver
PARAMETER SETTING BY DIP SWITCH
Considerthe picture: 1,2 set sensitivity; 3, 4,5 set hold time; 6, 7,8 set stand-bytime; 1, 2 set the light-control 3, 4 setstand-bylightlevel ;
Detection Range Setting (sencitiviity)

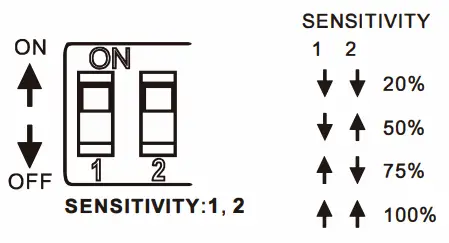

Detection rang can be reduced by selecting the combination on the DIP switches to fit precisely each application:
Hold Time Setting
Thelamp can besetto stay ON forany period of time between approx.10sec and amaximu of 30min. Any movement detected before this time elapse will re-startthe timer. It is recommended to select the shortest time for adjusting the detection zone and for performing the walk test.

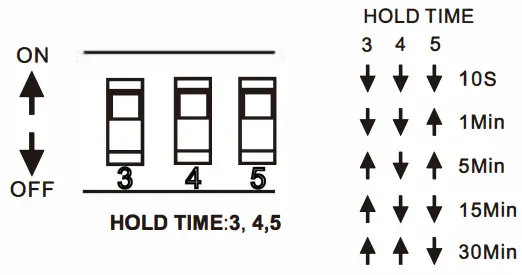

Switch location andholdtime of the correspondingtable s as follows:
Stand-by Time Setting

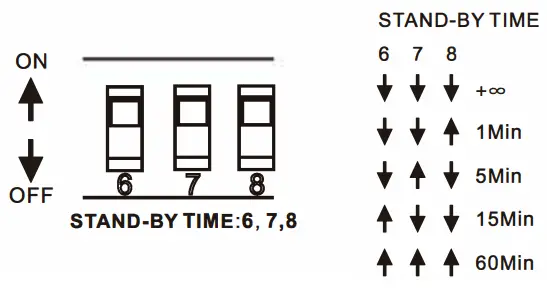

File of switch location and stand-by time setting as follow:
Light-control Setting
The chosen lamp response threshold can be infinitely from approx. 10-50lux, switch location and light-control of the corresponding table s as follows:
Stand-by Light Level Setting
The corresponding file of switch location and stand-by level s follows:
PARAMETER SETTING BY REMOTE CONTROL IN MANUAL OF RC-100.
