7.0” PCAP Touch Screen LCD GUI
Development Kit

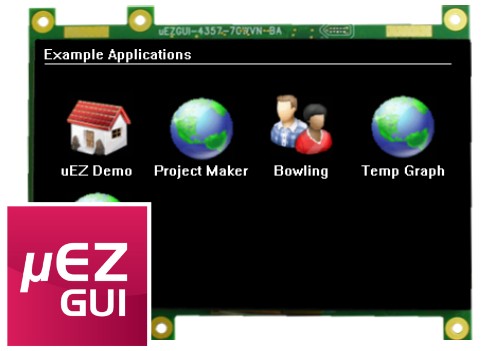

UEZGUI-4357-70WVN 7.0″ PCAP Touch Screen LCD GUI Development Kit
Congratulations on the purchase of your μEZ® GUI development kit!
Our goal is to ensure you have a pleasant experience familiarizing yourself with the functions and capabilities of our products.
To Begin Development with your μEZ GUI:
- Power on the device by connecting the 5V power adapter to one end of the USB cable and the other end to the μEZ GUI. Note: Do not connect the μEZ GUI to a computer USB port. Standard 2.0/3.0 USB ports will not provide sufficient power to the device.
- Visit TeamFDI.com/StartHere to download the UEZGUI-4357-70WVN Start Here Guide. This guide will provide step-by-step instructions and supporting files for designing your first graphical user interface.
UEZGUI-4357-70WVN Kit Contents
- 7.0” PCAP Touch Screen LCD GUI Production Module (Part number: UEZGUI-4357-70WVN-BA)
- Segger J-Link Lite Cortex-M ARM JTAG Debugger
- 9 Pin Ribbon Cable
- (2) Type A to Mini Type B USB Cables
- USB A/C to 5V Power Adapter
Also Included:
- 4-bit microSD card
FDI Doc PN: MA00104
Rev 1.20 – 1/4/2023
