FORTIN EVO-ONE Push to Start Bypass Module
Specifications
- Vehicle Compatibility: Subaru Crosstrek Impreza
- Start System: Push-to-Start
- Model Years: 2018-2023 (Push-to-Start), 2017-2022 (Push-to-Start)
- Firmware Version: 84.[11]
- Unit Option: C1
Product Usage Instructions
Description
The product is designed to enhance the security and convenience of starting your vehicle remotely using the push-to-start system.
Installation Requirements
It is mandatory to install the hood pin switch for safety and security reasons. The hood pin ensures that the vehicle cannot be remote started with the hood open.
Mandatory Steps:
- Ensure the hood pin switch is installed correctly.
- If the vehicle can be remotely started with the hood open, set function A11 to OFF.
- Always have the module installed by a qualified technician to avoid damage to the vehicle.
Connection Instructions
Refer to the provided diagram and connect the necessary wires according to the color codes and pin configurations specified in the manual.
Operation
Once properly installed, you can remotely start your vehicle by following the manufacturer’s instructions for using the push-to-start system.
Vehicle functions
Program bypass option:
NOTES The vehicles OEM remote will remain functional when the vehicle is running, however, the intelligent access key will not unlock the doors when the vehicle is running
MANDATORY INSTALL
DESCRIPTION

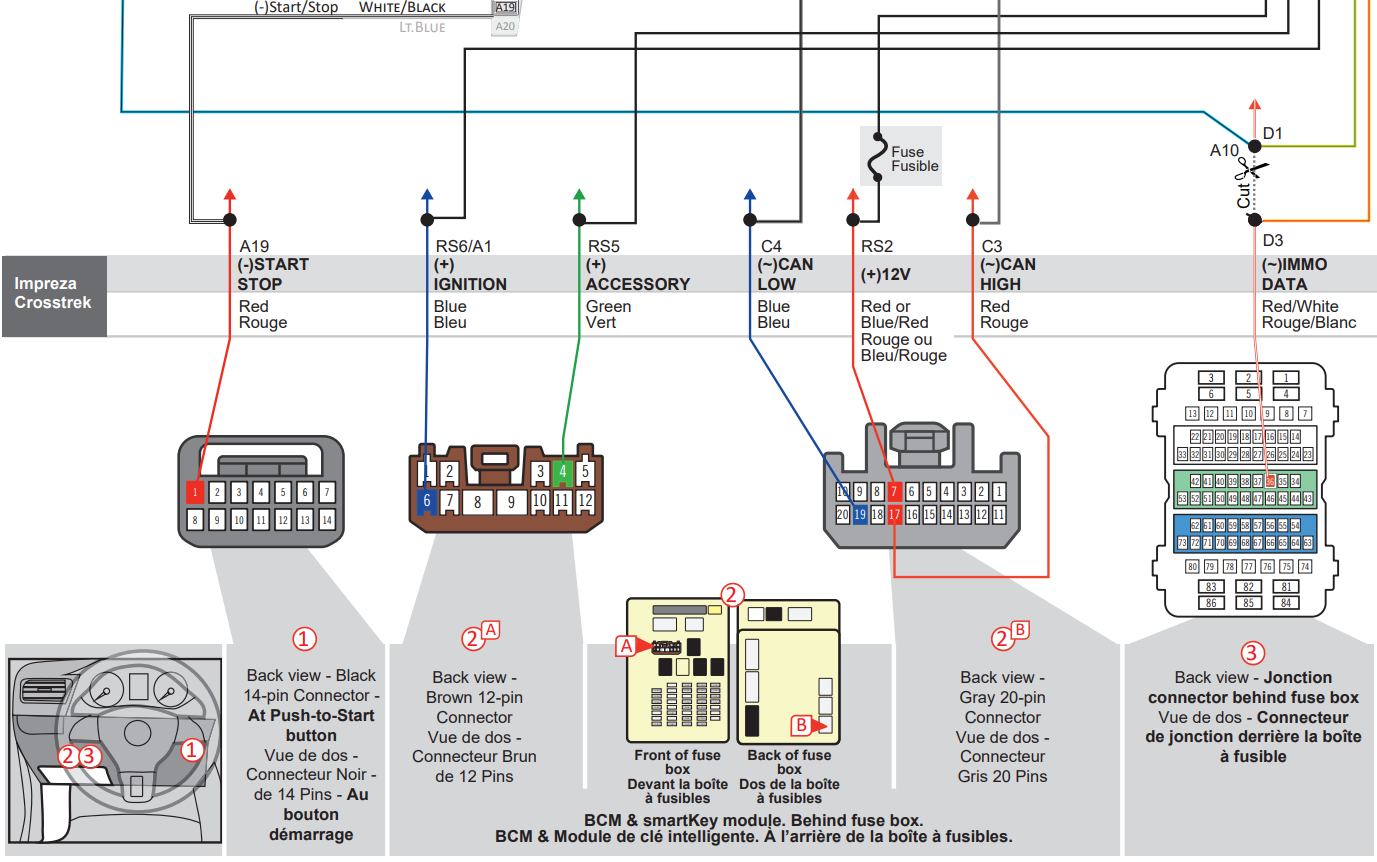

AUTOMATIC TRANSMISSION WIRING CONNECTION
DCRYPTOR PROGRAMMING PROCEDURE
PARTS REQUIRE (not included)
BEFORE PROGRAMMING SET THE UNIT OPTIONS AND SAVE
- Press and hold the programming button: Connect the 4-PIN Data-link harness (Black connector).
- The Blue, Red, Yellow and blue-red LEDs will alternatively illuminate
- Release the programming button when the LED are BLUE & RED.
- If the LED is not solid BLUE and RED disconnect the 4- Pin connector (Data-Link) and go back to step 1
- Insert the required remaining connectors
- Press and release the programming button six time (6x).
- The RED and BLUE LED will flash 5 times each second.
- Start the engine :
- Press the brake pedal.
- Press the Push-to-Start button to start the engine.
- The RED LED will flash rapidly 10x times. Key bypass programmed
- Wait for the BLUE LED will flash rapidly
- Wait for the BLUE LED will flash rapidly.
- Stop the engine: Press the Push-to-Start button once to turn off the ignition.
- Disconnect all the connectors and after the Data-Link (4-pins) connector
- Use the tool: FLASH LINK UPDATER or FLASH LINK MOBILE to visit the DCryptor menu *Parts required (not included)
- AFTER DCRYPTOR PROGRAMMING COMPLETED Go back to the vehicle and reconnect the 4-Pin (Data-Link) connector and after, all the remaining connector
REMOTE STARTER FUNCTIONALITY
Notice: Updated Firmware and Installation Guides
Updated firmware and installation guides are posted on our website on a regular basis. We recommend that you update this module to the latest firmware and download the latest installation guide(s) before the installation of this product
WARNING
The information on this sheet is provided on an (as is) basis with no representation or warranty of accuracy whatsoever. It is the sole responsibility of the installer to check and verify any circuit before connecting to it. Only a computer-safe logic probe or digital multimeter should be used. FORTIN ELECTRONIC SYSTEMS assumes absolutely no liability or responsibility whatsoever about the accuracy or currency of the information supplied. The installation in every case is the sole responsibility of the installer performing the work and FORTIN ELECTRONIC SYSTEMS assumes no liability or responsibility whatsoever resulting from any type of installation, whether performed properly, improperly, or in any other way. Neither the manufacturer or distributor of this module is responsible for damages of any kind indirectly or directly caused by this module, except for the replacement of this module in case of manufacturing defects. This module must be installed by qualified technician. The information supplied is a guide only. This instruction guide may change without notice. Visit www.fortinbypass.com to get the latest version.
MORE INFO
- Tél: 514-255-HELP (4357)
- 1-877-336-7797
- www.fortinbypass.com
FAQs
- Q: Is it necessary to install the hood pin switch?
- A: Yes, the installation of the hood pin switch is mandatory for the proper functioning and security of the system. Failure to install it may result in unauthorized remote starts.
- Q: Can I install the module myself?
- A: It is recommended to have the module installed by a qualified technician to ensure correct installation and prevent damage to the vehicle.
- Q: What should I do if I encounter issues with the remote start function?
- A: If you experience any difficulties with the remote start function, refer to the troubleshooting section in the manual or contact customer support for assistance.
