FORTIN EVO ALL 110381 Universal All in one Data Bypass and Interface Module
Specifications
- Vehicle Compatibility: SCION xD 2008-2010
- Firmware Version: 79.65
Product Usage Instructions
Data-Link Connection
Data-Link connection is required for direct connections with specific pins. Always refer to the provided wiring diagrams for accurate connections.
Overview
 |
ALL | Page 1 / 5 | REV.: | 20250411 | Guide # 110381 |
| REGULAR INSTALLATION | ADDENDUM – SUGGESTED WIRING CONFIGURATION | ||||
FIRMWARE VERSION
FIRMWARE VERSION 79.[65] MINIMUM
To add the firmware version and the options, use the FLASH LINK UPDATER or FLASH LINK MOBILE tool, sold separately.
MANDATORY INSTALL
HOOD PIN
HOOD STATUS : THE HOOD PIN SWITCH MUST BE INSTALLED ,IF THE VEHICLE CAN BE REMOTE STARTED WITH THE HOOD OPEN.
Notice: the installation of safety elements are mandatory. The hood pin is an essential security element and must be installed.
THIS MODULE MUST BE INSTALLED BY A QUALIFIED TECHNICIAN. A WRONG CONNECTION CAN CAUSE PERMANENT DAMAGE TO THE VEHICLE.
WIRING CONNECTION

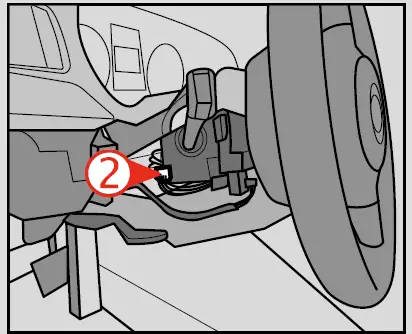

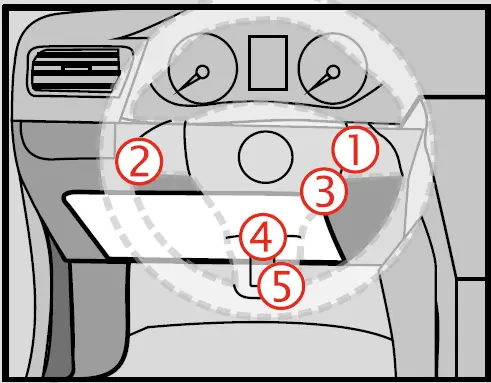

- Back view White 2-pin connector At Steering column
- At Brake switch.
- Back view Black 7-pin connector .
- Back view White 13-pin connector. At Light switch harness

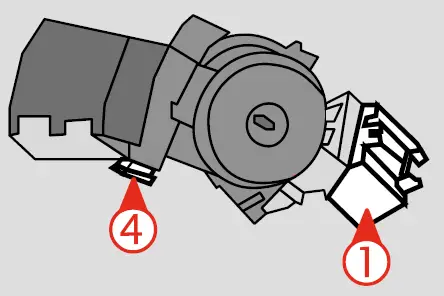

- Back view – White 8-pin Ignition harness.
PROGRAMMING PROCEDURE

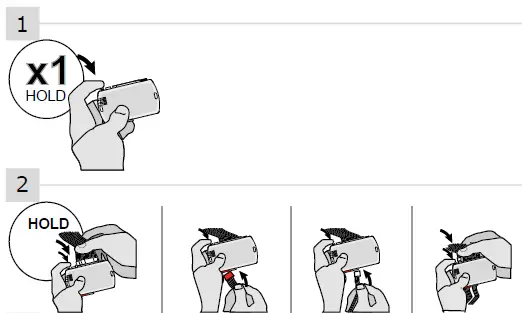

- Press and hold the programming button.
- Insert the connectors: 20 pin (White),
6 pin (Red),
5 pin (White),
2 pin (White).
(If required)
- Insert the 4-Pin (Data-Link) connector.

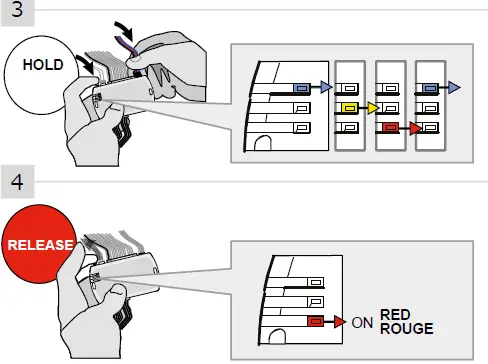

The LEDs will alternate between BLUE, YELLOW and RED flashes. - Release the programming button when the LED is RED.
If the LED is not solid RED disconnect the 4 Pin connector (Data-Link) and go back to step 1.

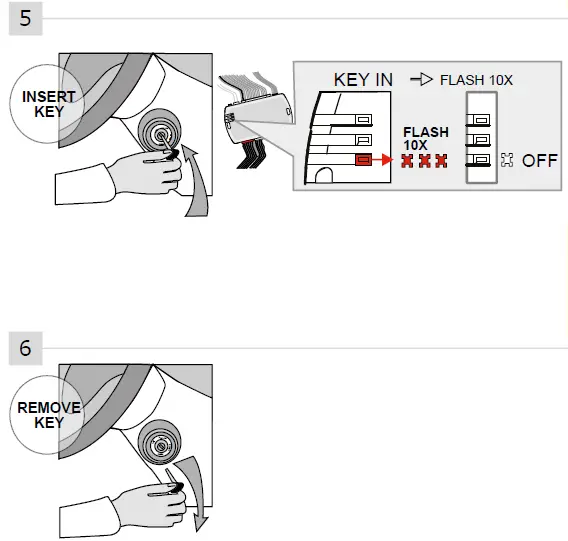

- Insert one functional key into the ignition barrel.
DO NOT turn ON the key.
The RED LED will flash rapidly 10x times.
Key bypass programmed.
If the LED is solid RED disconnect the 4 Pin connector (Data-Link) and go back to step 1.
- Remove the key from the Ignition barrel.
The module is now programmed.
Use the remote of the remote starter or security system to test all of the supported features to ensure proper programming.

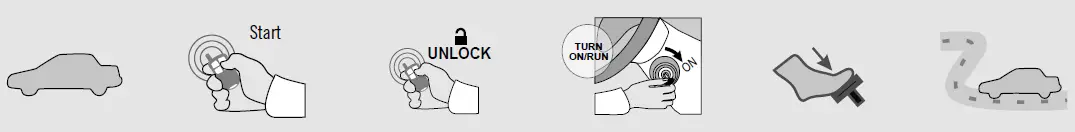

REMOTE STARTER FUNCTIONALITY
- All doors must be closed.
- Remote start the vehicle.
- Unlock the doors with the remote-starter remote or the OEM remote.
- Insert and Turn the key to the Ignition ON/RUN position.
- Press the brake pedal.
- The vehicle can now be put in to gear and driven.
Notice: Updated Firmware and Installation Guides
Updated firmware and installation guides are posted on our web site on a regular basis. We recommend that you update this module to the latest fi rmware and download the latest installation guide(s) prior to the installation of this product.
WARNING
The information on this sheet is provided on an (as is) basis with no representation or warranty of accuracy whatsoever. It is the sole responsibility of the installer to check and verify any circuit before connecting to it. Only a computer safe logic probe or digital multimeter should be used. FORTIN ELECTRONIC SYSTEMS assumes absolutely no liability or responsibility whatsoever pertaining to the accuracy or currency of the information supplied. The installation in every case is the sole responsibility of the installer performing the work and FORTIN ELECTRONIC SYSTEMS assumes no liability or responsibility whatsoever resulting from any type of installation, whether performed properly, improperly or any other way. Neither the manufacturer or distributor of this module is responsible of damages of any kind indirectly or directly caused by this module, except for the replacement of this module in case of manufacturing defects. This module must be installed by qualified technician. The information supplied is a guide only. This instruction guide may change without notice. Visit www.fortinbypass.com to get the latest version.
TECH SUPPORT
- Tél: 514-255-HELP (4357)
- 1-877-336-7797
- ADDENDUM GUIDE
- www.fortinbypass.com
- WEB UPDATE
FAQ
- Q: Is it necessary to install the hood pin switch?
- A: Yes, the hood pin switch is mandatory for vehicles that can be remote started with the hood open to ensure safety and security.
- Q: Can I install this module myself?
- A: It is recommended to have the module installed by a qualified technician to avoid any incorrect connections that may cause damage to the vehicle.
