1. Johdanto ja tuotekatsausview
The OSRAM ENDURA FLOOD PC 50W LED Projector with Sensor is a high-performance outdoor lighting solution designed for security and general illumination. It features a powerful 50W LED light source, emitting 5000 lumens of 3000K warm white light. Equipped with an intelligent motion sensor, this projector offers advanced detection capabilities for large areas such as industrial spaces, garages, and facades. Its robust construction and IP44 rating ensure reliable operation in various outdoor conditions.
This manual provides essential information for the safe installation, operation, and maintenance of your OSRAM ENDURA FLOOD PC 50W LED Projector.
2. Turvallisuustiedot
- Sähköturvallisuus: Installation and maintenance should only be performed by a qualified electrician in accordance with local electrical codes and regulations. Ensure the power supply is disconnected before any installation or servicing.
- Voitage: This product operates on 220 Volts AC. Verify your power supply matches this requirement.
- Asennus: Securely mount the projector to a stable surface. Improper mounting can lead to the unit falling and causing injury or damage.
- IP44 luokitus: The IP44 rating indicates protection against solid objects larger than 1mm and splashing water from any direction. Do not submerge the unit in water or expose it to high-pressure water jets.
- Lämpö: The LED projector may become warm during operation. Avoid touching the light surface directly when in use.
- Valon lähde: Do not stare directly into the LED light source when it is illuminated, as this may cause eye discomfort or damage.
3. Pakkauksen sisältö
Tarkista pakkauksesta seuraavat tuotteet:
- 1x OSRAM ENDURA® Flood Sensor Warm White PCR 50W Dark Grey LED Projector
- Käyttöohje (tämä asiakirja)
Image 3.1: OSRAM ENDURA FLOOD PC 50W LED Projector with its retail packaging.
4. Asennus ja asennus
The OSRAM ENDURA FLOOD PC 50W LED Projector is designed for wall mounting and surface installation. It is suitable for outdoor use in areas such as garages and facades.
4.1 Projektorin kiinnittäminen
- Valitse sijainti: Select a suitable wall mounting location that provides the desired illumination coverage and allows for optimal motion sensor detection. Consider the 9-meter detection range.
- Merkitse porauspisteet: Käytä kiinnitystelinettä mallina merkitäksesi porauskohdat seinään.
- Poraa reikiä: Drill holes at the marked points and insert appropriate wall plugs (not included, choose based on wall material).
- Turvakiinnike: Kiinnitä asennusteline seinään ruuveilla.
- Attach Projector: Securely attach the projector to the mounting bracket. Adjust the angle of the projector to direct the light as needed.
4.2 Sähköliitäntä
- Katkaise virta: Varmista, että asennusalueen päävirtalähde on katkaistu sulakkeesta.
- Johdinliitäntä: Connect the projector's electrical wires to your main power supply (220V AC) according to local electrical codes. Ensure proper grounding.
- Suojatut yhteydet: Use appropriate waterproof connectors and junction boxes for outdoor installations to maintain the IP44 rating.
- Palauta virta: Kun kaikki liitännät on varmistettu ja kiinnitetty, kytke virta takaisin piiriin.
Kuva 4.1: Edessä view of the OSRAM ENDURA FLOOD PC 50W LED Projector, showing the main light panel and the integrated motion sensor.
5. Käyttöohjeet
The OSRAM ENDURA FLOOD PC 50W LED Projector features an integrated motion sensor for automatic operation.
5.1 Liiketunnistimen säätö
The motion sensor typically has adjustable settings for:
- Tunnistusalue (SENS): Adjusts the sensitivity of the sensor, influencing the maximum distance at which motion is detected (up to 9 meters).
- Time Duration (TIME): Sets how long the light remains on after motion is detected and no further motion is sensed (typically 10 seconds to 8 minutes).
- Valoherkkyys (LUX): Determines the ambient light level at which the sensor becomes active. For example, setting it to a low LUX value means the light will only activate in very dark conditions, while a high LUX value allows it to activate in brighter conditions (typically 10-2000 lux).
Refer to the markings on the sensor unit for specific adjustment dials or switches. Test the settings after adjustment to ensure desired operation.
5.2 Valojen käyttö
Once installed and configured, the projector will automatically turn on when motion is detected within its range and the ambient light level is below the set LUX threshold. The light will remain on for the set time duration and turn off if no further motion is detected.
6. Huolto
The OSRAM ENDURA FLOOD PC 50W LED Projector is designed for minimal maintenance. However, regular checks can ensure optimal performance and longevity.
- Puhdistus: Periodically clean the surface of the projector and the sensor lens with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or the sensor. Ensure the power is off before cleaning.
- Tarkastus: Regularly inspect the mounting and electrical connections for any signs of wear, damage, or corrosion. Address any issues promptly.
- LED-elinikä: The integrated LED light source has a long operational life of approximately 30,000 hours and is not user-replaceable.
7. Vianmääritys
If you encounter issues with your projector, refer to the following troubleshooting guide:
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Valo ei syty. | No power supply. Incorrect LUX setting. Sensor blocked. | Check circuit breaker. Adjust LUX setting to a lower value or 'daylight' mode for testing. Clear any obstructions from the sensor. |
| Valo palaa jatkuvasti. | Continuous motion detected. LUX setting too high. Faulty sensor. | Ensure no constant movement in detection zone. Adjust LUX setting to a higher value. Contact support if sensor is faulty. |
| Valo syttyy päivällä. | LUX-asetus liian korkea. | Adjust LUX setting to a lower value (e.g., 'night' mode) so it only activates in darker conditions. |
| Liikettä ei havaittu. | Detection range too low. Sensor blocked or misaligned. | Increase detection range (SENS) setting. Clear sensor lens. Re-align sensor for optimal coverage. |
8. Tekniset tiedot
Detailed technical specifications for the OSRAM ENDURA FLOOD PC 50W LED Projector:
| Ominaisuus | Erittely |
|---|---|
| Merkki | OSRAM |
| Valmistaja | LEDVANCE |
| Mallinumero | 4099854487279 |
| Tuotteen mitat (P x L x K) | 17 x 7 x 22.3 cm |
| Paino | 720 grammaa |
| Väri | Tummanharmaa |
| Materiaali | Aluminum (body), Glass (shade) |
| Tehoa | 50 wattia |
| Valovirta | 5000 lumenia |
| Värilämpötila | 3000 Kelvin (lämmin valkoinen) |
| Voitage | 220 volttia (AC) |
| IP-luokitus | IP44 |
| Vaihda tyyli | Liiketunnistin |
| Asennustyyppi | Seinäkiinnitys, pintakiinnitys |
| Erityiset käyttötarkoitukset | Garage, Facades, Outdoor |
| Energiatehokkuusluokka | F |
| Liiketunnistimen kantama | Jopa 9 metriä |
| Motion Sensor Time Duration | 10 sekuntia - 8 minuuttia |
| Motion Sensor Light Sensitivity | 10–2000 luksia |

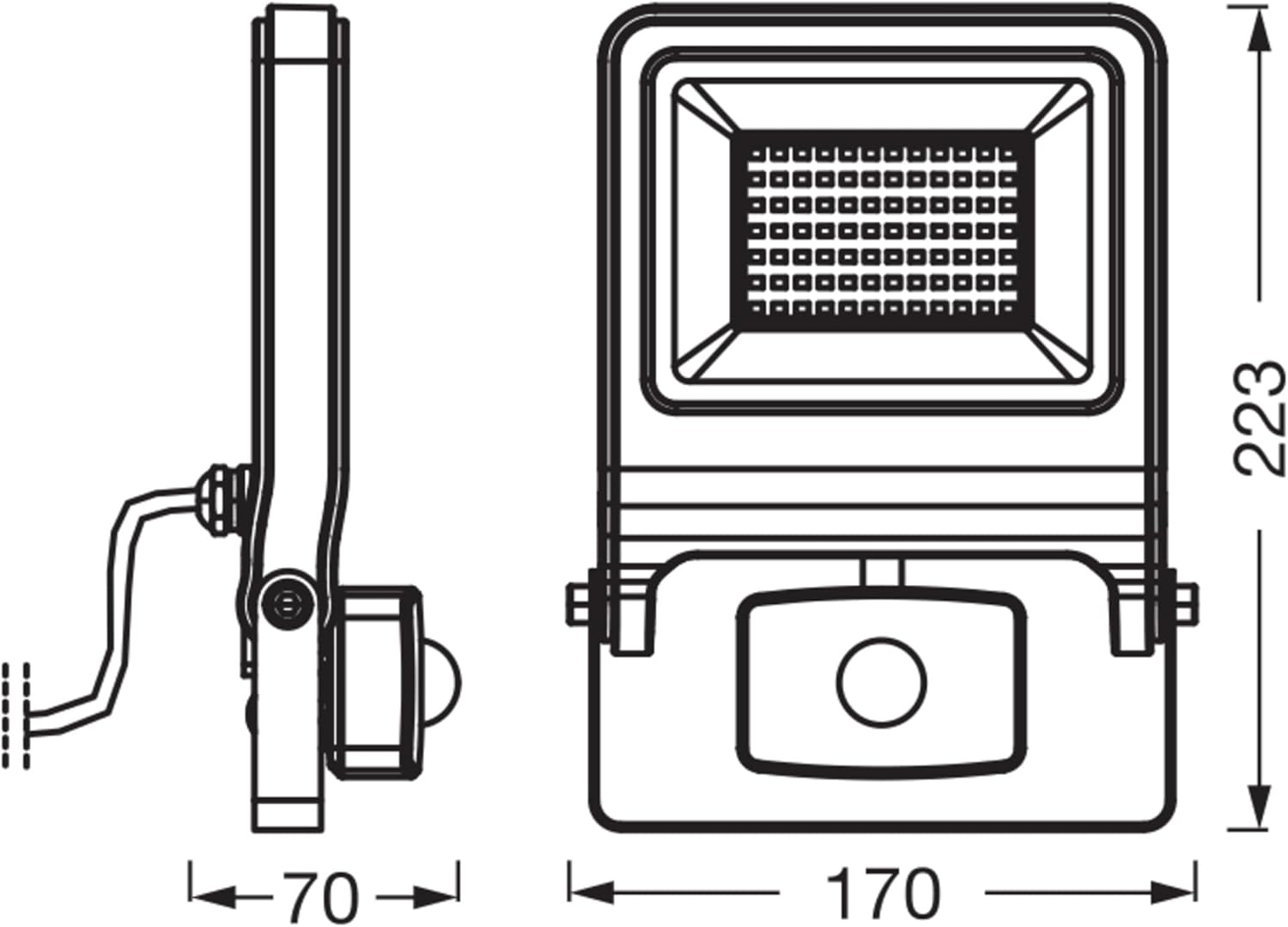

Image 8.1: Dimensional drawing of the OSRAM ENDURA FLOOD PC 50W LED Projector, showing measurements in millimeters.
9. Takuu ja tuki
This OSRAM ENDURA FLOOD PC 50W LED Projector comes with a 3 vuoden takuu ostopäivästä lukien. Säilytä ostokuitti takuuvaatimuksia varten.
For technical support, warranty claims, or further inquiries, please contact OSRAM customer service or visit the official OSRAM/LEDVANCE website. Contact information can typically be found on the product packaging or the manufacturer's websivusto.
Valmistaja: LEDVANCE
