Johdanto
The UMUTOO MG003 is a versatile portable radio designed with a retro aesthetic, offering a blend of classic radio functionality and modern connectivity. This device supports AM, FM, and Shortwave radio bands, along with Bluetooth 5.3, TF card, and USB playback options. It features a built-in rechargeable battery and also supports D-cell batteries for flexible power solutions. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your MG003 radio.
Edessä view of the UMUTOO MG003 Portable Radio, showcasing its retro design and tuning dial.
Pakkauksen sisältö
Varmista, että pakkauksessa on kaikki tarvittavat osat:
- UMUTOO MG003 Portable Radio
- Omistajan käsikirja
- Type-C-latauskaapeli
Tuote loppuview
The MG003 radio combines classic controls with modern features for a comprehensive audio experience.
The MG003 radio highlighting its multi-function capabilities including rechargeable power, phone connection, and full band radio.
Tärkeimmät ominaisuudet:
- Retro AM FM SW Radio: Equipped with an advanced DSP chip and a 50cm retractable antenna for excellent signal quality across AM, FM, and Shortwave bands.
- Multi-Function Bluetooth Speaker: Features Bluetooth 5.3 for stable wireless music streaming, and supports TF card, USB flash drive, and 3.5mm AUX input for diverse audio sources.
- Pitkäkestoinen akunkesto: Includes a built-in 1200mAh rechargeable battery (Type-C charging) providing up to 10 hours of playback, with an additional option for 2*D-cell batteries (not included) for extended use.
- Käyttäjäystävällinen muotoilu: Large, clear tuning dial and threaded knobs make station tuning easy and accessible for all ages.
- Kannettava: Designed with a large handle for easy carrying, making it suitable for both indoor and outdoor use.
- Rikas ääni: Built-in stereo and rich bass speakers deliver crisp sound and classic tonal quality without distortion.
Asennus
Laitteen virransyöttö:
The MG003 radio offers two convenient power options:
- Sisäänrakennettu ladattava akku: To charge the internal 1200mAh battery, connect the provided Type-C charging cable to the radio's charging port and then to a standard USB power adapter (not included). A full charge provides approximately 10 hours of playback.
- D-kennoiset akut: For portable use without access to a power outlet, insert two D-cell batteries (not included) into the battery compartment located on the back of the radio. Ensure correct polarity (+/-) when inserting batteries.
Tärkeä turvallisuushuomautus: When charging the built-in battery via the Type-C port, it is crucial to remove any D-cell batteries from the compartment. Failure to do so may result in damage to the radio or the batteries.

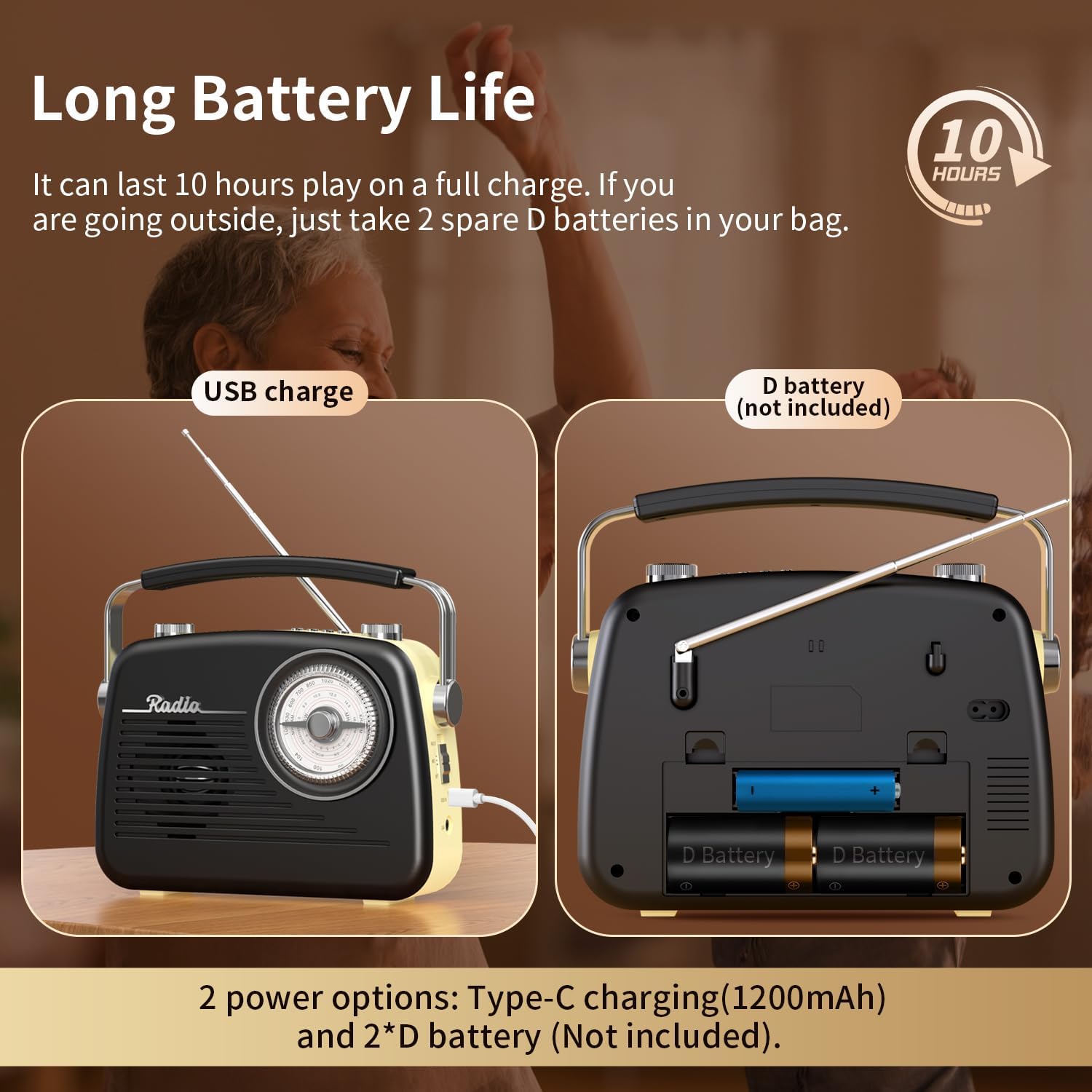

Illustration of the USB charging method and the D-cell battery compartment on the MG003 radio.
Käyttöohjeet
Radio Function (AM/FM/SW):
- Virta päälle/pois: Rotate the volume knob clockwise to turn the radio on. Continue rotating clockwise to increase volume. Rotate counter-clockwise until it clicks to turn the radio off.
- Valitse taajuusalue: Use the band switch located on the top of the radio to select between AM, FM, or SW (Shortwave) bands.
- Viritä asemia: Rotate the large tuning dial on the front panel to scan for available stations. For optimal reception, especially on FM and Shortwave bands, fully extend the telescopic antenna.
- Säädä äänenvoimakkuutta: Use the volume knob to set your desired listening level.
The MG003 radio with its telescopic antenna extended, illustrating its wide radio frequency range for FM, AM, and SW bands.
Bluetooth-tila:
- Aktivoi Bluetooth: Switch the mode selector on the radio to the "Bluetooth" position. The radio will emit an audible prompt indicating it is ready for pairing.
- Pariliitos: On your mobile device (smartphone, tablet, computer), navigate to your Bluetooth settings. Etsi available devices and select "MG003" to establish a connection.
- Toisto: Once successfully paired, you can stream audio content from your device directly to the MG003 radio.
A smartphone displaying its Bluetooth pairing screen, ready to connect with the MG003 radio.
TF Card / USB Playback:
- Lisää media: Insert a TF (MicroSD) card into the designated TF card slot or a USB flash drive into the USB port on the side of the radio.
- Automaattinen toisto: The radio will automatically detect the inserted media and begin playing compatible audio files.
- Toiston hallinta: Use the control buttons (if available, typically for skipping tracks) on the radio to manage playback.
The MG003 radio illustrating its multiple music playback modes, including TF Card and USB (U-Disk) options.
Kuulokeliitäntä:
Connect any standard 3.5mm headphones to the headphone jack on the side of the radio for private listening.
Huolto
Proper care and maintenance will extend the lifespan of your UMUTOO MG003 radio:
- Puhdistus: Use a soft, dry cloth to clean the exterior of the radio. Avoid using abrasive cleaners, solvents, or strong chemicals, as these can damage the finish.
- Akun hoito: If using D-cell batteries, remove them if the radio will not be used for an extended period (e.g., several weeks or months) to prevent potential battery leakage and corrosion. Regularly charge the built-in battery to maintain its health and capacity.
- Varastointi: Store the radio in a cool, dry place, away from direct sunlight, high humidity, and extreme temperatures.
- Antennihoito: Handle the telescopic antenna gently to prevent bending or breaking. Retract it when not in use to protect it.
Vianetsintä
If you encounter issues with your MG003 radio, refer to the table below for common problems and their solutions.
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Radio ei käynnisty | Built-in battery is depleted; D-cell batteries are dead or inserted incorrectly; Power knob is off. | Charge the built-in battery using the Type-C cable; Replace D-cell batteries, ensuring correct polarity; Rotate the power/volume knob clockwise to turn on. |
| Poor radio reception (static, weak signal) | Antenna not fully extended; Radio is in a weak signal area; Interference from other electronic devices. | Fully extend the telescopic antenna; Reposition the radio to a different location; Move the radio away from other electronics. |
| Bluetooth ei muodosta yhteyttä tai on epävakaa | Radio not in Bluetooth mode; Bluetooth on source device is off or already connected to another device; Devices are too far apart. | Ensure the radio's mode switch is set to Bluetooth; Turn on Bluetooth on your source device; Disconnect from other Bluetooth devices; Move the source device closer to the radio (within 10 meters). |
| TF card or USB playback not working | Media not inserted correctly; Incompatible file muoto; Vioittunut media. | Ensure the TF card or USB drive is fully inserted; Verify audio files are in a compatible format (e.g., MP3); Try a different TF card or USB drive. |
| Buzzing sound during Bluetooth playback | Electromagnetic interference; Low battery on either device. | Move the radio away from other electronic devices; Ensure both the radio and the connected device have sufficient battery charge. |
Tekniset tiedot
- Malli: MG003
- Merkki: UMUTOO
- Tuotteen mitat: 8.62 x 3 x 7.71 tuumaa (L x L x K)
- Tuotteen paino: 1.42 kiloa
- Virtalähde: Built-in 1200mAh Rechargeable Lithium Battery (Type-C charging) / 2 x D-Cell Batteries (not included)
- Viritintekniikka: Analoginen viritys
- Tuetut radioyhtyeet: AM (530-1710KHz), FM (88-108MHz), Shortwave (7-16.0MHz)
- Yhteystekniikka: Bluetooth 5.3, TF Card, USB, 3.5mm AUX/Headphone Jack
- Erikoisominaisuudet: Portable, Rechargeable, Retro Style
- Väri: Black (with cream/yellow accents)
- Valmistaja: Moliao
Takuu ja tuki
For information regarding product warranty, technical support, or service inquiries, please refer to the contact details provided on the product packaging or the official UMUTOO websivusto. Säilytä ostokuitti ostotodistuksena takuuvaatimuksia varten.
