Giantex L Shaped Computer Desk (Model GX10583-CB) Instruction Manual

Johdanto

This manual provides detailed instructions for the assembly, operation, and maintenance of your Giantex L Shaped Computer Desk, Model GX10583-CB. This versatile desk features a convertible design, allowing it to be configured as an L-shaped or straight desk, and includes a built-in charging station, storage shelves, and drawers. Please read these instructions carefully before assembly and use to ensure safe and proper operation.

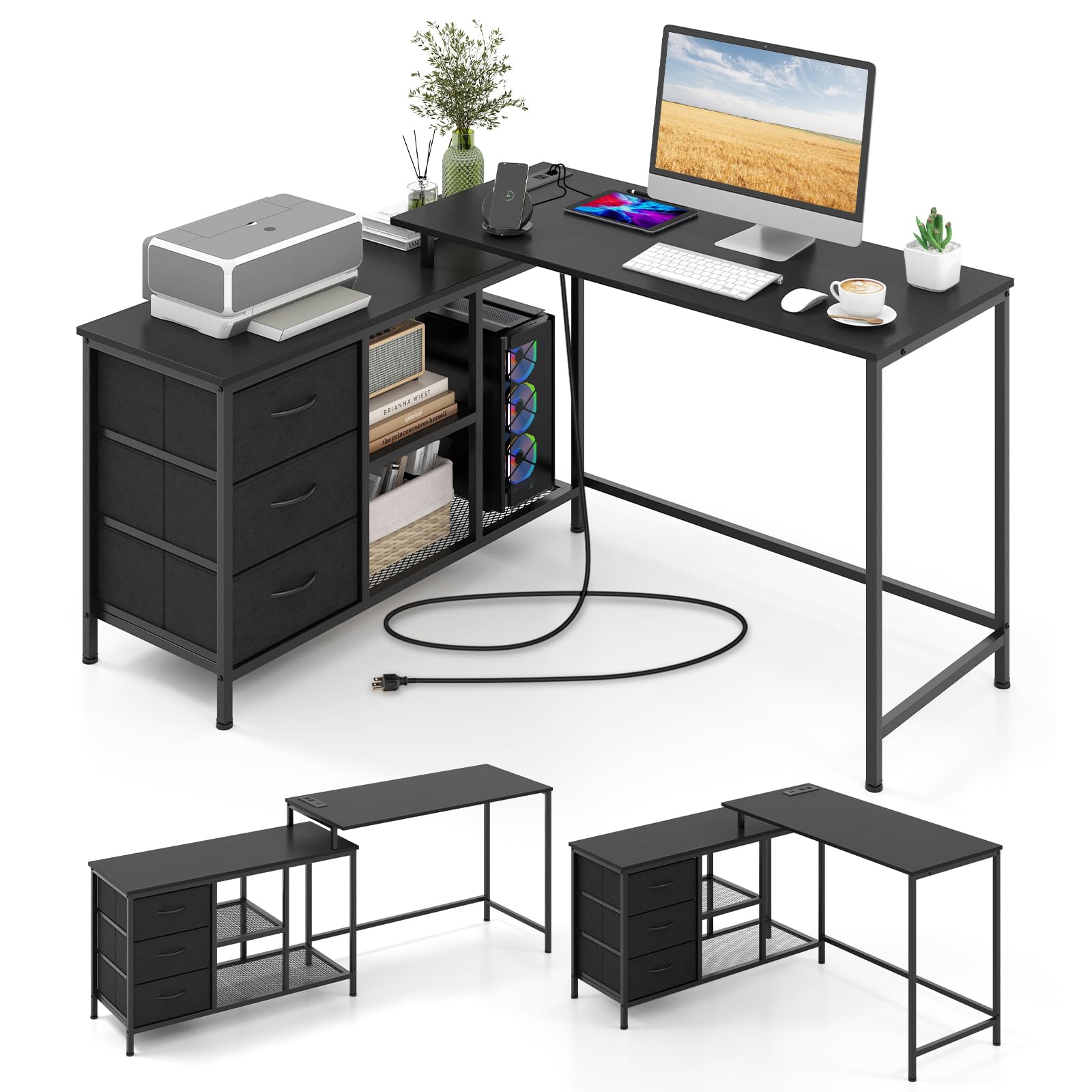

Image: The Giantex L Shaped Computer Desk in its L-shaped configuration, showcasing sen suunnittelu ja säilytysominaisuudet.

Tärkeitä turvallisuustietoja

• Kokoa työpöytä aina tasaiselle ja vakaalle alustalle.
• Use the adjustable foot pads to level the desk if necessary, ensuring stability.
• Be cautious when handling the tall, detachable tabletop to avoid injury or damage during configuration changes.
• Do not overload the desk with excessive weight, as it may compromise stability and tip over. The maximum weight recommendation for the tall table is 200 lbs, side cabinet top is 110 lbs, middle shelf is 25 lbs, bottom shelf is 35 lbs, and each drawer is 15 lbs.
• Always follow the instructions provided for safe assembly and use.
• Varmista, että kaikki ruuvit ja kiinnikkeet on kiristetty tiukasti ennen käyttöä. Tarkista ne säännöllisesti ja kiristä tarvittaessa.
• Pidä lapset ja lemmikkieläimet poissa kokoontumisalueelta.
• Do not use power tools for assembly unless explicitly instructed, as overtightening can damage components.

Image: Key stability features including screw hole covers, reinforced metal tubes, and adjustable foot pads.

Pakkauksen sisältö

Ennen kokoamisen aloittamista tarkista, että kaikki alla luetellut osat ovat mukana ja vahingoittumattomia. Jos osia puuttuu tai on vaurioitunut, ota yhteyttä asiakastukeen.

Komponentit:

• 1 x Computer Desk (main structure)
• 1 x käyttöohje
• 3 x Removable Fabric Drawers
• Metal Frame Components (various labeled parts like A, B, C, D, E, F, G, H, I, J, K, L, M)
• 1 x Charging Station (with 2 AC outlets and 2 USB ports)

Laitteisto:

• Screws (various sizes, e.g., M6*12, M4*16, M6*20, M6*30)
• Säädettävät jalkatyynyt
• Ruuvireikäsuojat
• Laatikon kahvat
• Hex jakoavaimella
• Ruuvimeisseli

Image: A visual representation of all desk components and hardware included in the package.

Kokoamisohjeet

Follow these steps carefully to assemble your L Shaped Computer Desk. It is recommended to have two people for assembly.

1. Step 1: Assemble the Side Cabinet Frame Base. Attach the adjustable foot pads to the bottom of the metal frame parts C, E, and K.
2. Step 2: Connect Side Cabinet Frame Sections. Securely attach frame part C to part I using the provided screws. Then, attach frame part E to part I.
3. Step 3: Install Crossbars for Side Cabinet. Attach the G crossbars to the side cabinet frame using screws.
4. Step 4: Insert Middle Shelf. Place the mesh shelf H into the designated slots within the side cabinet frame and secure it with screws.
5. Step 5: Attach Top Crossbars for Side Cabinet. Secure the F crossbars to the top of the side cabinet frame using screws.
6. Step 6: Attach Side Cabinet Top Panel. Place the main tabletop panel A onto the assembled side cabinet frame and secure it with screws.
7. Step 7: Assemble Fabric Drawers. Unfold the fabric drawers (N), insert the bottom panel, and attach the handles using the small screws.
8. Step 8: Insert Drawers into Side Cabinet. Slide the assembled fabric drawers into the designated slots in the side cabinet.
9. Step 9: Assemble the Long Desk Frame. Attach the L crossbars to the underside of the long desk tabletop panel B. Then, attach the K and J frame parts to the long desk tabletop panel B using screws.
10. Step 10: Connect Long Desk to Side Cabinet. Attach the M crossbar to the long desk frame. Connect the long desk assembly to the side cabinet assembly.
11. Step 11: Install Charging Station. Insert the charging station into the pre-cut opening on the long desk tabletop and secure it with screws.

Avoauton suunnittelu:

The desk can be configured in two main ways: an L-shaped corner desk or a long straight desk. The tall tabletop section is detachable, offering flexibility to create a smaller study writing desk if desired. To convert, carefully detach or reattach the tall tabletop section as needed, ensuring all connections are secure.

Image: Illustration of the desk's flexible combinations, showing how it can adapt to different spaces.

Image: The desk configured as an L-shaped corner desk, suitable for various office setups.

Image: The desk configured as a long straight desk, offering an extended workspace.

Käyttöohjeet

Latausasema:

The desk is equipped with a built-in charging station for your convenience. It includes:

• 2 AC-pistorasiaa (125 V / 12 A)
• 2 USB Ports (5V/Max. 2.1A)

To use, simply plug the desk's power cord into a standard wall outlet. You can then connect your electronic devices to the AC outlets or USB ports for charging or power. Ensure devices are compatible with the provided power specifications.

Image: The integrated charging station with AC outlets and USB ports for convenient device power.

Tallennusominaisuudet:

The desk offers ample storage to keep your workspace organized:

• 3 Removable Fabric Drawers: Ideal for stationery, documents, and personal items.
• 2-Tier Open Shelf: Suitable for books, binders, or decorative items.
• Spacious Host Stand: Designed to accommodate a computer tower or other larger equipment.

Kuva: Yliview of the desk's storage solutions, including drawers, shelves, and a host stand.

Huolto

• Puhdistus: Pyyhi pinnat pehmeällä, damp liinalla. Vältä voimakkaita kemikaaleja tai hankaavia puhdistusaineita, jotka voivat vahingoittaa pintaa.
• Laitteiston tarkistus: Tarkista säännöllisesti kaikki ruuvit ja kiinnikkeet varmistaaksesi, että ne ovat kireällä. Kiristä tarvittaessa vakauden säilyttämiseksi.
• Laatikon hoito: The fabric drawers can be spot cleaned with a mild detergent. Ensure they are completely dry before returning them to the desk.
• Tehoyksikkö: Keep the charging station free from dust and spills. Do not attempt to disassemble or repair the power unit yourself.

Vianetsintä

• Pöydän huojuvat: Ensure all assembly screws are tightened. Use the adjustable foot pads at the bottom of the desk legs to level the desk on uneven floors.
• Latausasema ei toimi: Verify that the desk's power cord is securely plugged into a functional wall outlet. Check if the devices you are trying to charge are properly connected and compatible with the charging station's specifications.
• Laatikot eivät liuku tasaisesti: Ensure the fabric drawers are correctly assembled and inserted. Check for any obstructions in the drawer slots.
• Puuttuvat/vaurioituneet osat: If you discover any missing or damaged parts during assembly, please refer to the "Warranty and Support" section for contact information.

Tekniset tiedot

Image: Dimensional drawing and load capacities for the desk components.

Takuu ja tuki

This Giantex L Shaped Computer Desk comes with a limited warranty. For specific warranty details, please refer to the documentation included with your purchase or contact Giantex customer support.

Palautukset: The product is eligible for 30-day easy returns. Please check the retailer's return policy for full details.

Asiakastuki: For assistance with assembly, missing parts, or any other inquiries, please visit the Giantex-kauppa Amazonissa tai ota yhteyttä suoraan heidän asiakaspalveluunsa.
