GM Genuine Parts Engine Crankshaft Oil Deflector User Manual

1. Tuote ohiview

The GM Genuine Parts Engine Crankshaft Oil Deflector, model 12558189, is an original equipment (OE) component designed for specific GM vehicles. This part, also known as an Engine Oil Sump Windage Tray, is crucial for managing oil flow within the engine's crankcase, helping to prevent oil from interfering with the crankshaft's rotation and ensuring proper lubrication.

GM Genuine Parts are engineered and tested to rigorous standards to ensure optimal performance and compatibility with your vehicle. These parts are the same components installed during vehicle production or validated by General Motors.

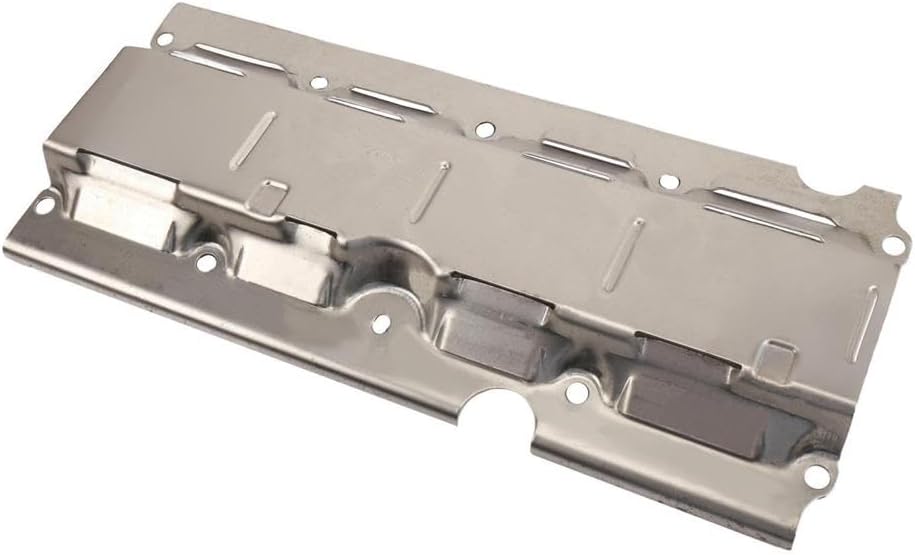

Kuva 1.1: Edessä view of the GM Genuine Parts Engine Crankshaft Oil Deflector (Model 12558189). This image shows the metallic, elongated component with various cutouts and mounting holes, designed to fit within an engine's oil sump.

2. Mitä laatikossa on

Upon opening the product packaging, you will find the following component:

• One (1) Engine Oil Sump Windage Tray (GM Part Number 12558189)

Image 2.1: An alternate perspective of the GM Genuine Parts Engine Crankshaft Oil Deflector. This view highlights the contours and specific design features of the deflector, which are critical for its function in managing oil splash around the crankshaft.

3. Asennus ja asetukset

Installation of an engine crankshaft oil deflector is a complex procedure that requires specialized tools, knowledge of automotive mechanics, and adherence to specific torque specifications and procedures outlined in the vehicle's service manual. Improper installation can lead to engine damage.

On erittäin suositeltavaa, että tämän komponentin asentaa sertifioitu autoasentaja.

3.1. Yhteensopivuuden varmennus

Before installation, ensure that this part (Model 12558189) is compatible with your specific vehicle's make, model, and year. Refer to your vehicle's service manual or consult with a GM dealership or certified mechanic for compatibility confirmation.

3.2. General Installation Considerations (For Professional Use)

1. Varmista, että moottori on jäähtynyt ja irrotettu akusta.
2. Drain the engine oil and remove the oil pan according to the vehicle's service manual.
3. Carefully remove the old oil deflector, noting its orientation.
4. Clean all mating surfaces thoroughly, removing any old gasket material or debris.
5. Install the new GM Genuine Parts 12558189 oil deflector in the correct orientation.
6. Secure the deflector using new fasteners if specified, and torque them to the manufacturer's exact specifications.
7. Reinstall the oil pan with a new gasket and refill the engine with the appropriate type and amount of oil.
8. Perform a leak check and verify proper engine operation after installation.

Note: These are general guidelines. Always follow the specific procedures outlined in your vehicle's official service manual.

4. Toiminta ja toiminta

The Engine Crankshaft Oil Deflector (Windage Tray) operates passively within the engine. Its primary function is to:

• Reduce Windage: As the crankshaft rotates at high speeds, it can churn the oil in the sump, creating a frothy mixture known as "windage." This reduces engine efficiency and can lead to oil aeration. The deflector minimizes this churning effect.
• Improve Oil Control: It helps to direct oil away from the rotating crankshaft and connecting rods, allowing it to drain back into the oil pan more efficiently. This ensures that the oil pump has a consistent supply of oil and prevents oil from being whipped into a foam.
• Enhance Lubrication: By controlling oil splash and ensuring proper drainage, the deflector contributes to consistent oil pressure and effective lubrication of critical engine components.

Once installed correctly, the deflector performs its function continuously as the engine operates, requiring no user interaction.

5. Huolto

The GM Genuine Parts Engine Crankshaft Oil Deflector is a durable component designed for long-term service. It typically does not require routine maintenance or replacement unless damage occurs or it is removed during other engine repairs.

• Tarkastus: During any engine service that involves removing the oil pan, inspect the oil deflector for signs of damage, bending, or corrosion. Replace if any issues are found.
• Puhdistus: If removed, the deflector can be cleaned with appropriate automotive degreasers to remove oil sludge or debris before reinstallation. Ensure it is thoroughly dry before reassembly.

Always use genuine GM parts for replacement to ensure proper fit and function.

6. Vianmääritys

As a passive internal engine component, the oil deflector itself is not typically a source of direct "troubleshooting" symptoms that a user would observe. However, issues related to its function can manifest as broader engine problems.

6.1. Potential Symptoms of a Damaged or Incorrectly Installed Deflector

• Matala öljynpaine: While many factors can cause low oil pressure, a severely damaged or dislodged windage tray could potentially contribute by disrupting oil return to the sump.
• Excessive Oil Consumption/Smoking: If oil is excessively churned by the crankshaft due to a missing or damaged deflector, it could lead to oil aeration and potentially affect PCV system operation, leading to increased oil consumption or blue smoke from the exhaust.
• Epätavalliset moottorin äänet: In rare cases, a loose or broken deflector could cause rattling or knocking noises if it comes into contact with rotating engine components.

If you experience any of these symptoms, it is crucial to have your vehicle inspected by a qualified mechanic immediately. Diagnosis of internal engine components like the oil deflector requires specialized diagnostic procedures and often involves disassembling parts of the engine.

7. Tekniset tiedot

8. Takuu ja tuki

GM Genuine Parts are backed by General Motors, ensuring quality and reliability. Specific warranty terms and conditions may vary. For detailed warranty information, please refer to the documentation included with your purchase or contact a GM authorized service center or dealership.

8.1. Asiakastuki

For technical assistance, compatibility questions, or warranty claims, please contact your local authorized GM dealership or visit the official GM Genuine Parts website. Always provide your vehicle's VIN and the part number (12558189) when seeking support.

9. Tärkeitä turvallisuustietoja

VAROITUS: This product can expose you to chemicals including carbon black, which is known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Always wear appropriate personal protective equipment (PPE) when handling automotive parts and working on vehicles. Ensure proper ventilation in your workspace.
