1. Johdanto
This manual provides comprehensive instructions for the installation, operation, and maintenance of your XTC Power Products Maverick Plug & Play 4 Switch Power Control System (PCS-44-MAV-NS). This system is designed to simplify the addition of accessories to your Can Am Maverick by providing a centralized and protected power distribution solution.
Lue tämä käyttöohje huolellisesti ennen asennusta ja käyttöä varmistaaksesi laitteen oikean toiminnan ja turvallisuuden.
2. Turvallisuustiedot
- Irrota aina ajoneuvon akku ennen sähkötöiden tekemistä sähköiskun tai vaurioiden välttämiseksi.
- Varmista, että kaikki liitännät ovat tukevasti kiinni ja asianmukaisesti eristettyjä oikosulkujen välttämiseksi.
- Älä ylitä suurinta sallittua virtaa 20 Amps for the system.
- Jos olet epävarma jostakin asennusprosessin osasta, ota yhteyttä pätevään teknikkoon.
- Käytä asianmukaisia henkilönsuojaimia asennuksen aikana.
- This product is designed for 12V DC automotive applications only.
3. Pakkauksen sisältö
Varmista, että kaikki osat ovat mukana ennen asennuksen aloittamista:
- XTC Power Control System Module
- Main Power Harness with Fuse Holder
- 4-Way Switch Harness (for connecting up to four switches)
- Battery Terminal Connectors
- Nippusiteet kaapelien hallintaan
- Asennusohjeet (tämä käsikirja)

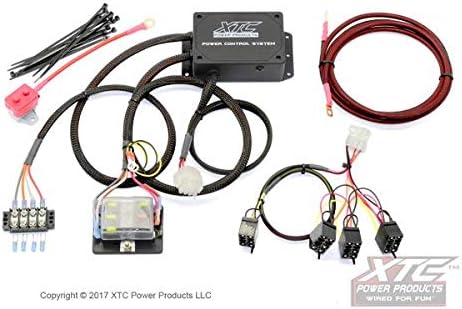

Figure 1: Complete XTC Power Control System kit including the main module, wiring harnesses, battery terminals, and zip ties.
4. Asennus ja asennus
Follow these steps carefully to install the XTC Power Control System:
- Irrota akku: Before starting, disconnect the negative terminal of your vehicle's battery to prevent electrical hazards.
- Ohjausmoduulin asentaminen: Select a secure, dry location for the main XTC Power Control System module. Use appropriate fasteners (not included) to mount it firmly. Ensure it is away from excessive heat or moving parts.
- Connect Main Power Harness:
- Connect the main power harness (red wire with fuse holder) to the positive terminal of your vehicle's battery.
- Connect the ground wire (black) from the main harness to a suitable chassis ground point.
- Route the main power harness to the control module, ensuring it is protected from abrasion and heat.
- Connect Switch Harness:
- Locate the 4-way switch harness. This harness connects your accessory switches to the control module.
- Plug the main connector of the 4-way switch harness into the corresponding port on the XTC Power Control System module.
- Connect your individual accessory switches (not included) to the four available connectors on the switch harness. Each connector provides power and ground for one switch.
Figure 2: The 4-way switch harness, designed to connect up to four individual accessory switches to the main control module.
- Liitä tarvikkeet: Connect your accessories to the output terminals provided by the XTC Power Control System module. Refer to the module's labeling for specific output channels. Ensure each accessory's current draw does not exceed the system's capacity.
- Turvallinen johdotus: Use the provided zip ties to neatly secure all wiring, keeping it away from hot engine components, sharp edges, and moving parts.
- Liitä akku uudelleen: Once all connections are secure and verified, reconnect the negative terminal of your vehicle's battery.
- Testijärjestelmä: Turn on your vehicle and test each connected accessory to ensure proper operation.
5. Käyttöohjeet
The XTC Power Control System operates by providing fused and switched power to your accessories. Once installed, operation is straightforward:
- Virran kytkeminen päälle/pois: Each accessory connected to the system is controlled by its dedicated switch. Simply toggle the switch to turn the connected accessory on or off.
- Merkkivalot: If your switches include indicator lights, they will illuminate when the accessory is active, providing visual confirmation of operation.
- Sulakkeen suojaus: The system incorporates fuse protection for each circuit. In the event of an overcurrent, the corresponding fuse will blow, protecting your accessory and the vehicle's electrical system.
6. Huolto
The XTC Power Control System is designed for minimal maintenance. However, periodic checks are recommended:
- Tarkista johdotus: Periodically check all wiring for signs of wear, fraying, or damage. Ensure all connections remain tight and secure.
- Tarkista sulakkeet: If an accessory stops working, check the corresponding fuse in the system's fuse holder. Replace blown fuses only with fuses of the correct ampikäluokitus (20 Amps maximum per circuit, refer to specific accessory requirements).
- Clean Module: Keep the control module clean and free of dirt, dust, and moisture. The IP54 rating provides protection against dust and splashing water, but it is not submersible.
7. Vianmääritys
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Lisälaite ei käynnisty. | Palanut sulake. | Check and replace the fuse for that circuit. Ensure the replacement fuse matches the original ampikäluokitus. |
| Lisälaite ei käynnisty. | Löysä johtoliitäntä. | Inspect all connections, especially at the battery, control module, and accessory. Tighten as necessary. |
| Lisälaite ei käynnisty. | Faulty switch or accessory. | Test the switch and accessory independently to confirm they are functioning correctly. |
| System not receiving power. | Main fuse blown or battery disconnected. | Check the main fuse near the battery. Ensure the battery is properly connected and charged. |
If troubleshooting steps do not resolve the issue, contact XTC Power Products customer support for assistance.
8. Tekniset tiedot
- Malli: PCS-44-MAV-NS
- Toimintatila: Plug & Play
- Nykyinen luokitus: 20 Amps (per circuit, maximum)
- Liittimen tyyppi: Screw terminals for outputs, proprietary for harnesses
- Piirin tyyppi: 4-way (supports up to 4 accessories)
- Kansainvälinen suojaluokitus: IP54 (pöly- ja roiskevesisuojattu)
- Asemien lukumäärä: 4 (for switches)
- Valvontamenetelmä: External switches (not included)
- Tuotteen mitat (P x L x K): 4.3 x 8.8 x 11.3 tuumaa
- Tuotteen paino: 3.39 kiloa
- Valmistaja: XTC Power -tuotteet
9. Takuu ja tuki
For warranty information or technical support, please contact XTC Power Products directly. Keep your purchase receipt as proof of purchase.
Yhteystiedot löytyvät yleensä valmistajan viralliselta verkkosivulta. websivusto tai tuotepakkaus.
