ELS | ZigBee Water Leak Sensor
Quick Guide
Device description
- Function button
Pressing for 8 seconds activates pairing mode and factory reset - Two colour LED diode
Flashing reed – active pairing mode with the application Single red flash – motion detection - Flood Sensors
- Battery socket
Technical specifications
| Power supply | Battery CR2032 |
| Communication | ZigBee 3.0, 2.4GHz |
| IP protection class | IP66 |
| Dimensions [mm] | Φ50×18 |
Introduction
The battery-powered Water Leakage Sensor is communicating via ZigBee 3.0 protocol. The sensor is characterised by its high sensitivity and speed of water leakage detection. It reacts immediately to the presence of water, minimising the risk of damage caused by flooding. With in-app alarms and LED signalling, the user is immediately informed about the leakage. The ZigBee internet gateway is required for installation in the app.
Product features
 |
Works with ENGO Smart (Compatible with Tuya App) |
 |
ZigBee 3.0 communication standard |
 |
Leakage detector |
 |
Small size of the device |
Product Compliance
This product complies with the following EU Directives: 2014/53/EU, 2011/65/EU.
Safety information
Use in accordance with national and EU regulations. Use the device only as intended, keeping it in a dry condition. The product is for indoor use only. Installation must be carried out by a qualified person in accordance with national and EU regulations.
Installation
Installation must be performed by a qualified person with appropriate electrical qualifications, in accordance with the standards and regulations in force in a given country and in the EU. The manufacturer is not responsible for non-compliance with the instructions.
ATTENTION:
For the entire installation, there may be additional protection requirements, which the installer is responsible for.
Installation sensor in the app
Make sure your router is within range of your smartphone. Make sure you are connected to the Internet. This will reduce the pairing time of the device.
STEP 1 – DOWNLOAD ENGO SMART APP
Download the ENGO Smart app from Google Play or Apple App Store and install it on your smartphone.
https://engocontrols.com/redirect-app/
STEP 2 – REGISTER THE NEW ACCOUNT
To register a new account, please follow the steps below:
 |
 |

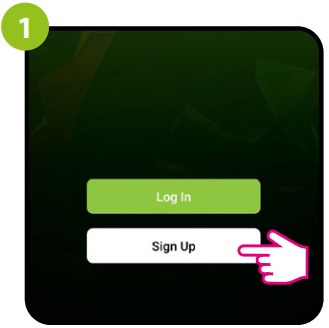

| Click „Register” to create new account. | Enter your e-mail address to which the verification code will be sent. |
 |
 |
| Enter the verification code received in the email. Remember that you only have 60 seconds to enter the code!! | Then set the login password. |
STEP 3 – CONNECT THE SENSOR TO ZigBee network
After installing the application and creating an account, follow these steps:
 |
 |
| Make sure ZigBee gateway has been added to the Engo Smart app. Press and hold the button for about 10 seconds until the green LED starts flashing. The sensor will enter pairing mode. |
|
 |
 |
| Enter the gateway interface. | In, Zigbee devices list” go „Add devices”. |
 |
 |
| Wait until the application finds the device and click ”Done”. | The sensor has been installed and displays the main interface. |
https://engocontrols.com/redirect-app/
Ver. 1.0
Release date: VIII 2024
Soft: V1.0.3
Producer:
Engo Controls sp. z o.o. sp. k.
43-262 Kobielice
Rolna 4 St.
Poland
www.engocontrols.com
