EMX INDUSTRIES KPX-100 Programmable Keypad User Guide

KPX-100 ™
Programmable Keypad
Quick Start Guide

KPX-100 Quick Start Guide (Single-User-Mode)

Contents hide

KPX-100 Programmable Keypad

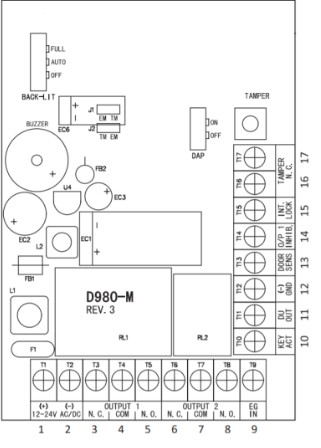

This guide is to set up a simple single user code for activating the KPX-100. Apply 12–24 Volts to T1 and T2. Wire T4 and T5 to the Free Exit/ Exit loop terminal as specified by your operator.

To enter programming mode Press The center amber light will turn solid to denote 0 0 0 0 * programming mode.
Enter
The keypad will beep twice.
This will set the device to single user mode.
NOTE: this command factory resets existing codes

Enter ,followed by your desired four digit code, 1 followed by #. The Kpx-100 will beep twice. This number CANNOT match the programming code.
(Optional) Press followed by your desired four digit PROGRAMMING CODE followed by #. The keypad will beep twice. ←Write new programming code and store in a secure location. 0

Press * to exit programming mode.
The amber light will resume blinking.
Enter the four digit opening code you assigned in step 3.
The keypad will activate on the 4th digit

This guide is to set up 3 simple codes for multi-user-mode to activate the KPX-100. Apply 12-24 Volts to T1 and T2. Wire T4 and T5 to the Free Exit/ Exit loop terminal as specified by you operator.

To enter programming mode Press The amber light will turn solid to denote programming mode.
Enter
The keypad will beep twice.
This will set the device to Multi-User-Mode.
Note: Do step 4 first if using 5–8 digit codes instead of 4 digit codes. ENTRY CODES AND PROGRAMMING CODE MUST BE THE SAME LENGTH.
The Kpx-100 can support up to 100 codes numbered 0–99 Entry codes can match across users.
The programming code in step 4 cannot match any entry code in the system.

Code 1: Enter
Code 2: Enter
Code 3: Enter
(Optional) Enter followed by your desired 4-8 digit PROGRAMMING CODE followed by #. 0 The keypad will beep twice. Entry codes must be the same length as the programming code. (Examples: Programming code Entry code , Programming code Entry code ) ←Write new programming code and store in a secure location.

Press * to exit programming mode The amber light will resume blinking.
Enter the opening code you assigned in step 3 followed by #. The relay will activate.
