EMERSON Update Advisory Supervisory Control Platform Firmware 2.23F02 User Guide
Update Advisory Supervisory Control Platform Firmware 2.23F02 Release Notes
IMPORTANT:
- Reset or power cycle an upgraded E3 approximately10 minutes after the upgrade is

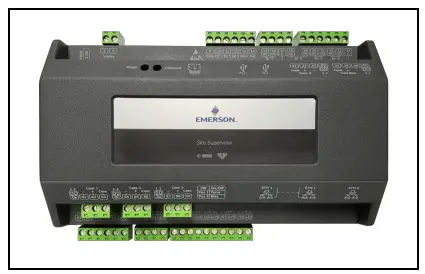

Figure 2 – Site Supervisor Controller
Who Should Update
Emerson recommends that all customers upgrade their Supervisory controllers and PCs running Connect+ to the latest version to take advantage of the latest fixes and enhancements listed in Table 3.
All customers who use any of the features below are advised to upgrade to Supervisory controller 2.23F02, and customers using any of the features listed in Table 3.
- Processor
Interface Board (PIB)
- R448A Refrigerant
- Floor Plans
- REST
- Logs

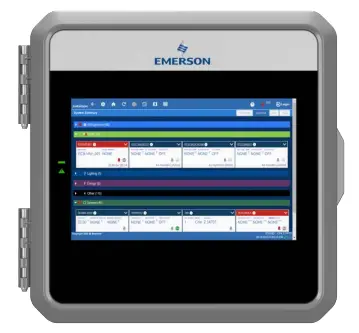

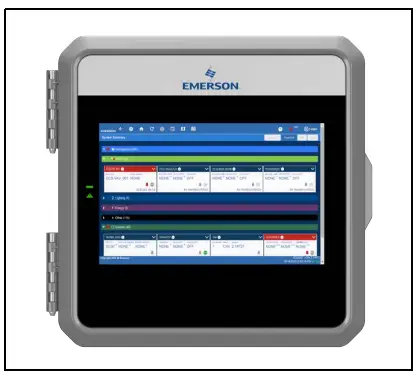

Figure 1 – E3 Controller
CONNECT+ UPDATE RECOMMENDED
| Supervisory Controller Version | Recommended Connect+ Version |
| 2.23F02 | 1.5.6F01 |
Table 1 – Supervisory Controller and Connect+ Compatibility Matrix It is recommended to upgrade to the latest Connect+ version. If you plan to upgrade Supervisory controllers and Connect+ at the same time, upgrade Connect+ to the latest version first, then update the Supervisory controllers. Contact Emerson for more information about upgrading.
CONTROLLER FIRMWARE COMPATIBILITY
| Firmware | Platform |
| E3_#.#####_ Display_Update | E3 only |
| E3_#.#####_ Firmware_Update | E3 and Site Supervisor |
| SS_#.#####_ Firmware_Update | Site Supervisor only |
Table 2 – Firmware Platform Mapping
|
Feature and Fix Descriptions |
Supported in Supervisory Controllers 2.23F02 |
| Feature | |
| System
DHCP & NTP: If the DHCP lease includes the NTP server IP address when enabled: a. At least one IP will be checked to verify if there is a valid NTP server IP. b. If at least one IP is a valid NTP server IP, the existing NTP server configuration will be replaced with these new IPs. |
ü |
| Fixes | |
| E3 Processor Interface Board (PIB)
Ø Added time stamp to PIB log. Ø Added new PIB log report. Ø PIB will no longer intermittently restart for “socket error -5” |
ü |
| REST Reset Advisory (Service Log)
Ø If advisories are reset by the REST interface, memory leak will not occur. |
ü |
| Refrigerants
Ø R448A refrigerant is now converting correctly. |
ü |
| System Logs
Ø The PIB Error Log will no longer appear truncated. |
ü |
| Floor Plans
Ø File size limit has been increased. |
ü |
Table 3 – Supervisory Controller 2.23F02 Feature and Fix Matrix
Document Part # 026-4083 Rev 2
©2023 Emerson Digital Cold Chain, Inc. This document may be photocopied for personal use.
Visit our website at www.climate.emerson.com for the latest technical documentation and updates.
Update Supervisory Controller Firmware
For more information on firmware upgrades, see the 026-4184 Upgrade Advisory: https://climate.emerson.com/documents/026-4184-upgrade-advisory-for-all-supervisory-controller-versions-before-2-19f01-en- 7981974.pdf
For more information on E3 firmware upgrades before 2.20F03, see the 026-4185 Upgrade Advisory
https://climate.emerson.com/documents/026-4185-upgrade-advisory-for-e3-controller-versions-below-2-20f03-en-8070726.pdf
Supported Browsers
- Microsoft Edge v88 and later
- Mozilla Firefox 11 and later
- Google Chrome 0 and later
- Apple Safari® on iOS10 (iPhone® 5C, iPad® 4) and later
- Webview on Android 5.0 (Samsung Galaxy S4) and later
For Emerson Digital Cold Chain Technical Support
Document Part # 026-4083 Rev 2 Page 3 of 3
This document may be photocopied for personal use.
Visit our website at www.climate.emerson.com for the latest technical documentation and updates.
Join Emerson Technical Support on Facebook http://on.fb.me/WUQRnt
For Technical Support call 833-409-7505 or email ColdChain.TechnicalServices@Emerson.com
The contents of this publication are presented for informational purposes only and they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. Emerson reserves the right to modify the designs or specifications of such products at any time without notice. Responsibility for proper selection,
use and maintenance of any product remains solely with the purchaser and end-user. ©2023 Emerson is a trademark of Emerson Electric Co
