USE INSTRUCTION
Terminal Address Programmer
| PRG.PAS.MCS |
| 170 x 112 x 35 mm/ 270 g |
| Plastic case + mechanical keyboard 0°C … 45°C – IP 31 |
| Power supply: 9V (battery/rechargeable battery) |
| Connection to the terminal via UTP Patch Cable 0.25 cm |
| Addresses available for programming: between “000” and “998” Typing “999” ends the address programming. |
DESCRIPTION

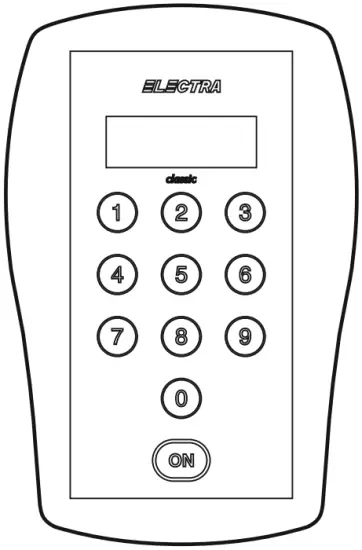

The PRG.PAS.MCS programmer allows the programming of the address (apartment number) for all types of terminals in the Classic Line range: PAS.17A, PAS.27X, PAS.37X, MCS.47X.
This programmer serves as the mobile alternative to the terminal address programming function, enabling the address to be programmed both on-site and in the office, by a single person.

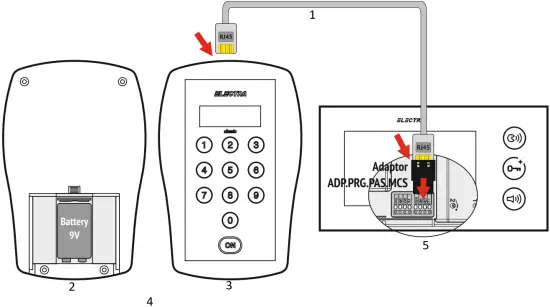

CONNECTION TO THE TERMINAL
- UTP Patch Cable 0.25 cm
- Back
- Front
- PRG.PAS.MCS Programmer
- Terminal video – audio (MCS.47X, PAS.27X, PAS.37X)
ON/ OFF
- The programmer is turned on by pressing the ON key.
- The programmer turns off:
– 3 seconds after entering the last digit of the programmed address;
– 10 seconds after being turned on, if no key is pressed.
PROGRAMMING
Step 1: Connect the programmer to the terminal.
Step 2: Press the ON key on the programmer → The display shows [Adresa post].
Step 3: On the terminal, press and hold the
key.
Step 4: On the programmer, enter the terminal address to be programmed (3 digits required). After entering the last digit, the terminal will issue a confirmation beep, and the key can be released.
07.2025 INS.PRG.PAS.MCS
MADE in EU by:
ELECTRA s.r.l
Parc Industrial Miroslava
Str. Principala 33, 707307, Jud. Iași – RO
+40 232 214.370
sales@electra.ro
www.electra.ro
SUPPORT
ELECTRA Building Communications GmbH
Gadnergasse 71, Stockwerk 1, Büro Top 132
1110 Wien – AT
+43 1 810 20 99
sales@electra-automation.at
www.electra-automation.at
