dynamic BIOSENSORS AS-2-Ga-lfs v5.1 Adapter Strand

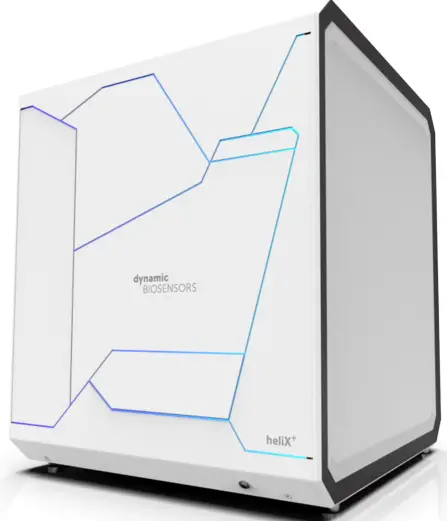

dynamic -BIOSENSORS-AS-2-Ga-lfs v5-1 Adapter-Strand-product

Product Information

Specifications

  • Product Name: heliX+
  • Model: ADAPTER STRAND 2 with green dye Ga
  • Prehybridized with ligand strand
  • Manufacturer: Dynamic Biosensors GmbH & Inc.
  • Order Number: AS-2-Ga-lfs v5.1
  • Key Features: 2 spots with 2 different anchor sequences for DNA-encoded addressing

Product Description

The heliX+ ADAPTER STRAND 2 is a product prehybridized with a ligand strand and features 2 spots with 2 different anchor sequences for DNA-encoded addressing. It comes with green dye Ga for easy visualization.

Contents and Storage Information:

  • Material: Adapter strand 2 – Ga – lfs
  • Cap Color: White
  • For research use only. Limited shelf life, check expiry date on label
  • To avoid freeze-thaw cycles, please aliquot the nanolever
  • Buffer: TE40

Product Usage Instructions

Preparation | MIX&RUN

  1. Mix Adapter strand 1 – Ga (400 nM) and conjugated Ligand strand (500 nM) at 1:1 ratio (v/v).
  2. Incubate the solution from step 1 at room temperature at 600 rpm for 30 minutes for complete hybridization.
  3. Mix the solution from step 2 with Adapter strand 2 – Ga – lfs (200 nM) at 1:1 ratio (v/v).
  4. The solution is now ready for use in biochip functionalization.

Note: The stability of the solution is dependent on the ligand molecule’s stability.

FAQ

  • Q: Can the heliX+ ADAPTER STRAND 2 be used for multiple experiments?
    • A: The product is designed for single-use experiments due to its limited shelf life and stability concerns.
  • Q: How should I store the heliX+ ADAPTER STRAND 2?
    • A: Store the product according to the storage information provided in the manual, and avoid exposing it to frequent freeze-thaw cycles.

Key Features

  • Adapter strand 2 for functionalization of heliX® Adapter Chip Spot 2.
  • Compatible with heliX® Adapter Chip.
  • Includes Adapter strands for 50 regenerations.
  • Ideal for MIX&RUN sample preparation.
  • Adapter strand 2 carries a hydrophilic green dye (Ga) with a single negative net charge.

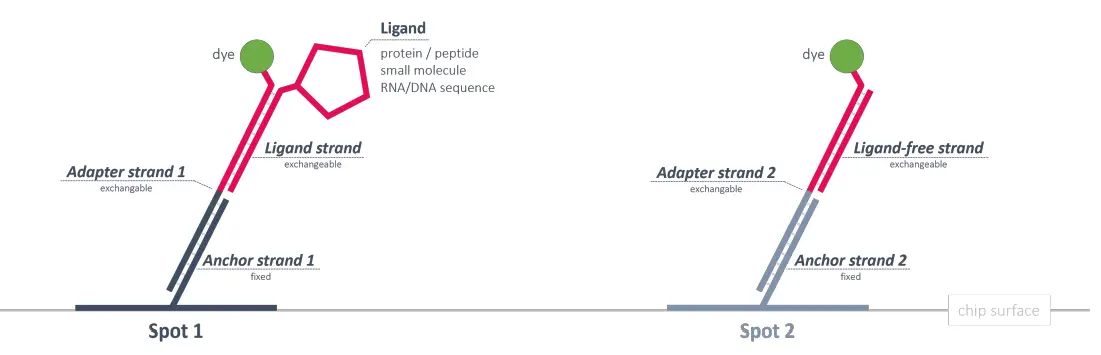

heliX® Adapter Chip Overview

2 spots with 2 different anchor sequences for DNA-encoded addressingdynamic -BIOSENSORS-AS-2-Ga-lfs v5-1 Adapter-Strand-fig-1

Product Description

Order Number: AS-2-Ga-lfs

Table 1. Contents and Storage Information

Material Cap Concentration Amount Buffer Storage
Adapter strand 2 – Ga – lfs White 200/250 nM 5 x 200 µL TE40 [1] -20°C

For research use only.

This product has a limited shelf life, please see expiry date on the label. To avoid many freeze-thaw cycles please aliquot the nano level

Preparation

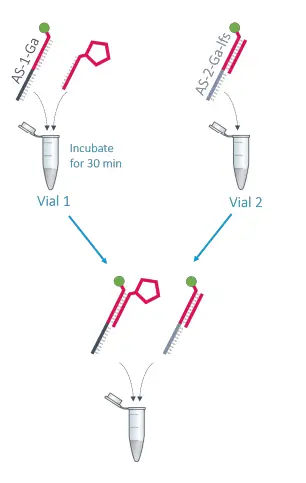

Preparation | MIX&RUN

In-solution hybridization of adapter and ligand strands:

  1. Mix Adapter strand 1 – Ga (400 nM) and conjugated Ligand strand (500 nM) at 1:1 ratio (v/v).
  2. Incubate the solution of step 1 at RT at 600 rpm for 30 min to ensure complete hybridization.
  3. Mix solution of step 2 and Adapter strand 2 – Ga – lfs (200 nM) at 1:1 ratio (v/v). Solution is ready to use for biochip functionalization. Stability of the solution is related to the stability of the ligand molecule.dynamic -BIOSENSORS-AS-2-Ga-lfs v5-1 Adapter-Strand-fig-2

Table 2. Additional material for functionalization of spot 1 and reference spot 2.

Material Concentration Buffer Related Product Name Order No
Adapter strand 1 – Ga 400 nM TE40 [1] Adapter strand 1 with green dye Ga AS-1-Ga
Ligand strand

carrying the conjugated ligand

500 nM P2] E40 [ heliX® Amine Coupling Kit 1 HK-NHS-1

Example

Required volume for 3 functionalizations: 100 μL with a final concentration of 100 nM.

Vial 1 Vial 2
Adapter strand 1 – Ga

(400 nM)

Conjugated Ligand strand

(500 nM)

Adapter strand 2 – Ga – lfs

(200/250 nM)

25 µL 25 µL 50 µL

After incubation time, mix vial 1 and vial 2 to obtain 100 μL of ready-to-use DNA solution

Contact

Dynamic Biosensors GmbH

  • Perchtinger Str. 8/10
  • 81379 Munich
  • Germany

Dynamic Biosensors, Inc.

  • 300 Trade Center, Suite 1400
  • Woburn, MA 01801
  • USA

Order Information order@dynamic-biosensors.com
Technical Support support@dynamic-biosensors.com

www.dynamic-biosensors.com

Instruments and chips are engineered and manufactured in Germany.

©2024 Dynamic Biosensors GmbH | Dynamic Biosensors, Inc. All rights reserved.

  1. TE40: 10 mM Tris, 40 mM NaCl, 0.05 % Tween20, 50 μM EDTA, 50 μM EGTA
  2. If the protein is not stable in PE40 (TE40, HE40), please check buffer compatibility with the switchSENSE® compatibility sheet
