Oven Temperature Logger
Measures and records oven temperature profiles
Record up to 40,000 datasets
into 6 independent batches

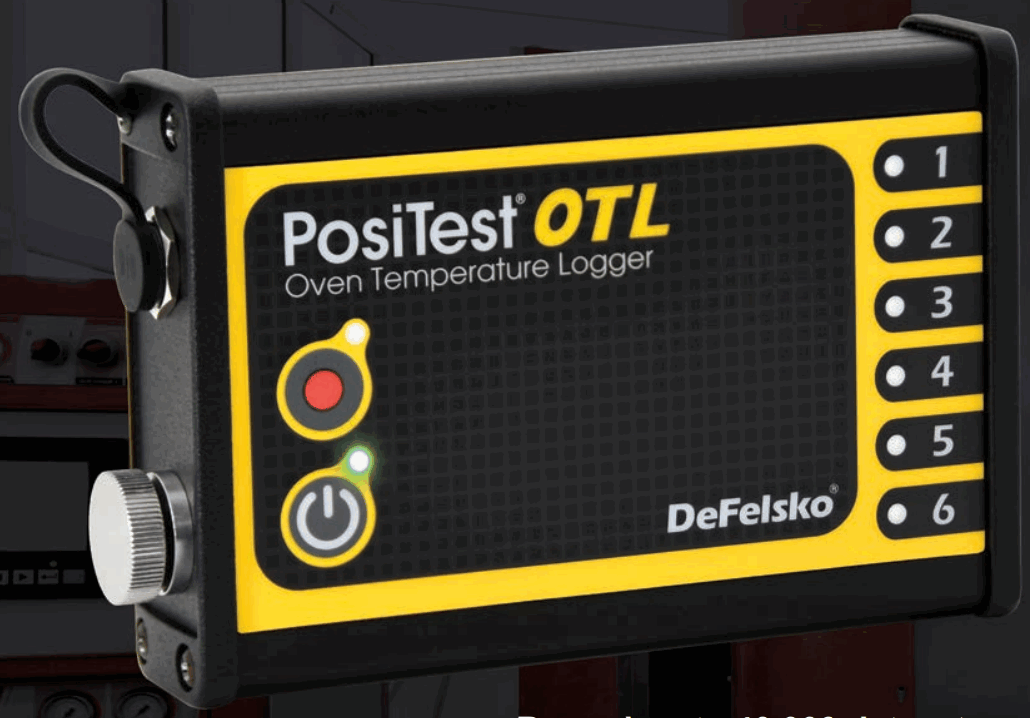

PosiTestOTL Oven Temperature Logger

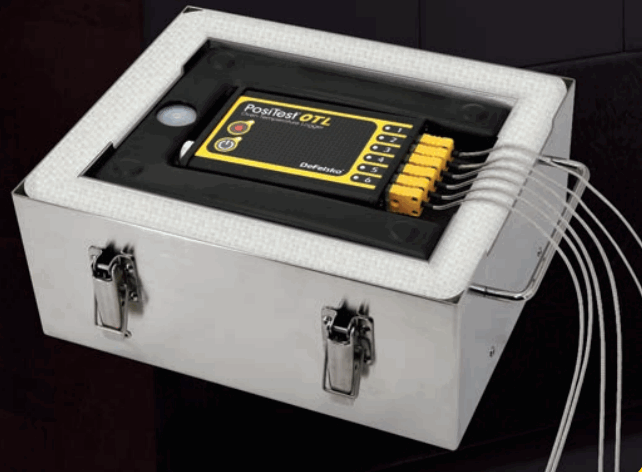

High temperature stainless steel barrier box for long run times
Oven Temperature Logger
The PosiTest OTL Oven Temperature Logger with included barrier box and holder is ideal for measuring oven temperature profiles.
Features
- Simple, easy-to-use interface
- 6 K-type thermocouple ports (channels)
- Measures and records up to 40,000 datasets (240,000 readings) in up to 6 batches
- Records measurements every 2 seconds for up to 22 hours of recording time
- Download, view, and analyze batch data using PosiSoft Desktop software.
Export .CSV files for easy import into spreadsheets. - NEW Cure Index compares supplier’s cure specifications to actual oven and part temperatures to ensure a proper cure
- Bright LEDs indicate logger status at a glance
- High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
- Certificate of Calibration showing traceability to NIST included
Temperature Probes
- Wide variety of temperature probes available with 1.8, 3.6, or 6 m (6’, 12’, or 20’) stainless steel braided cables (sold separately). See the following page for details.
- Certificate of Calibration showing traceability to NIST included
Two Kits available
The PosiTest OTL is available in two configurations. The PosiTest OTL XT features an enhanced holder with heatsink for greater endurance at high temperatures.
| PosiTest OTL (OTLKIT) | PosiTest OTL XT (OTLKITXT) | |
| 150° C (302° F) | 90 minutes | 300 minutes |
| 200° C (392° F) | 65 minutes | 200 minutes |
| 250° C (482° F) | 50 minutes | 140 minutes |
| 300° C (572° F) | not recommended | 100 minutes |

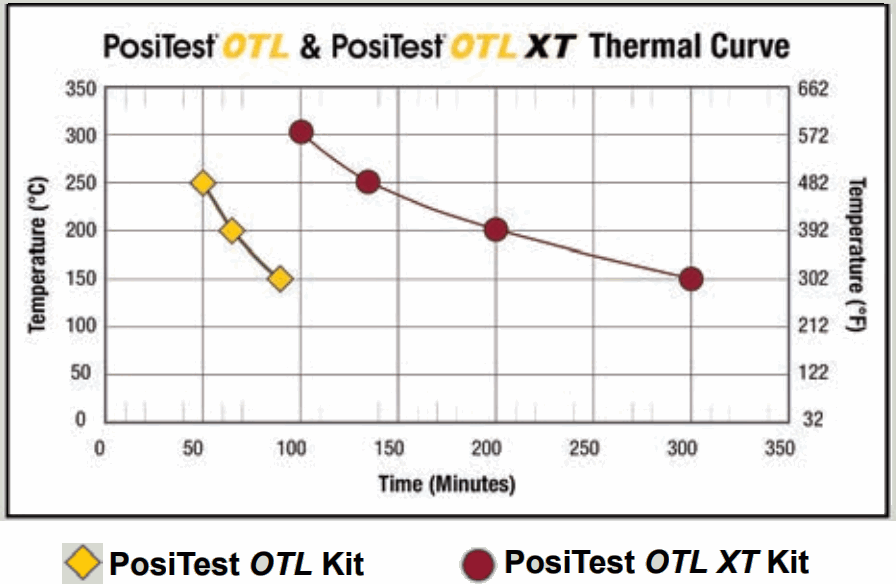

The chart and table above represent the combined thermal characteristics of the PosiTest OTL, Barrier Box and choice of Holder/Holder XT
Ordering Guide
| PosiTest OTL Kit | OTLKIT |
| PosiTest OTL XT Kit | OTLKITXT |
PosiTest OTL Specifications
| Channels | 6 K-type non-grounded thermocouples |
| Thermocouple Measurement Range | -100 to 1000° C -148 to 1832° F |
| Logger Operating Temperature Range PosiTest OTL without Holder or Barrier Box |
0 to 70° C 32 to 158° F |
| Logger Accuracy | + 0.5° C + 0.9° F |
| Resolution | 0.1° C 0.1° F |
| Memory | 40,000 Datasets. Each Dataset consists of up to 6 channels. |
| Sample Interval | 2 seconds (Fixed) Maximum recording time is 22 hours |
Power Source: 2 AAA batteries
Battery Life: 30 hours (recording time)
Size: 30.5 x 25.5 x 15 cm (12” x 10” x 6”)
Weight:* 9 kg (20 lbs.)
* Weight includes the PosiTest OTL, Holder, and Barrier
Box. Holder XT increases weight to 11 kg (25 lbs.).

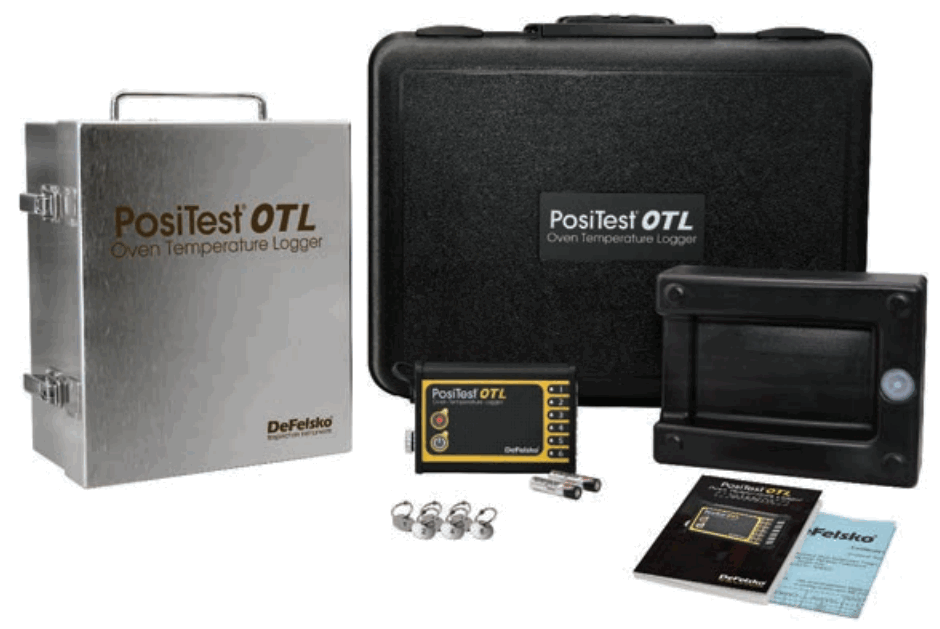

LOGGER KITS COME with temperature logger, stainless steel high temperature barrier box, choice of holder, 6 engraved probe ID tags, two AAA batteries, instructions, Long Form Certificate of Calibration traceable to NIST, carrying case, USB cable, PosiSoft Desktop software, and two year warranty.
Temperature Probe Options
| Temperature Probes | Temperature Range | Order Code |
| Spring Clamp – Surface Probe: 1.8 m (6’) Spring Clamp – Surface Probe: 3.6 m (12’) Spring Clamp – Surface Probe: 6 m (20’) |
-100 to 500°C -148 to 930°F |
PRBOTLCS6 PRBOTLCS12 PRBOTLCS20 |
| Spring Clamp – Air Probe: 1.8 m (6’) Spring Clamp – Air Probe: 3.6 m (12’) Spring Clamp – Air Probe: 6 m (20’) |
PRBOTLCA6 PRBOTLCA12 PRBOTLCA20 |
|
| Magnetic – Surface Probe: 1.8 m (6’) Magnetic – Surface Probe: 3.6 m (12’) Magnetic – Surface Probe: 6 m (20’) – |
-100 to 300°C -148 to 570°F |
PRBOTLMS6 PRBOTLMS12 PRBOTLMS20 |
| Magnetic – Air Probe: 1.8 m (6’) Magnetic – Air Probe: 3.6 m (12’) Magnetic – Air Probe: 6 m (20’) |
PRBOTLMA6 PRBOTLMA12 PRBOTLMA20 |
|
| Washer – Surface Probe: 1.8 m (6’) Washer – Surface Probe: 3.6 m (12’) Washer – Surface Probe: 6 m (20’) |
-100 to 500°C -148 to 930°F |
PRBOTLW6 PRBOTLW12 PRBOTLW20 |

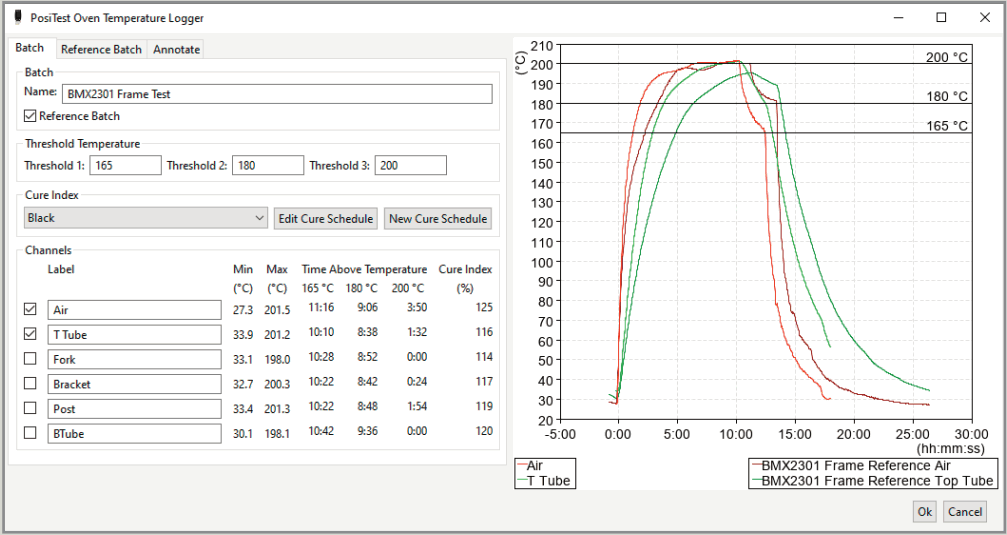

PosiSoft Desktop
FREE powerful desktop software (PC/Mac) for downloading, viewing, printing, and storing measurement data.
Add supplier cure schedule specifications, batch annotations, label individual channels, set threshold temperatures, and compare datasets to reference batches.
Includes a customizable, templated PDF Report Generator. No internet connection required.
Assign names to each channel and view Cure Index,
Time above Temperature, and other statistics
Customizable PDF Report Generator—add custom cover pages and logos, and choose to display images, charts, histograms, and/or readings.
 |
||

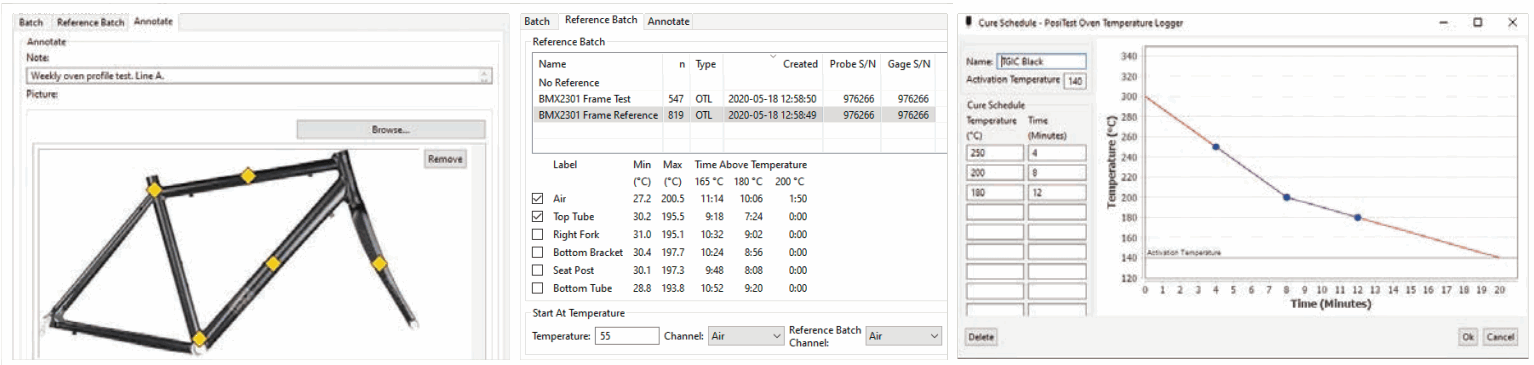

| Annotate—add notes and images to document probe placement and other observations | Reference Batch—store optimal cure reference profiles to compare measurement results | NEW Cure Index calculates the correct time at temperature based on supplier’s cure specifications to ensure a proper cure |

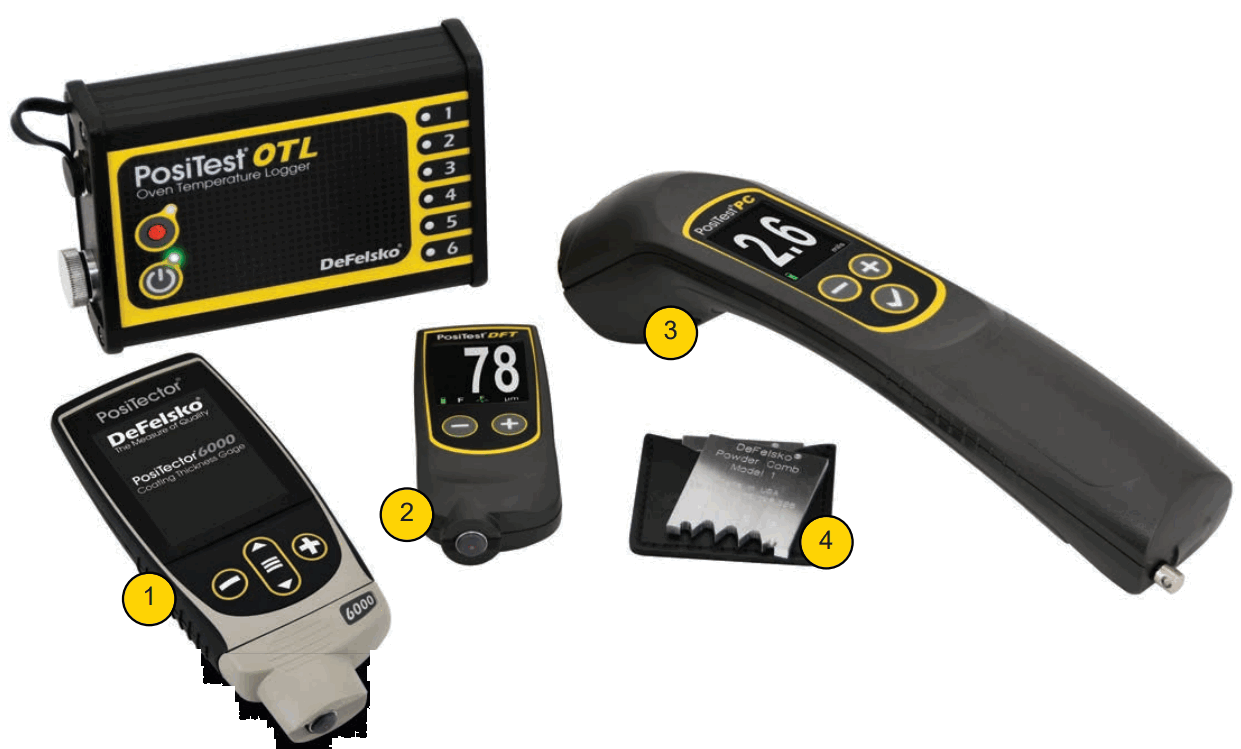

Coating Thickness Gages for Before and After Cure
- PosiTector 6000 Series
Standard and Advanced features for measuring coating thickness on ALL metal substrates - PosiTest DFT Dry Film Thickness Gage
Economical coating thickness gage for ALL metal substrates - PosiTest PC Powder Checker
Non-contact coating thickness gage for measuring uncured powder coating thickness to predict a cured thickness - DeFelsko Powder Comb
Notched comb for measuring uncured powder height to ensure correct cured film thickness - Powder Inspection Kit
Complete solutions for measuring powder coating before and after cure

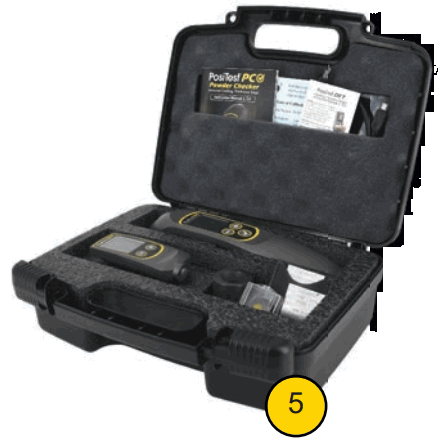

Each kit contains:
PosiTest PC Uncured Powder Thickness Gage
Choice of dry film thickness gage
Two DeFelsko Powder Combs (models 1 and 4)
Select from 6 pre-configured kits or build your own at www.defelsko.com/PCKits
