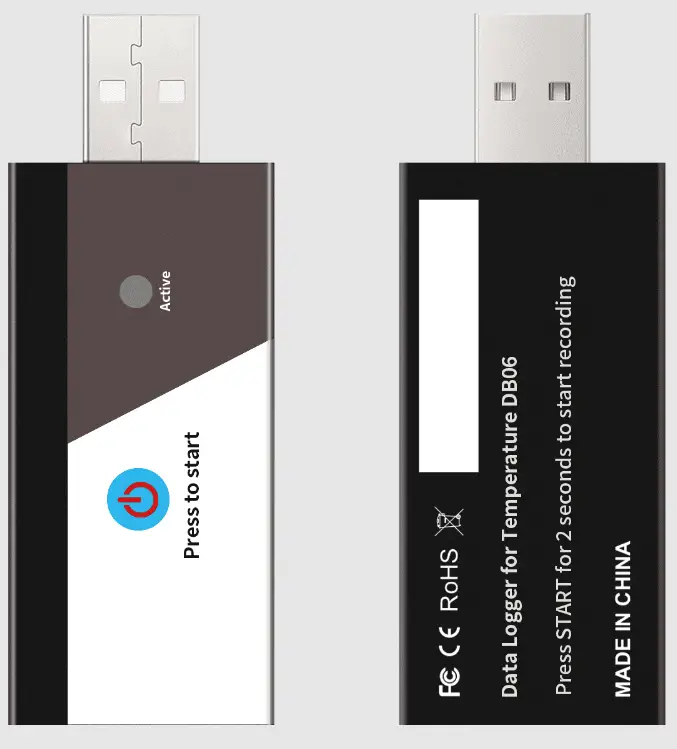

eeLink DB06 Temperature Data LoggereeLink-DB06-Temperature-Data-Logger-USB-product

USB temperature recorder

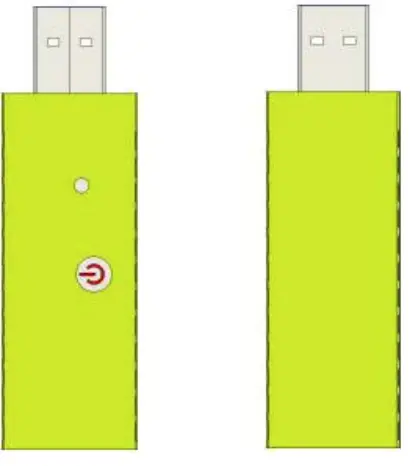

The DB06 recorder is ideal for temperature monitoring in cold chain applications. It is simple, press the start button before placing it along with the monitored goods. Then you can start to monitor the temperature data of the entire cold chain transportation. In addition, the DB06 is small in size, and best applied in a wide range areas.It provides a USB connection, which can be directly inserted into the USB port of the computer. After connecting to the computer, there is no need to install anydrivers. The recorder can automatically generate a PDF file, including a complete history of time and temperature data (charts and summary data) and a complete table showing all temperature readings during transportation.DB06 will also automatically generate a CSV file. It is just used as a data logger, without any functions of alarms or marking.eeLink-DB06-Temperature-Data-Logger-USB-fig-1

Data sheet

Type Disposable
Function Temperature record
Size 75.1*22.8*6.8mm
Button One (start)
LED Red (Active)
USB export PDF、CSV file
Flash 10,000 temp data
Interval Factory set (30s to 18 hours)
Battery CR2032 button cell
Battery lasting time 30、70、135days (recording time 5 mins、10mins、20mins )
Shelf life 36 months
Working range -20℃~60℃(-4°F~140°F)
Temperature accuracy Typical:±0.5℃(0℃~60℃);±1℃(-20℃~0℃)

(±0.9°F(32°F ~140°F );±1.8°F (-4°F ~140°F )

Resolution ratio 0.0625℃
Time zone Factory set, can change per needs
Package PE
Waterproof IP IP67
Weight 10g

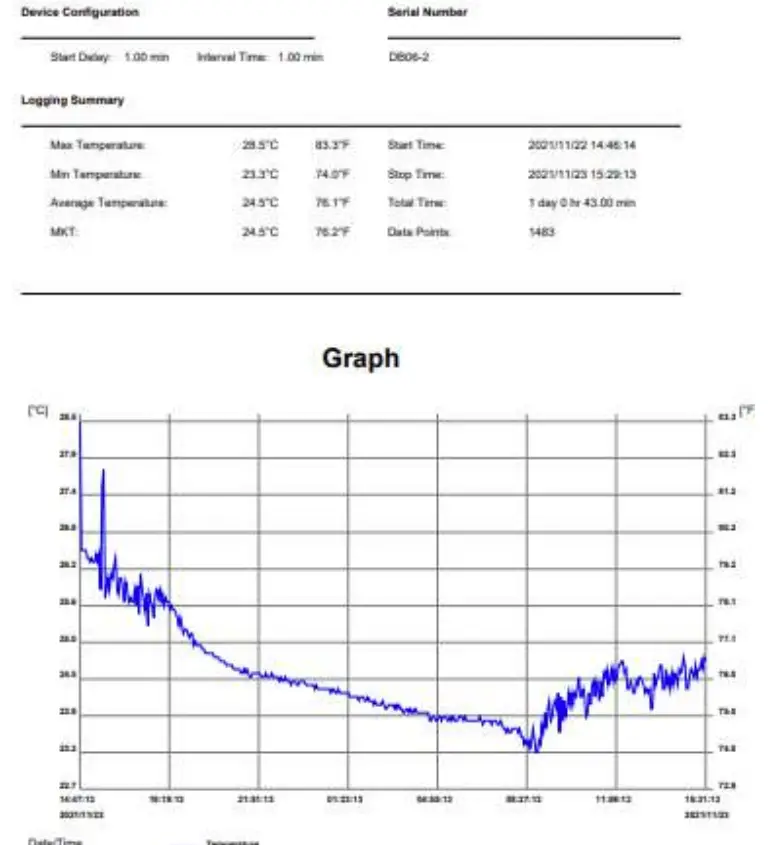

Data ReporteeLink-DB06-Temperature-Data-Logger-USB-fig-2

Documents / Resources

eeLink DB06 Temperature Data Logger USB [pdf] User Manual
DB06, Temperature Data Logger USB, DB06 Temperature Data Logger USB
