Danfoss VIFOD302 Steel Valve for Convectors in Heating Systems
Application

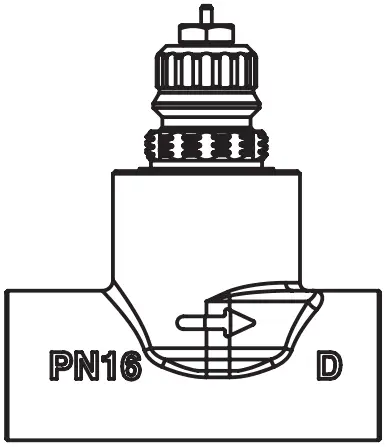

The steel valve is designed for welding into convectors by the manufacturer.

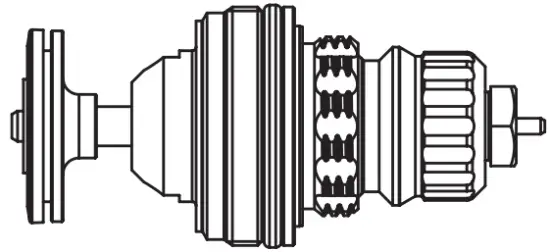

The complete valve consists of a steel valve body and a large capacity valve insert with fixed flow through the valve. The insert has connection for all Danfoss RA 2000 thermostatic sensors.
The flow capacity of this valve is designed for one-pipe heating systems.
Ordering And Specifications
| Part | Code no. |
| Valve insert with RA 2000 sensor connection | 013G1805 |
| Steel valve body, straight pattern, welding connections | 013G1801 |
| Spare part: Gland seal for valve insert, 10 pcs/pack | 013L0669 |
| Spare part: Cover cap, green | 013G8469 |
| Type | Differential pressure 1) | Test pressure | Work. pressure | Max. water temperature | Code no. | |
| Recom. | Technical | |||||
| RA-G valve, incl. cap | 0.05 – 0.1 bar | 0.15 bar | 25 bar | 16 bar | 120˚ C | 013G1809 |
| RA-G 013G1809 |
P-band (K) |
Kvs | ||||
| 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | ||
| kV -value 2) (m3 /h at ∆p =1 bar) | 0.55 | 1.11 | 1.63 | 2.14 | 3.07 | 4.32 |
- The maximum differential pressure specified is the maximum pressure at which the valves give satisfactory regulation. As with any device which imposes a pressure drop in the system, noise may occur under certain flow/pressure conditions. To ensure quiet operation, maximum pressure drop should not exceed 0.3 to 0.35 bar. The differential pressure can be reduced by the use of the Danfoss differential pressure regulators.
- The kv-value indicates the flow volume (Q) in m3 /h at a given lift and a pressure drop (p) across the valve at 1 bar. kv = Q / √∆p. The kvs-value states the flow Q at a maximum lift, i.e. at fully open valve. If a remote temperature adjuster is used, the P-band is increased by a factor of 1.1.
Design And Handling
Materials in contact with water
| Valve body | Welding proof ASTM steel |
| Valve top | Ms 58 |
| Valve seat | ASTM steel |
| O-rings | NBR / EPDM |
| Valve spindle | Ms 58 |
| Valve cone | NBR |
| Pressure pin and valve spring | Chrome steel |
To avoid calcification and corrosion, it is important for the composition of the circulating water to comply with the VDI 2035 guidelines.

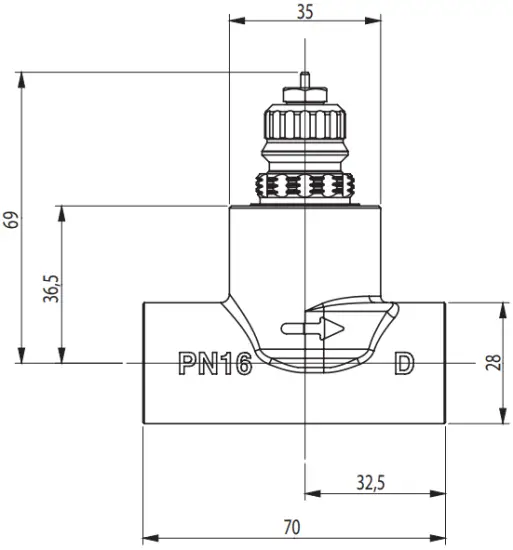

Dimensions
Replacing The Gland Seal

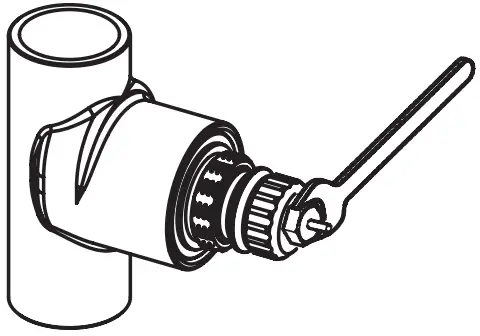

- The gland seal can be replaced with the system in operation. Use a 10M spanner to remove the old gland seal.
- After replacing the gland seal , test if the valve spindle is operating freely.
Mounting Instructions
Note!
Valve body and insert should always be handled with utmost care. Keep in original packing until final use. Any damage may result in malfunction of the valve.

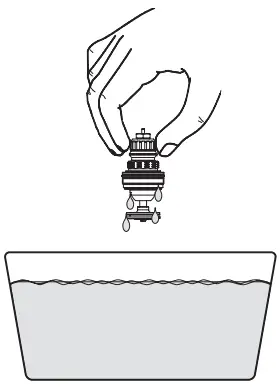

- Lubricate valve insert by dipping in water.

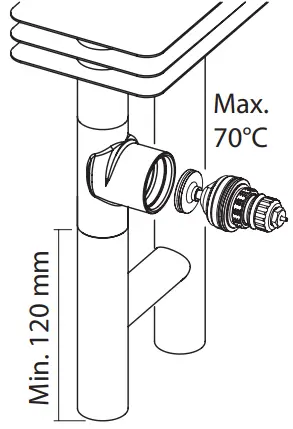

- Apply insert to housing and tighten by hand.
Be aware of the max. temperature, not to destroy the o-ring when applying the insert.

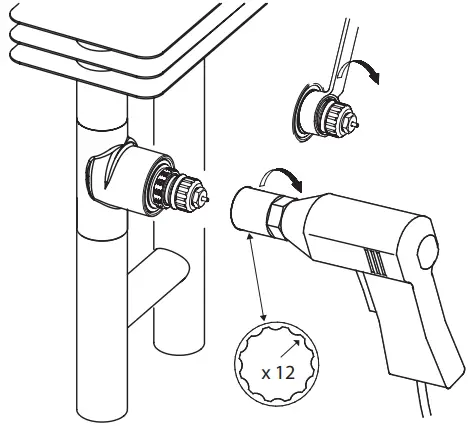

- Tighten insert with a 21M spanner, torque 30 Nm ± 10%.

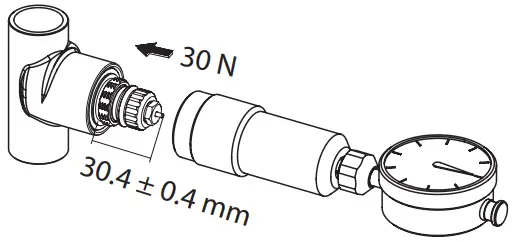

- To ensure closing measure of the valve, load the spindle with a force of 30 N until stop, and measure as shown.
A special tool for control is available.

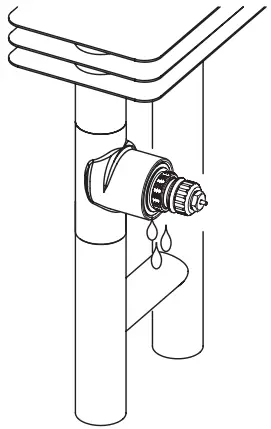

- A leak test has to be carried out according to procedures stated by the convector manufacturer.

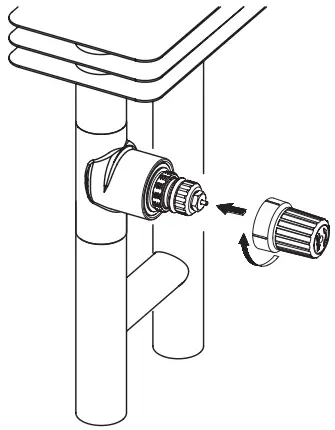

- Fit green protection cap and tighten by hand.
Customer Support
Danfoss A/S
Heating Solutions
Haarupvaenget get 11 8600 Silke Borg
Denmark
Phone: +45 7488 8000
Fax: +45 7488 8100
Email: heating.solutions@danfoss.com
www.heating.danfoss.com
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss neserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
VDFOF102 © Danfoss
