Danfoss RAS-B2 Dynamic Radiator Pack and TRV User Guide
Danfoss RAS-B radiator valve is a pressure independent radiator valve, designed for use in 2-pipe heating systems together with Danfoss TRV. RAS-B dynamic valves are fitted with a flow limiting device for presetting of the maximum water flow. The valves are available with maximum water flow of 10 – 135 l/h. RAS-B has a built-in pressure regulator, which keeps the differential pressure at a constant level of 0.1 bar, maintaining the set flow.
Installation of valve
The Danfoss RAS-B radiator valve can be fitted either vertically or horizontally giving the installer total flexibility.
! If you are not installing a Danfoss lockshield valve (supplied in sets code, 013G7662 & 013G7663) ensure that the lockshield is fully open. No balancing on the lockshield/ return pipe.
Presetting

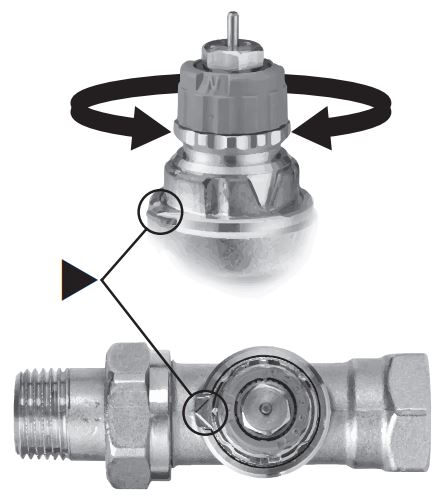

The presetting values of RAS-B valves can be adjusted easily and accurately without the use of tools (default setting = N).
Presetting can be selected in steps from 1 to 7:
- Remove protective cap / thermostatic sensor.
- Find reference mark (▶).
- Turn setting ring until the acquired presetting aligns with the reference mark.
At setting N the valve is fully open. This setting can be used as a flushing position, if the system has to be flushed out because of dirt problems.
When the thermostatic sensor has been installed, the presetting is protected against unintended regulation.

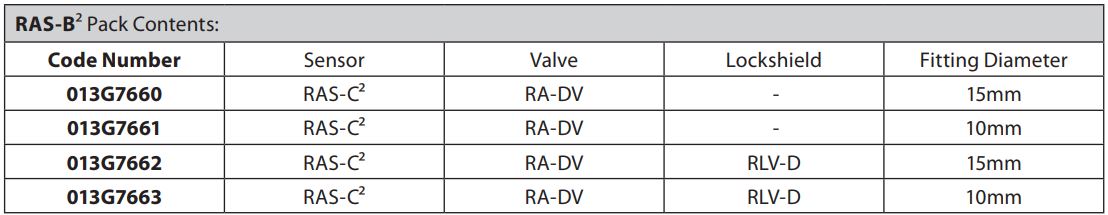

Keymark reference: This package contains sensor 013G6040 and valve 013G7677.
Sensor Installation
Fitting the Sensor
Removing the Sensor
Turn the sensor to max. position . Turn union nut anticlockwise to release locking mechanism (4). The sensor can now be separated from the valve.
User Guide
Setting the desired room temperatures

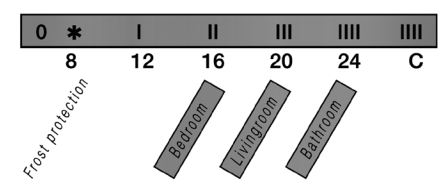

The desired room temperature is set by turning the head. The temperatures obtained are approximately:
Do not cover the thermostat
The thermostat opens and closes as determined by the temperature around it. Therefore the sensor must never be hidden behind thick curtains, furniture, etc. Alternatively a thermostat with remote sensor should be used.
Positive SHUT-OFF feature:
The head can be turned past the setting (a slight resistance will be felt) to setting “0” at which point the water flow is shut off completely. After also shutting the lockshield valve the radiator may be drained and removed for maintenance and decoration purposes.
