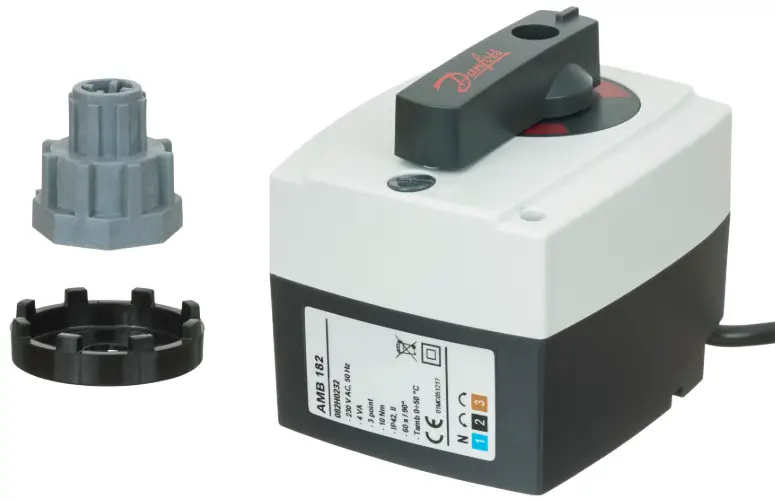

Danfoss AMB 162,AMB 182 Actuator For Temperature Control
Product Specifications
- Model: AMB 162, AMB 182

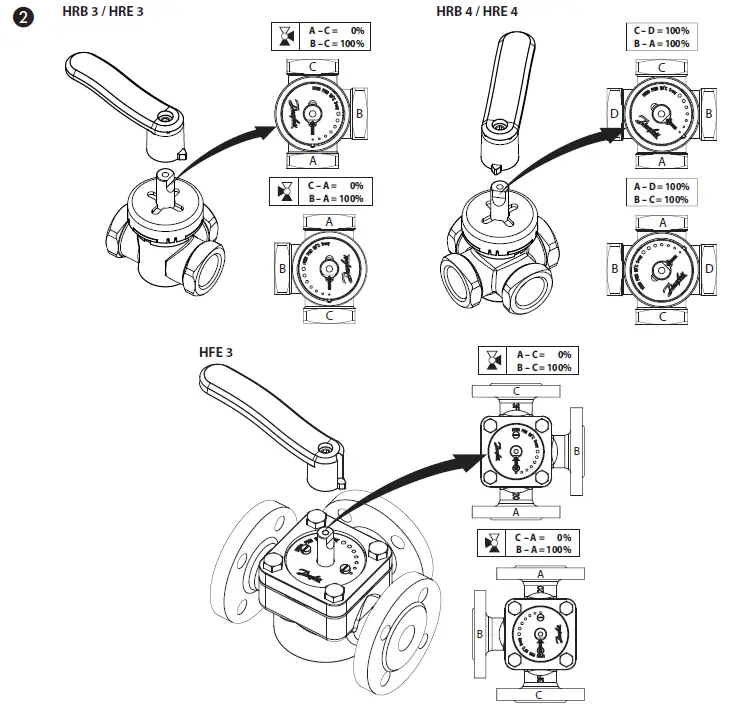

- Compatible with: HRB 3, HRE 3, HRB 4, HRE 4, HFE 3
- Manufacturer: Danfoss Heating

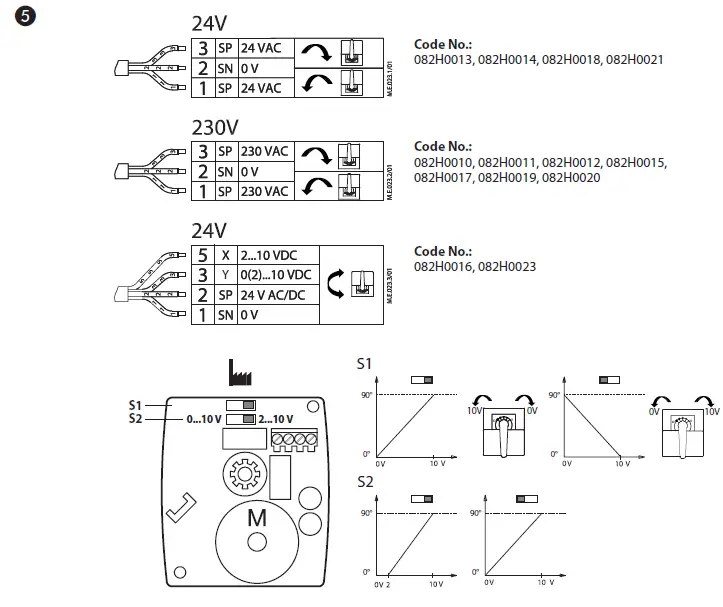

- Code Numbers:
- AMB 162: 082H0013, 082H0014, 082H0018, 082H0021
- AMB 182: 082H0010, 082H0011, 082H0012, 082H0015, 082H0017,
082H0019, 082H0020
- Input Voltage Range: 0-10 V
- Output Voltage Range: 2-10 V
Installation
- Ensure power is turned off before installation.
- Refer to the installation guide for specific wiring instructions based on the model.
- Mount the product securely in a suitable location.
- Connect input and output voltage according to the specified ranges.
Operation
- Power on the product and adjust the settings as needed.
- Monitor the input and output voltage levels to ensure proper functionality.
- Make adjustments using the provided controls if necessary.
- Refer to the user manual for troubleshooting tips if encounter issues.
Frequently Asked Questions
- Q: What should I do if the product does not power on?
A: First, check the power source and connections. If the issue persists, contact customer support for further assistance. - Q: How do I adjust the output voltage range?
A: Use the provided controls to adjust the output voltage within the specified range of 2-10 V.
