Danfoss AK-UI55 Info Case Room Controller Installation Guide
Identification

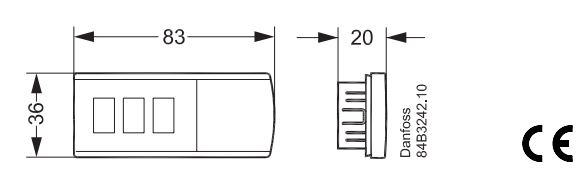

Dimensions

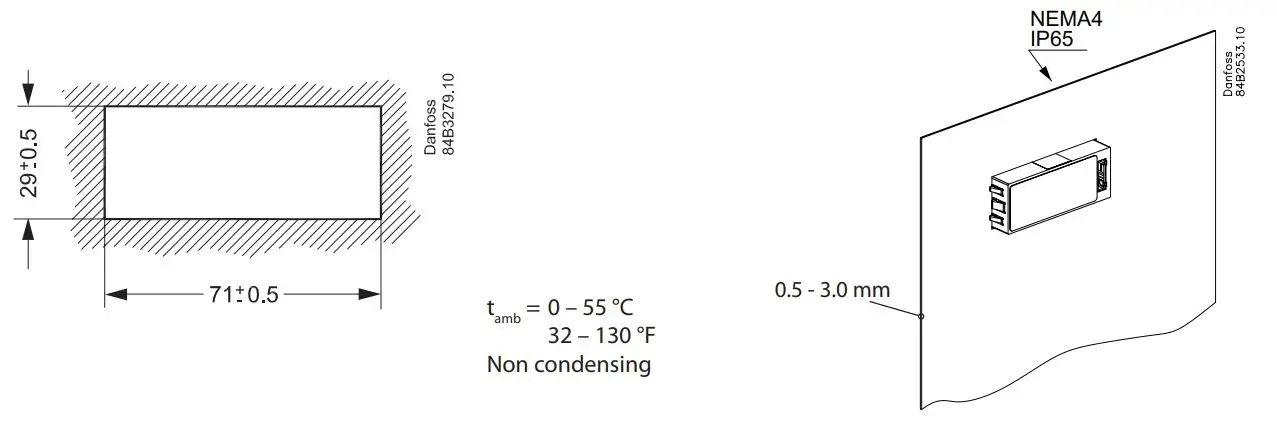

Mounting
Connection
AK-UI55 Info

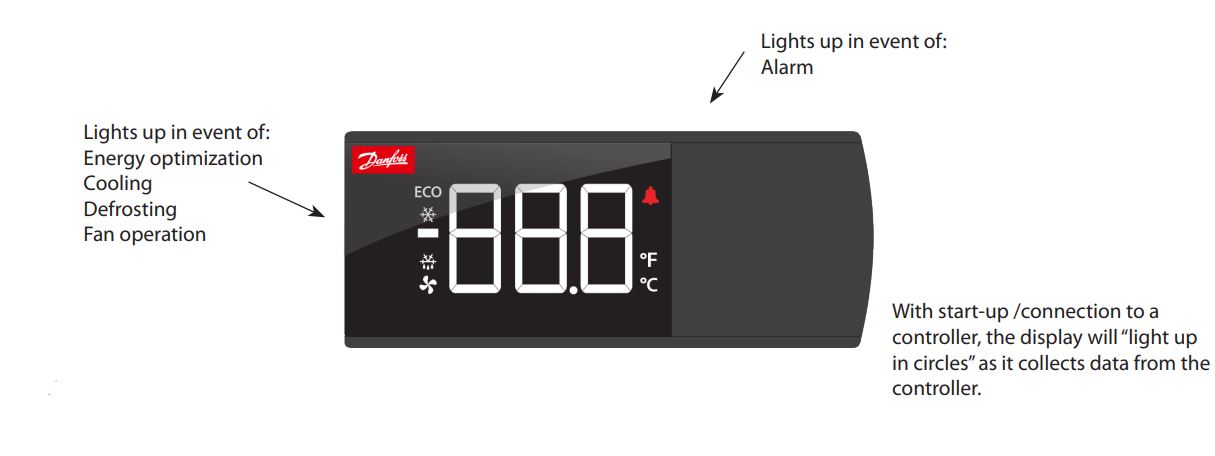

The display can give the following messages:
-d- Defrost is in progress
Err The temperature cannot be displayed due to a sensor error
Fan Appliance cleaning has been initiated. The fans are running
OFF Appliance cleaning is activated and the appliance can be cleaned
OFF The main switch is set to Off
SEr The main switch is set to service / manual operation
CO2 Flashes: Will display in event of a refrigerant leakage alarm, but only if the refrigerant is set up for CO
© Danfoss | DCS (vt) | 2019.12
AN324531493969en-000102 | 1
