1. Rhagymadrodd
Diolch am brynuasing the TOPTRO X2 Mini Portable Projector. This manual provides essential information for setting up, operating, and maintaining your projector. Please read it thoroughly before use to ensure optimal performance and safety.
Image 1.1: TOPTRO X2 Projector, carrying bag, and screen projection.
Image 1.2: Key features of the TOPTRO X2 Projector.
2. Cyfarwyddiadau Diogelwch
- Peidiwch ag edrych yn uniongyrchol i lens y taflunydd pan fydd y lamp yn ymlaen.
- Sicrhewch awyru priodol o amgylch y taflunydd i atal gorboethi.
- Keep the projector away from water, moisture, and flammable materials.
- Defnyddiwch yr addasydd pŵer a ddarperir gyda'r taflunydd yn unig.
- Do not attempt to disassemble or repair the projector yourself. Contact professional support if needed.
- Cadwch allan o gyrraedd plant.
3. Cynnwys Pecyn
Gwiriwch y pecyn am yr eitemau canlynol:
- TOPTRO X2 Mini Portable Projector
- Addasydd Pŵer
- Rheolaeth Anghysbell
- Cebl HDMI
- Cable AV
- Llawlyfr Defnyddiwr
- Bag Cario
4. Cynnyrch Drosview
Familiarize yourself with the projector's components and controls.
Image 4.1: Projector controls and ports.
4.1 Blaen View
- Lens Tafluniad: Yn allyrru'r ddelwedd.
- Modrwy Ffocws: Yn addasu eglurder y ddelwedd.
4.2 Uchaf View
- Panel Rheoli: Power button, navigation buttons, OK button.
4.3 Rear/Side View
- Mewnbwn pŵer: Yn cysylltu â'r addasydd pŵer.
- Porthladdoedd HDMI: Connect to HDMI-enabled devices (laptops, game consoles).
- Porthladdoedd USB: Cysylltwch yriannau USB ar gyfer chwarae cyfryngau.
- Porthladd AV: Connect to older devices using the AV cable.
- Allbwn Sain (3.5mm): Cysylltwch siaradwyr neu glustffonau allanol.
- Derbynnydd IR: Ar gyfer signalau rheoli o bell.
5. Gosod
5.1 Lleoliad
Position the projector on a stable, flat surface or mount it. Ensure the projection path is clear.
Image 5.1: Multiple installation options.
5.2 Cysylltiad Pwer
- Connect the power adapter to the projector's power input.
- Plygiwch yr addasydd pŵer i mewn i allfa bŵer.
5.3 Addasiad Ffocws
Rotate the focus ring on the projector lens until the projected image is clear and sharp.
5.4 Cywiriad Keystone
If the projected image appears trapezoidal, use the manual keystone correction feature to adjust the vertical angle. This projector supports ±15° vertical keystone correction.
Image 5.2: Manual keystone correction.
6. Gweithrediad
6.1 Pŵer Ymlaen/Diffodd
Pwyswch y botwm pŵer ar y taflunydd neu'r teclyn rheoli o bell i droi'r uned ymlaen neu i ffwrdd.
6.2 Dewis Ffynhonnell Mewnbwn
Use the 'Source' button on the remote or projector to select your desired input (HDMI1, HDMI2, USB, AV, Screen Mirroring).
Image 6.1: Projector ports and compatible devices.
6.3 Wireless Connection (WiFi Screen Mirroring)
The TOPTRO X2 supports wireless screen mirroring for iOS, Android, Windows 10, and Mac devices. No additional adapters or cables are needed.
- Select 'Screen Mirroring' as the input source.
- Follow the on-screen instructions to connect your device via WiFi.
Image 6.2: Wireless WiFi connection in use.
6.4 Cysylltiad Bluetooth
Connect external Bluetooth speakers or headphones for an enhanced audio experience.
- Navigate to the Bluetooth settings in the projector's menu.
- Galluogi Bluetooth a chwilio am y dyfeisiau sydd ar gael.
- Select your Bluetooth speaker or headphones to pair.
Delwedd 6.3: Cysylltedd Bluetooth 5.0.
6.5 Adjusting Projection Size (Zoom)
The projector features a zoom function to adjust the screen size from 75% to 100% without moving the projector.
Image 6.4: Zoom function (75%-100%).
6.6 Cysylltu Dyfeisiau Allanol
Connect various devices such as TV sticks, laptops, game consoles, or USB drives to the projector's HDMI or USB ports.

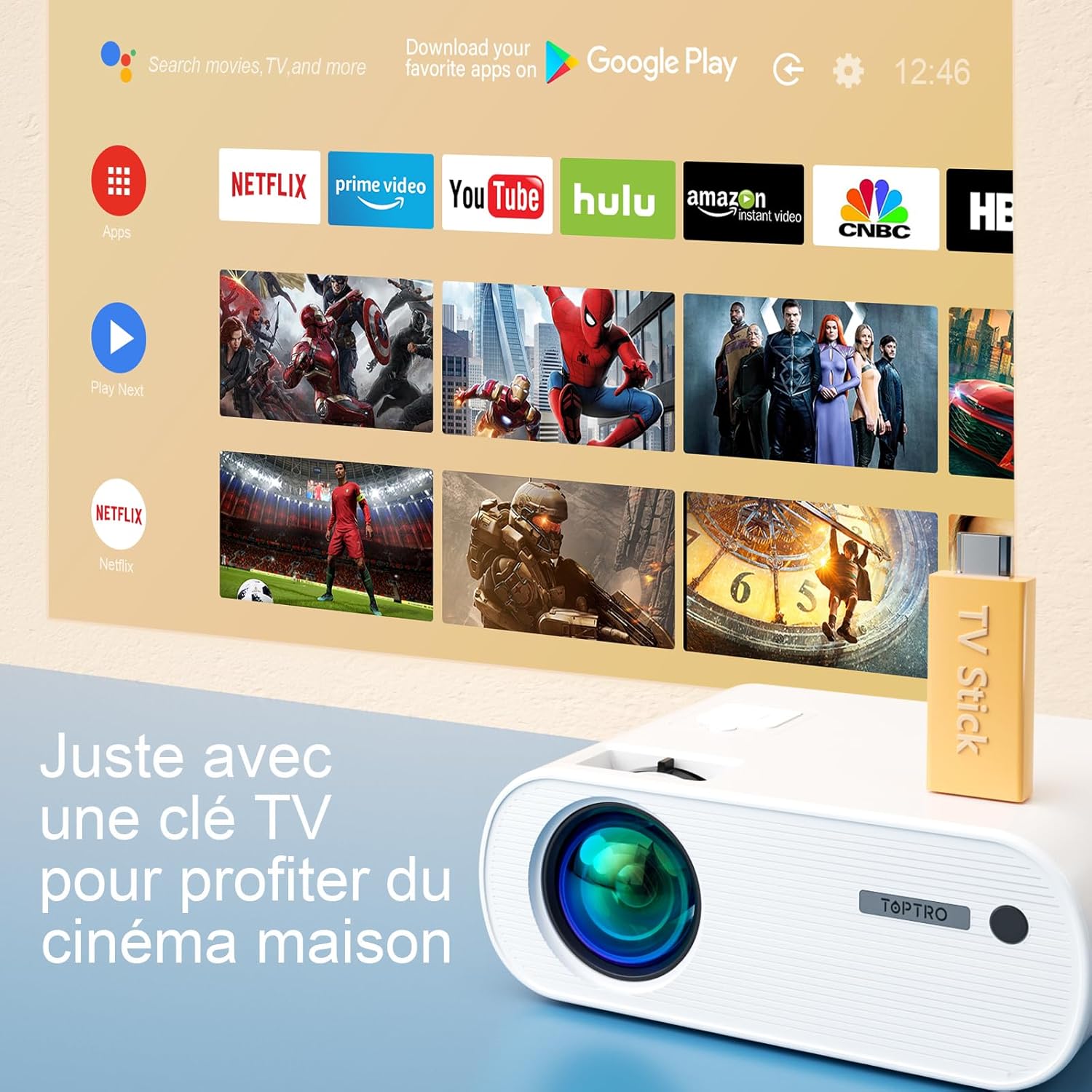

Image 6.5: Enjoying home cinema with a TV stick.
7. cynnal
7.1 Glanhau
- Use a soft, dry cloth to clean the projector's exterior.
- For the lens, use a professional lens cleaning cloth and solution. Avoid harsh chemicals.
- Regularly clean the ventilation vents to prevent dust buildup.
7.2 Storio
When not in use, store the projector in its carrying bag in a cool, dry place, away from direct sunlight and extreme temperatures.
7.3 Lamp Gofal
The projector features an LED lamp with an extended lifespan of up to 90,000 hours, ensuring long-term use without frequent lamp amnewid.
Image 7.1: Projector features including 90,000 hours LED lamp bywyd.
8. Datrys Problemau
- Dim pŵer: Ensure the power adapter is securely connected to both the projector and the power outlet.
- Dim Delwedd: Check the input source selection. Ensure the connected device is powered on and sending a signal. Adjust focus.
- Delwedd aneglur: Adjust the focus ring. Ensure the projection surface is flat.
- Dim Sain: Check the volume settings on both the projector and the connected device. Ensure external speakers are properly connected or paired via Bluetooth.
- Rheolaeth Anghysbell Ddim yn Gweithio: Replace the batteries. Ensure there are no obstructions between the remote and the projector's IR receiver.
- Problemau Cysylltiad WiFi: Ensure your device and projector are within range of the WiFi network. Restart both devices.
9. manylebau
Detailed technical specifications for the TOPTRO X2 Projector:
Image 9.1: Brightness and contrast comparison.
| Nodwedd | Manyleb |
|---|---|
| Brand | TOPTRO |
| Cyfres Model | X2 |
| Math Arddangos | LCD |
| Datrysiad Brodorol | 1280 x 720 picsel |
| Datrys a Gefnogir | Llawn HD 1080P |
| Disgleirdeb | 12000 o Lumens |
| Cymhareb Cyferbyniad | 20000:1 |
| Technoleg Cysylltedd | Wi-Fi, Bluetooth |
| Rhyngwyneb Caledwedd | HDMI, USB, AV |
| Cywiriad Keystone | Manual ±15° (Vertical) |
| Swyddogaeth Chwyddo | 75% - 100% |
| Lamp Bywyd | Hyd at 90,000 awr |
| Dimensiynau Cynnyrch (L x W x H) | 21.2 x 17.2 x 8 cm |
| Ffactor Ffurf | Cludadwy |
| Math Mowntio | Pen bwrdd |
10. Gwarant a Chefnogaeth
TOPTRO is committed to providing high-quality products and professional technical support. While specific warranty details may vary by region or retailer, TOPTRO ensures quality control before delivery.
If you encounter any issues or have questions regarding your TOPTRO X2 projector, please do not hesitate to contact TOPTRO customer support. Our team is available to assist you.
For support, please refer to the contact information provided with your purchase or visit the official TOPTRO websafle.
