INTERFACING SOLUTIONSSWRFD-60L

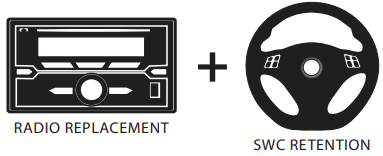

Radio Replacement with SWC + Aux Input Retention
for FORD, LINCOLN & MERCURY Vehicles
User Manual

PRODUCT FEATURES:

• Retains factory features in select FORD, LINCOLN, and MERCURY vehicles while functioning with an aftermarket radio.
• Pre-programmed to retain factory Steering Wheel Controls (on vehicles without Sync).
• iPhone Voice Recognition (VR) feature from SWC on select Kenwood, Pioneer, Alpine, and JVC radios.
• Retains factory Aux-Input and Subwoofer (if equipped).
• EIA color-coded wiring for easy installation.

PARTS INCLUDED:

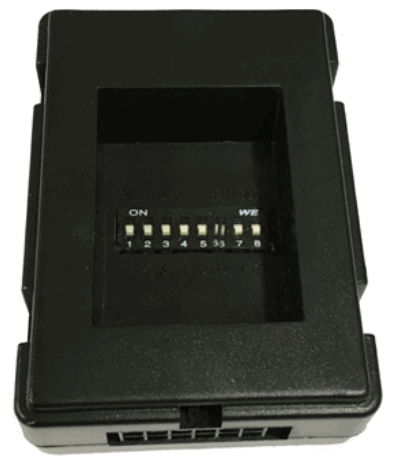

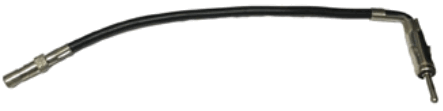

SWRFD-60L MODULE	SWRFD-60L HARNESS	Antenna Adapter	SWC CABLE

INSTALLATION DIAGRAM:

NOTES:

1. Only supports analog Steering Wheel Control type.
2. Use part number SWRFD-60 for CAN-Bus Steering Wheel Control.
3. The output signal stated above may not cover all Years/Models.
4. Does not retain SYNC.
5. Not compatible with factory-installed Sony systems and THX systems with amplifier.

ANALOG CONNECTION:
HOW TO DETERMINE IF THE VEHICLE HAS ANALOG SWC:

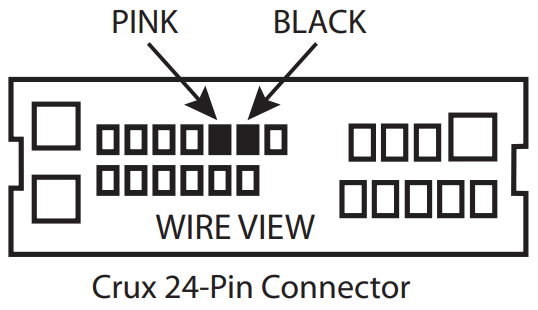

Analog Steering Wheel Control (SWC) signal vehicles will have wires populated and line up to the PINK and BLACK wire on the 24-Pin Crux connector.
If one wire is missing then you will need to use Crux part number SWRFD-60.

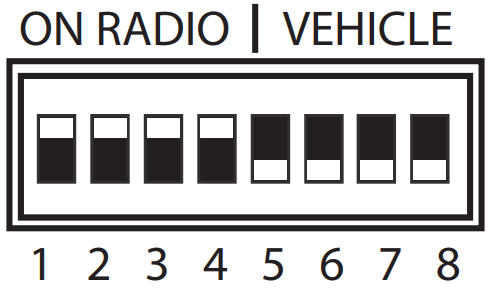

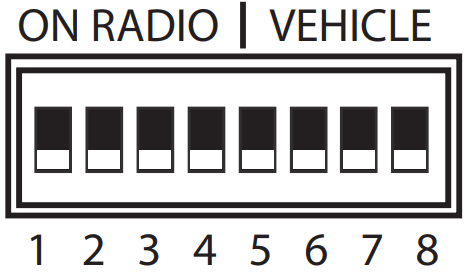

DIP SWITCH SETTINGS:

AFTERMARKET RADIO DIP SWITCH SETTINGS:

RADIO BRAND:	DIP:	1	2	3	4
Atoto, Dual, Farenheit, Jensen, Pioneer		OFF	OFF	ON	ON
Power Acoustik, Soundstream		OFF	OFF	ON	ON
Blaupunkt, Most off-brand Radios		OFF	OFF	ON	ON
Alpine		OFF	OFF	OFF	OFF
Clarion		OFF	ON	ON	OFF
Kenwood		OFF	ON	ON	ON
JVC		OFF	ON	OFF	ON
Boss, Old Sony		OFF	ON	OFF	OFF
New Sony		OFF	OFF	ON	OFF

SWC MODULE

NOTE: For Auto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most off-brand radios, check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

FORD STEERING WHEEL CONTROL DIP SWITCH SETTING:

	DIP:	5	6	7	8
Ford		OFF	OFF	OFF	OFF

SWRFD-60L
SWC MODULE

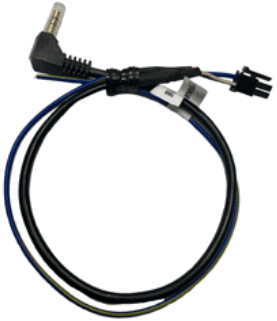

3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used.

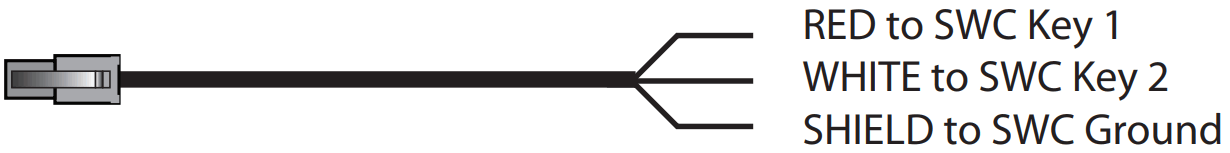

For aftermarket radios that have wires for SWC connections, cut off the 3.5mm plug on the Crux SWC Cable and connect the SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case, “shield” does not need to be connected.

VEHICLE APPLICATIONS:

FORD		MERCURY
2004-2006	Crown Victoria	2003-2005	Grand Marquis
2007-2010	Edge	2006-2010	Mariner
2008-2012	Escape	2006-2011	Milan
2004-2010	Expedition	2005-2007	Montego
2004-2010	Explorer	2004-2007	Monterey
2004-2012	F-150	2006-2010	Mountaineer
2004-2012	F-250	2008-2009	Sable
2004-2012	F-350	LINCOLN
2004-2012	F-450	2003-2005	Aviator
2004-2012	F-550	2004-2006	LS
2005-2007	Five Hundred	2006-2008	Mark LT
2009-2012	Flex	2009-2010	MKS
2004-2011	Focus	2010-2011	MKT
2004-2007	Freestar	2006-2011	MKX
2005-2007	Freestyle	2006-2011	MKZ
2006-2012	Fusion	2007-2011	Navigator
2004-2012	Mustang	2004-2010	Town Car
2008-2010	Taurus	2006-2006	Zephyr
2004-2005	Thunderbird

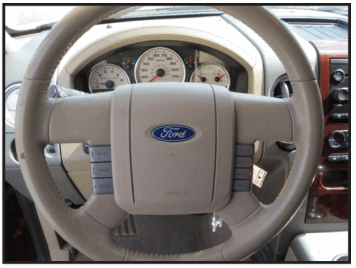

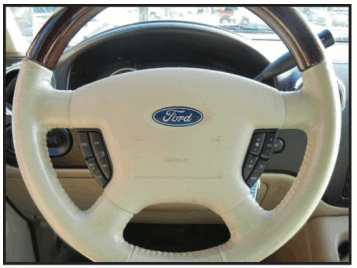

Compatible Ford SWC Types:

Type 1 4-Button	Type 2 4-Button	Type 3 5-Button	Type 4 6-Button

NOTE:
Steering Wheel Controls are NOT retained in vehicles with Sync.

http://www.cruxinterfacing.com
Crux Interfacing Solutions
• Chatsworth, CA 91311
• phone: 818-609-9299
• fax: 818-996-8188
• www.cruxinterfacing.com
rev.040121
