UPGRADABLE HI-RES 5.1
PCI-E SOUND CARD WITH
SMARTCOMMS KIT
Model No.: SB1870
QUICK START GUIDE

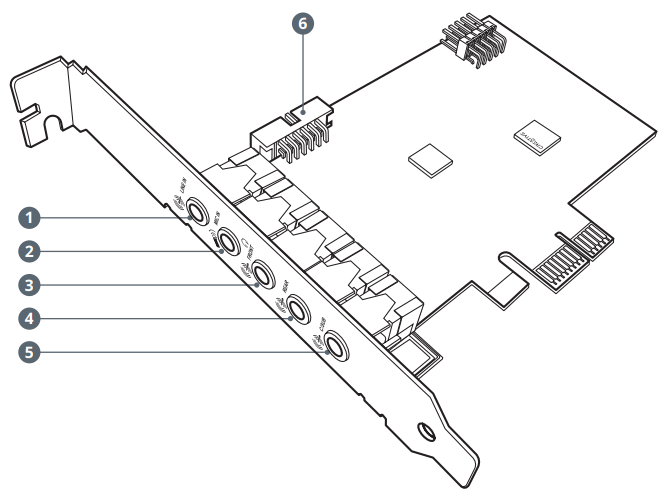

OVERVIEW
- Line-in port
- Mic-in port
- Headphone / Front (L / R) port
- Rear (L / R) port
- Center / Subwoofer port
- DBPro Connector (2×6 pin)

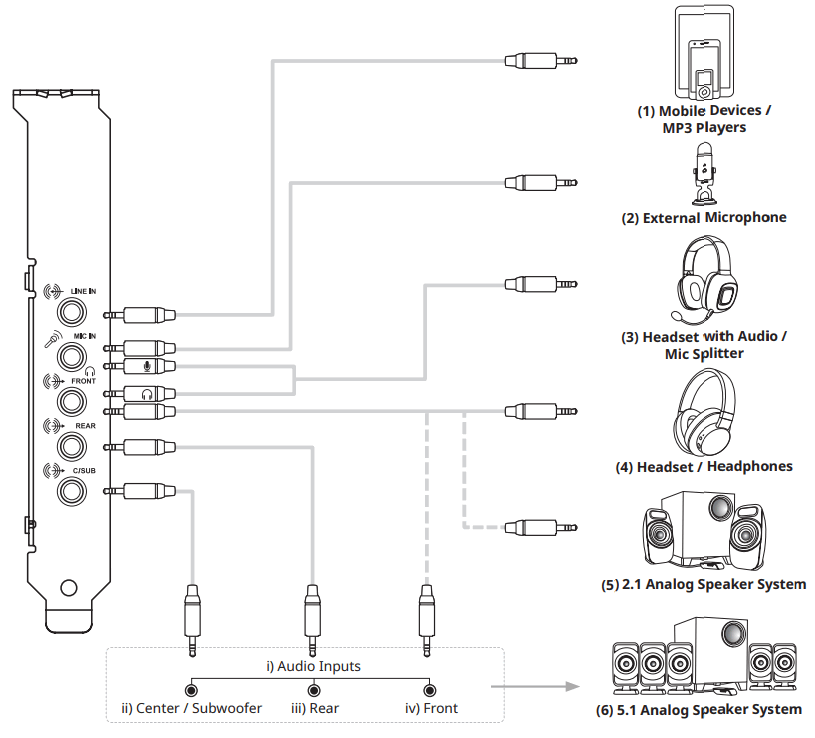

CONNECTIVITY
INSTALLATION

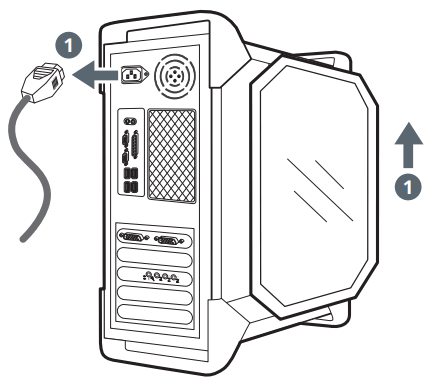

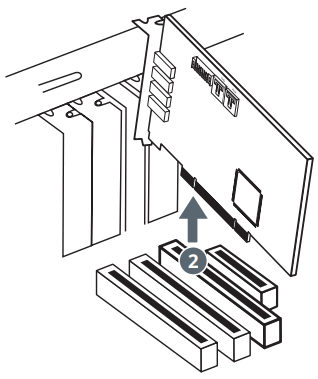

| 1. Remove power cable from the PC, then remove its cover or side panel. | 2. If there is an existing sound card slotted in a PCI / PCI-e slot, remove it from the PC. |
 |
 |

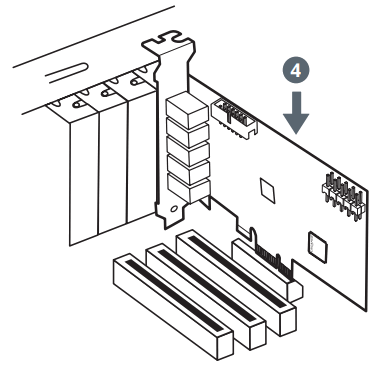

| 3. Remove the metal bracket from a preferred PCI-e slot in the PC. | 4. Gently but firmly slot the Sound Blaster Audigy Fx V2 sound card into the PCI-e slot. |
 |
 |

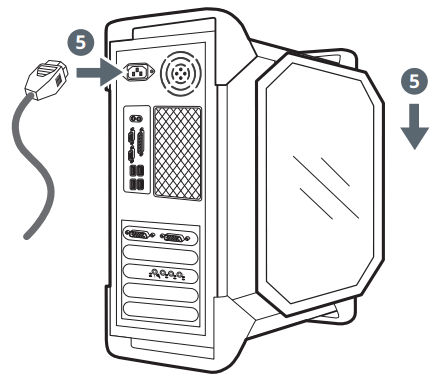

| 5. Replace the cover or side panel, then reconnect the PC’s power cable. |  |
CREATIVE APP
With the Creative app, you can:
- Access and control our all-new SmartComms Kit’s suite of smart communication features such as VoiceDetect, NoiseClean-in, and NoiseClean-out to improve your online communication experience
- Personalize audio effects with Sound Blaster Acoustic Engine’s sound mode features such as Surround, Bass, Crystalizer, Smart Volume, and Dialog Plus
- Experience professionally-tuned audio presets for movies, music, and games
- Set up speakers and headphones’ configurations
- Adjust playback and recording settings
Download the Creative app from creative.com/support/SBFxV2
OTHER INFORMATION
Please visit creative.com/compliance/SBFxV2 for user guide and safety and regulatory information.
PRODUCT REGISTRATION
Registering your product ensures you receive the most appropriate service and product support available.
You can register your product within the Creative app or at creative.com/register.
Waste Electrical and Electronic Equipment (WEEE) Symbol
The use of the WEEE Symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help protect the environment. For more detailed information about the recycling of this product, please contact your local authority, your household waste disposal service provider or the shop where you purchased the product.
| REGISTER YOUR PRODUCT | TECHNICAL SUPPORT |
| creative.com/register | creative.com/support |
Serial Numbe
© 2021 Creative Technology Ltd. All rights reserved. Creative, the Creative logo, Blaster, Sound Blaster, the Sound Blaster logo, Audigy and CrystalVoice are trademarks or registered trademarks of Creative Technology Ltd. in the United States and/or other countries. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. All other trademarks are properties of their respective owners. Use of this product is subject to a limited hardware warranty. All specifications are subject to change without prior notice.
PN: 03SB187000000 Rev B
