WD967 Issue 5 Installation Guide
EBMPIR-MB-DD-LT30
Mini PIR Detector for Luminaire Integration (Batten Mount)
EBMPIR-MB-DD-LT30 Presence Detector
EBMPIR-MB-PRM-LT30
DALI/DSI digital dimming, miniature, low temp, luminaire mounted, PIR, presence detector
Warning
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE wiringregulations.
Dimensions (mm)
Downloads and Videos

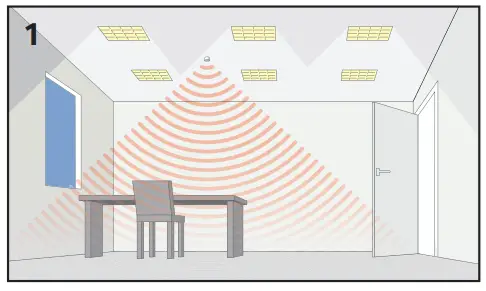

Detection pattern
Walk across
| Height | Range Diameter |
| 9m | 14m |
| 7m | 13m |
| 5m | 11m |
| 3m | 8m |
Walk towards
| Height | Range Diameter |
| 9m | 7m |
| 7m | 7m |
| 5m | 7m |
| 3m | 5m |
Walk towards & walk across explained
Wiring
Dimming ouputs
Basic insulation only. Although low voltagethis is not an SELV output and should be treated as if mains potential. Use mains rated wiring.
Key
- Neutral
- Live
- 10A circuit protection if required
- Load
Walk towards & walk across explained
IP luminaire fitting
Cut mounting hole
Mounting without key
Mounting with key. Note: Key to be at the top of the sensor.
Wire in plugs & connect to detector
Key
- M20 nut
- 5° washer (optional)
- Silicone washer
- IP spacer
• Note: Use the 5° spacers where the luminaire has a draft angle.
• Ensure that the silicone washer and/or IP spacer are used to maintain IP rating.
Default Settings
Time out: 20 minutes.
LUX on level: 9
LUX off level: 9
Sensitivity: 9
Detection: Presence
Adjustments can be made using the optional UHS5 or UNLCDHS handsets.
Testing
- Power up the sensor. The load should come on immediately.
- Vacate the room or remain very still and wait for the load to switch off (this should take less than 20 minutes).
- Enter the room or make some movement and check that the load switches on.
| Part code | EBMPIR-MBPRM-LT30 |
| Weight | 0.100kg |
| Supply voltage AC | 230 VAC +/- 10% |
| Supply frequency | 50Hz |
| Power consumption parasitic | 807mW |
| Max load: | |
| Incandescent lighting | 2A |
| Fluorescent lighting | 2A |
| Compact fluorescent lighting | 2A |
| LED lighting | 2A |
| Resistive heaters | 2A |
| Cable specification | 1m 1/1.13 solid core cable 105ºC |
| SON lighting | Switch loads via a contactor |
| Working temperature range | |
| Humidity | 5 to 95% noncondensing |
| Material (casing) | Flame retardant ABS/PC |
| Insulation class | 2 |
| IP rating | 65 |
Compliance  |
EMC-2014/30/EU LVD-2014/35/EU |
Accessories & associated products
| Part Number | Description | |
 |
UHS5 | Compact, programming/commissioning handset |
 |
UHS7 | Compact, user handset |
 |
UNLCDHS | Universal LCD IR handset |
www.cpelectronics.co.uk
CP Electronics
A Business unit of Legrand Electric Limited,
Brent Crescent, London NW10 7XR, UK
t. +44 (0)333 900 0671
enquiry@cpelectronics.co.uk
connect with us
Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
20923
