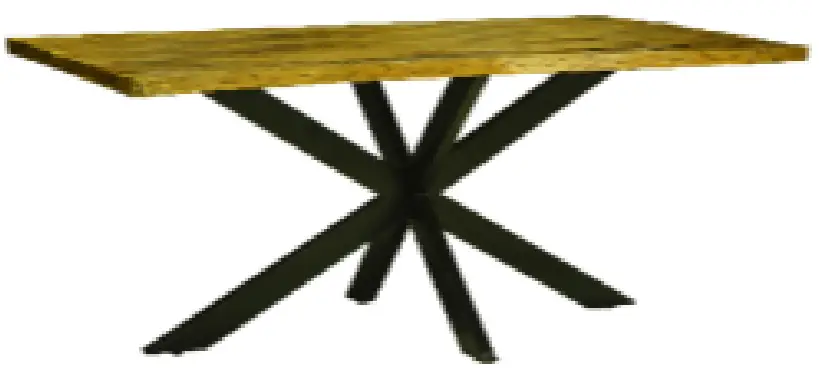

Carrow KRL-2 Mango Rectangular Dining Table
Parts
|
A X 1 |

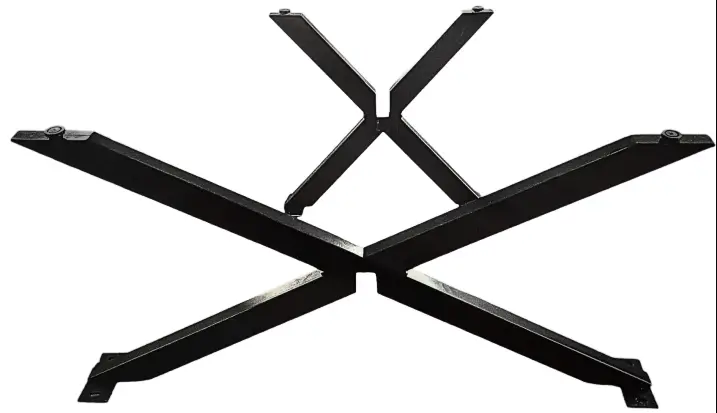

B-1X1
B-2X1 |

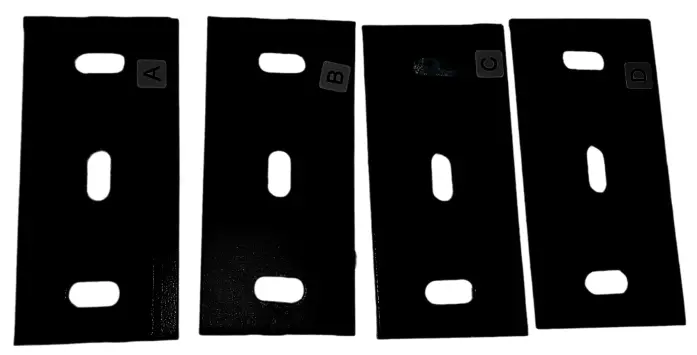

C X 4 |
 |
 |
 |
ASSEMBLY INSTRUCTIONS

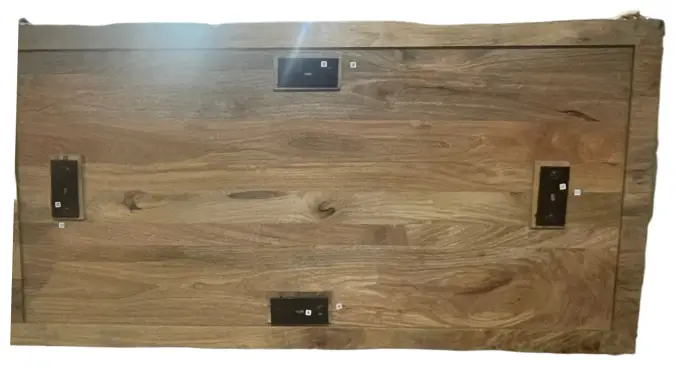

- Remove Plates From Table Top By Using G

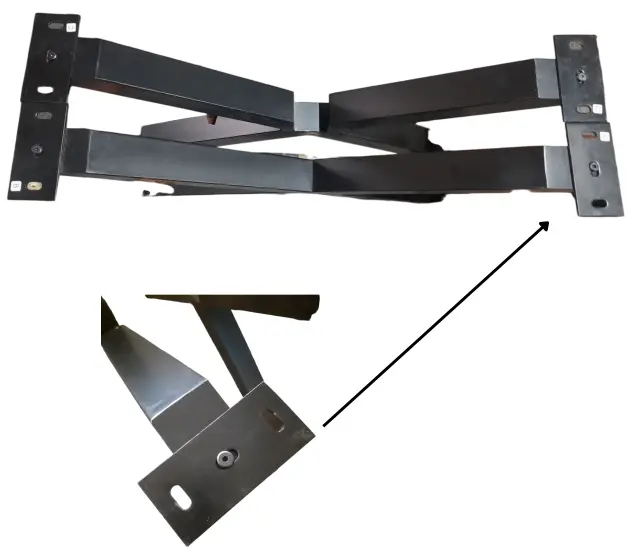

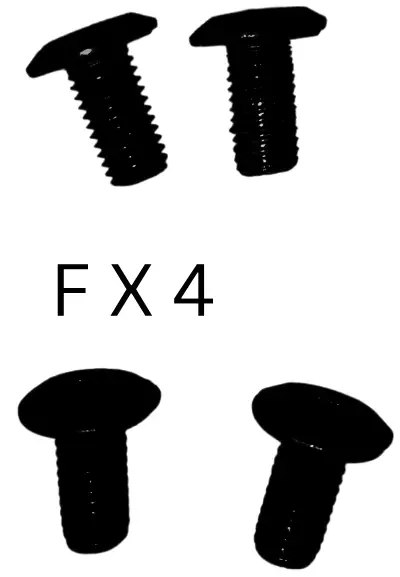

- Fix C On B-1 & B2 Using F & G

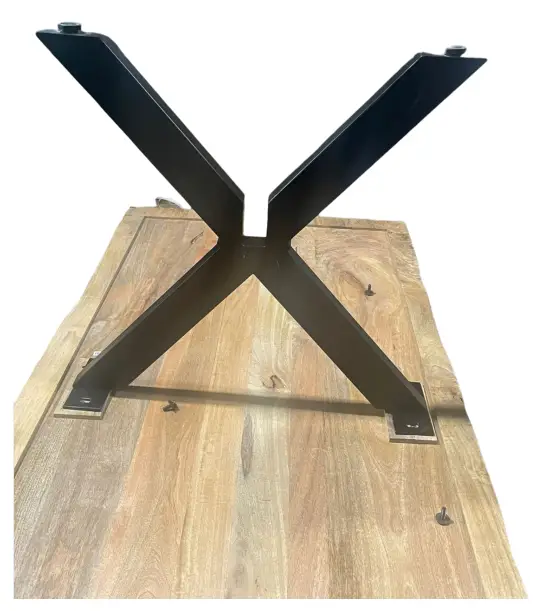

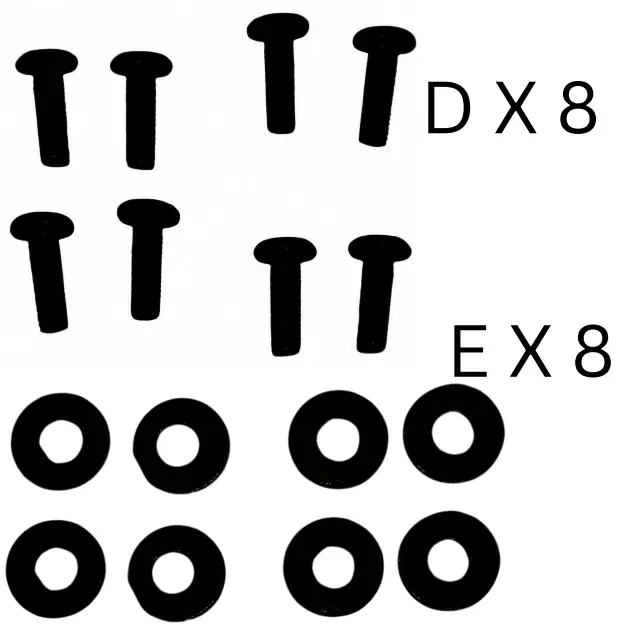

- Fix B-1 On Table Top Loosely Tighten The Bolt D With E

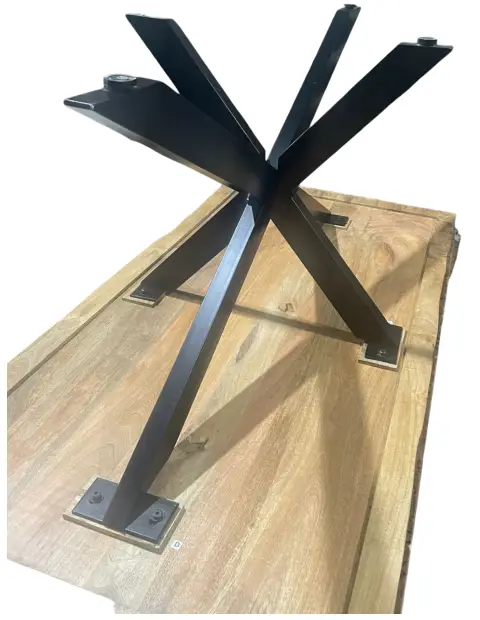

- Likewise B-1, Fix B-2 On Table Top With Help Of D, E, G Tight All Bolts With G
