Blue Snail Rotaty Countdown Timer Instruction Manual

Blue Snail Rotaty Countdown Timer Instruction Manual

Contents hide

1 Overview:

2 Product panel:

3 How to Use the Digital Timer:

4 Specification:

5 Documents / Resources

5.1 References

Overview:

The digital timer with count up and down function, which can be used as a countdown timer, counting down from 99 minutes and 55 seconds to zero, or as a stopwatch counting up from zero to 99 minutes and 55 seconds. You can use it for kitchen cooking and baking, exercise, gym, workout, sports, games, classroom teaching and more.

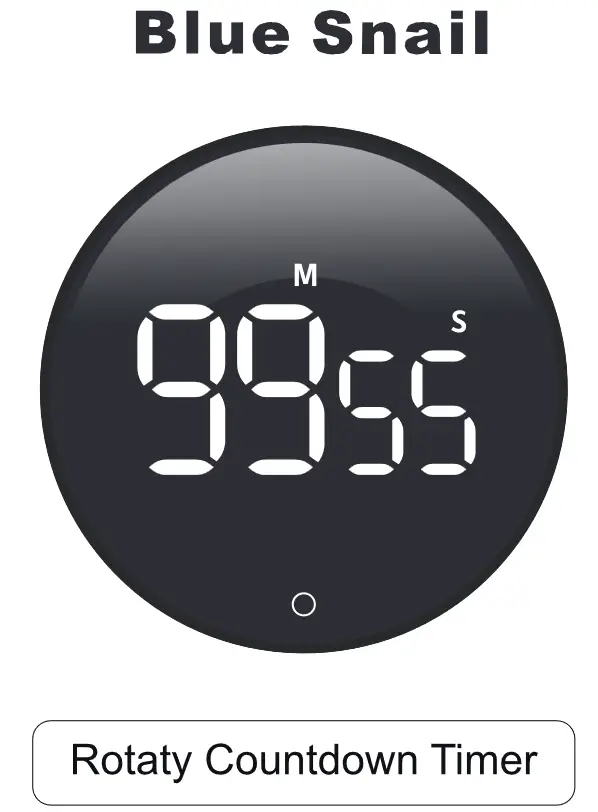

Product panel:

How to Use the Digital Timer:

Using as a countdown timer

Countdown Time Setting:
Rotate the product circle to set the required time data, rotate to right or left to increase (+) or decrease (-) time data. Setting increment: Second: 5 seconds Minute data quick setup: Rotate the circle rapidly and assure the rotate angle is greater than 60 degrees, the minute data appear and rotate to right or left to increase (+) or decrease (-) the minute time data. Setting increment: 1 minute

Start/Stop Countdown:
After countdown time is set, press [o] button to work immediately. Press [o] button to pause countdown and press [o] button again hold for zero clearing. Working increment: 1 second
Buzzer alarm :
When the countdown time come to 00:00, buzzer alarm activates and LED screen will flash, buzzer alarm will last 60 seconds and shut down automatically. Press [o] button to stop buzzer alarm manually. Press volume button to choose the required volume.

Recall the last Countdown Time:
After last countdown completed at 00:00, simply press [o] button once to recall the last countdown setting, press [o] button again to restart another countdown circle

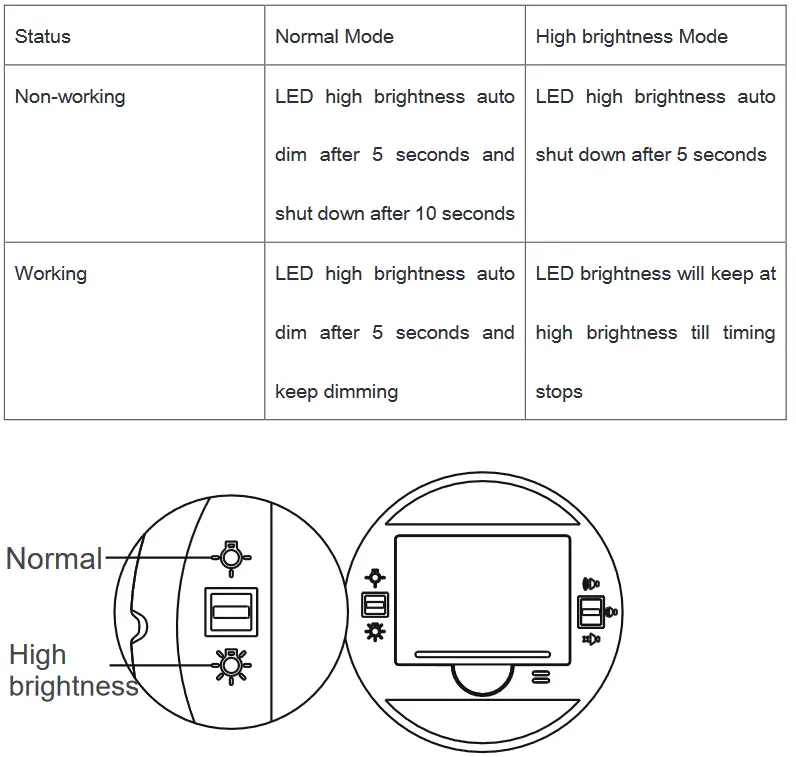

LED brightness mode:
Press light button to choose required brightness.

Count up as a stopwatch:
Press and hold [o] button to clear any time data to 00:00, press [o] button again and the product starts counting up as a stopwatch.Counting up from 00 minute 00 seconds to Max: 99 minutes 55 secondsPress [o] button to pause count up and press [0] button again hold for zero clearing. Working increment: 1 second
Installation/Fixing: Method 1:
Simple place the timer upright on any flat surface Method 2: Four strong magnets at the back for fix on any iron surface, simply stick to fridge door, microwave oven etc.
