Instruction Manual

USB-C Multi-functional HUB

Baseus 0304 USB-C Multi-Functional Hub

Product Introduction

This USB C 9 in 1 hub provides a stable connection and increases the productivity of your device by expanding the female USB C port to multiple possibilities of connectivity. Keep your laptop charging while still providing power to each external device attached. Extensive compatibility meets every need of almost all USB C devices and unlock ultimate convenience.

Structure Diagram

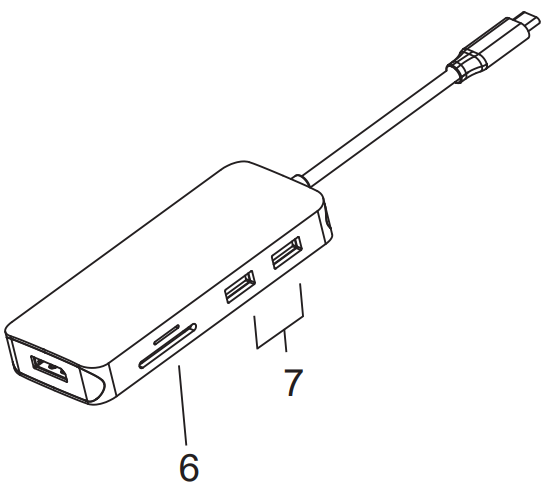

Baseus 0304 USB-C Multi-Functional Hub Structure Diagram 1 Baseus 0304 USB-C Multi-Functional Hub Structure Diagram 2

  1. DP
  2. Baseus 0304 USB-C Multi-Functional Hub HDMI1
  3. Baseus 0304 USB-C Multi-Functional Hub HDMI2
  4. USB3.0
  5. PD3.0
  6. SD&TF Card Reader
  7. USB2.0
Features
  1. DP:
    4Kx2K 3840×2160 (work separately if source is DP1.4 )
    4Kx2K 3840×2160 (work separately if source is DP1.2 )
  2. HDMI 1: 4Kx2K 30Hz / 3840×2160 max
  3. HDMI 2:
    4Kx2K 60Hz / 3840×2160 (work separately while source is DP1.4 )
    4Kx2K 30Hz / 3840×2160 (work separately while source is DP1.2 )
  4. USB 3.0:
    Data transfer speed up to 5Gbps, 5V/0.9A@4.5W.
  5. PD3.0:
    Support 100W power in, but charging is limited with 87W for safety.
  6. SD/TF Card Slots:
    Read: 25 – 30MB/s; Write: 20 – 25MB/s;affected by card’s quality.
  7. USB 2.0:
    Data transfer speed up to 480Mbps, 5V/0.5A@2.5W

Support SST / MST
Comply with USB-C interface specification
Built in conversion chip, plug and play

Connection

Baseus 0304 USB-C Multi-Functional Hub Connection

Graphics Settings for window 10

1.Clone mode

Right click desktop >Graphics Settings >Display

Baseus 0304 USB-C Multi-Functional Hub 1.Clone mode

Baseus 0304 USB-C Multi-Functional Hub 1.Clone mode A

2.Extended Desktop(NOT supported by APPLE)

Right click desktop >Graphics Settings >Display

Baseus 0304 USB-C Multi-Functional Hub 2.Extended Desktop

Baseus 0304 USB-C Multi-Functional Hub 2.Extended Desktop A

Baseus 0304 USB-C Multi-Functional Hub 2.Extended Desktop B

3.Collage(NOT supported by APPLE)

NOTE: For this mode, PC or Notebook’s Video card MUST support MST
Right click desktop >Graphics Settings >Display

Baseus 0304 USB-C Multi-Functional Hub 3.Collage

Baseus 0304 USB-C Multi-Functional Hub 3.Collage A

F&Q

A. Why is there no video output ?

  1. Pls make sure if your USB-C devices support video output.
  2. Pls make sure if the connection is good.
  3. Pls use standard HDMI cable.

B. Why is there no audio output from HDMI ?

  1. Pls make sure if there’s audio output on the Monitor.
  2. Pls set the external monitor as default audio output device.

Note

  1. The USB-C source devices (mobile/notebook/tablet PC) must support OTG.
  2. For Video output, USB-C source devices must support video output.
  3. 4Kx2K@60Hz video display, need your computer support DisplayPort (DP) v1.4 (HBR3).
  4. Please update Mac OS of your MacBook to Catalina (10.15.1) or above for better compatibility.
