1. Introduction
This manual provides detailed instructions for the safe operation, installation, and maintenance of your PHILODECO 8000BTU Window Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference. Proper use and care will ensure optimal performance and longevity of your air conditioner.
2. Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Read all instructions before using this air conditioner.
- Plug into a grounded 3-prong outlet. Do not remove the grounding prong.
- Do not use an adapter or extension cord.
- Do not operate any air conditioner with a damaged cord or plug.
- Do not block airflow to the unit.
- Ensure the unit is securely installed to prevent falling.
- Always disconnect power before cleaning or servicing.
- Do not attempt to repair or replace any part of your air conditioner unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
3. What's in the Box
Carefully unpack your air conditioner and check the contents against the list below. If any items are missing or damaged, contact customer support.
Image: Components included in the package.
- Window Air Conditioner Unit
- Remote Control (with 2 AAA batteries)
- Insulation Strip
- Window Sash Seal
- Sash Lock
- Foam Top Window Gasket
- Top Rail
- Lock Frame (x2)
- Screws (various sizes: 3/4" x4, 3/8" x4, 1/2" x3)
- Filler Panels (x2)
4. Product Overview & Dimensions
The PHILODECO 8000BTU Window Air Conditioner is designed to provide efficient cooling for rooms up to 350 sq.ft. It features multiple operating modes, adjustable fan speeds, and a remote control for convenient use.
Image: Product dimensions and window installation requirements.
Key Dimensions:
- Product Dimensions (D x W x H): 15.59" x 18.58" x 13.31"
- Power Cord Length: 4.9 ft
- Compatible Window Width: 23" - 36"
- Minimum Lower Sash Height: 14.5"
Image: Overview of available operating modes.
5. Installation Instructions
This air conditioner is designed for installation in standard double-hung windows with a width between 23 inches and 36 inches. The lower sash (the lower part of the window that moves up and down) must allow for a minimum opening height of 14.5 inches.
General Installation Steps:
- Prepare the Window: Ensure the window opening is clean and free of obstructions.
- Attach Top Rail: Secure the top rail to the top of the air conditioner unit using the provided screws.
- Install Filler Panels: Slide the filler panels into the side channels of the unit.
- Place Unit in Window: Carefully lift the unit and place it in the window opening, ensuring the bottom rail rests on the window sill.
- Secure Unit: Extend the filler panels to fill the window opening and secure them with screws. Install the sash lock to prevent the window from being opened from the outside.
- Seal Gaps: Apply the insulation strips and foam top window gasket to seal any gaps around the unit and filler panels, preventing air leakage.
- Plug In: Once securely installed and sealed, plug the unit into a grounded 3-prong electrical outlet.
Refer to the detailed installation guide provided with your unit for specific diagrams and step-by-step instructions.
6. Operating Instructions
Your PHILODECO 8000BTU Window Air Conditioner can be operated using the control panel on the unit or the included remote control.
Control Panel and Remote Control:
The unit features a clear LED digital display and a full-range remote control for convenient one-click operation. The remote allows you to adjust settings from a distance.
Operating Modes:
The unit offers 4-in-1 integrated design modes to adapt to various weather conditions and preferences:
- Cooling Mode: Provides rapid cooling for rooms up to 350 sq.ft. Adjust the temperature to your desired comfort level.
- Dehumidifying Mode (Dry Mode): Reduces humidity in the room without significant cooling, ideal for damp conditions.
- Auto Mode: The unit automatically selects the appropriate operating mode (Cool or Fan) and fan speed based on the ambient room temperature to maintain the set temperature.
- Fan Mode: Circulates air without cooling. Choose from multiple fan speeds.
- Sleep Mode: Gradually increases the set temperature over several hours to save energy and provide comfortable sleeping conditions. The fan speed will automatically adjust to a lower setting for quiet operation.
- Eco Mode: Optimizes energy consumption by cycling the compressor on and off to maintain the set temperature, reducing power usage.
Fan Speeds:
The unit offers 3 adjustable fan speeds (Low, Medium, High) to control the intensity of airflow.
Timer Function:
Utilize the built-in 24-hour programmable timer to set the unit to turn on or off automatically at specific times, enhancing convenience and energy saving.
Image: 24-hour timer and quiet operation for undisturbed sleep.
Airflow Adjustment:
The unit features 4-way directional airflow, allowing you to manually adjust the louvers to direct the cool air where it is needed most in the room.
Image: Illustration of 4-way airflow cooling.
7. Maintenance
Regular maintenance ensures the efficiency and longevity of your air conditioner.
Filter Cleaning:
The unit includes a built-in intelligent filter check reminder function to prompt you when it's time to clean the filter. The detachable, reusable filter traps dust, dander, and household impurities. It supports direct water rinsing, eliminating the need for extra purchase costs and helping to maintain fresh circulating air effortlessly.
- Disconnect Power: Always unplug the air conditioner before cleaning.
- Remove Filter: Gently pull out the air filter from its slot.
- Clean Filter: Rinse the filter under running water (preferably warm, not hot) until clean. For heavy dirt, a mild detergent can be used, followed by thorough rinsing.
- Dry Filter: Allow the filter to air dry completely before reinserting it. Do not expose to direct sunlight or use heat to dry.
- Reinstall Filter: Slide the dry filter back into its original position.

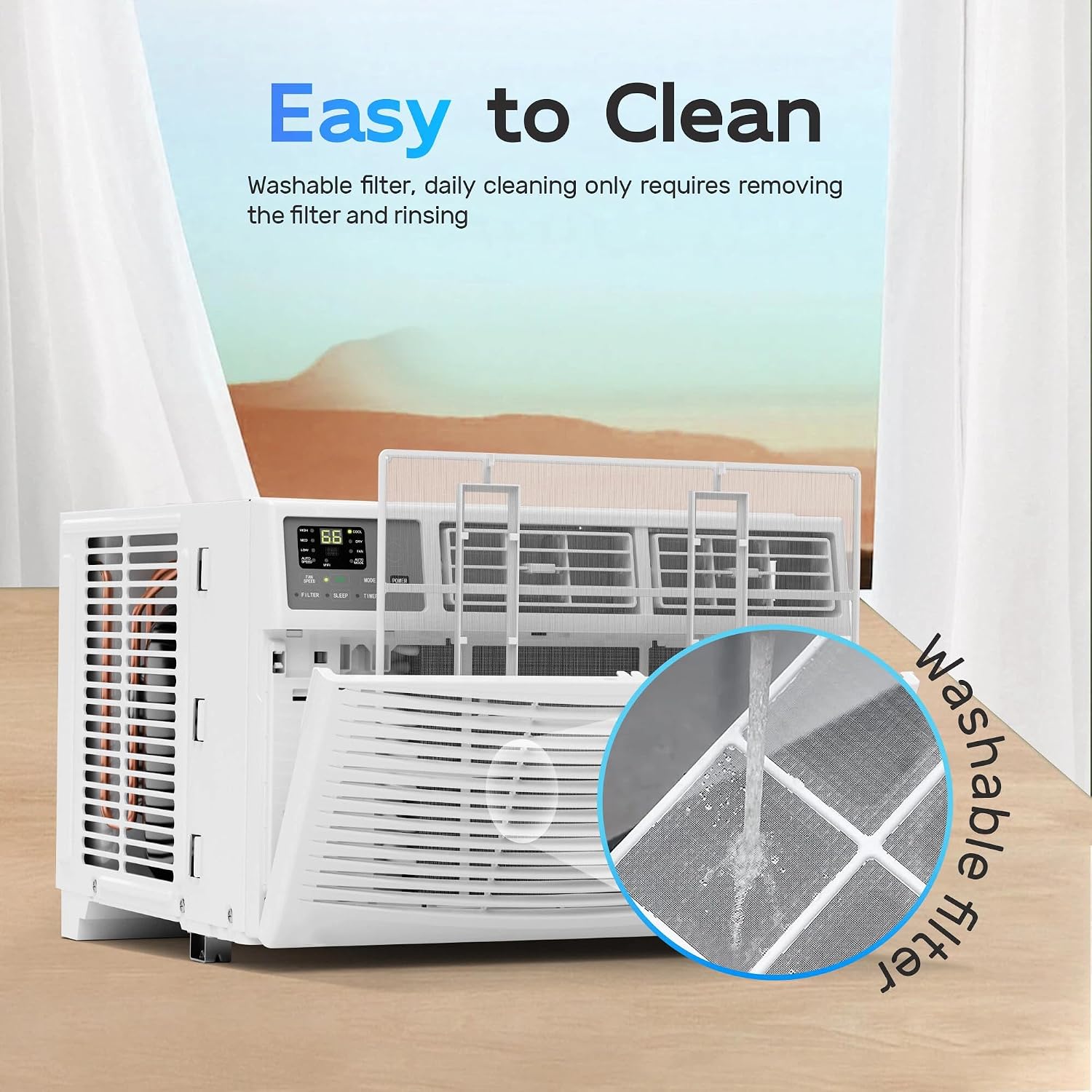

Image: Easy to clean washable filter.
Unit Cleaning:
Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
8. Troubleshooting
Before contacting customer support, please refer to the following troubleshooting guide for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air conditioner does not start | No power; Plug not fully inserted; Blown fuse/tripped circuit breaker; Unit is in delay mode. | Ensure unit is plugged in; Check fuse/breaker; Wait 3 minutes for compressor to restart. |
| Unit not cooling sufficiently | Dirty air filter; Blocked air intake/outlet; Room temperature too high; Window/door open; Incorrect mode selected. | Clean air filter; Clear obstructions; Close windows/doors; Select Cool mode and lower temperature. |
| Water dripping inside | Unit not properly tilted; Drain plug blocked. | Ensure unit is slightly tilted outwards for proper drainage; Check and clear drain plug. |
| Noisy operation | Loose installation; Fan hitting obstruction; Normal operating sounds. | Check installation for tightness; Ensure no obstructions; Some sounds (e.g., refrigerant flow) are normal. |
9. Specifications
Detailed technical specifications for the PHILODECO 8000BTU Window Air Conditioner.
| Feature | Detail |
|---|---|
| Brand | PHILODECO |
| Model Name | 8000BTU |
| Cooling Power | 8000 British Thermal Units (BTU) |
| Coverage Area | Up to 350 sq.ft |
| Product Dimensions (D x W x H) | 15.59" x 18.58" x 13.31" |
| Item Weight | 44.8 pounds |
| Voltage | 115 volts AC |
| Wattage | 110 watts |
| Noise Level | 55 dB |
| Installation Type | Window |
| Control Method | Remote Control |
| Refrigerant Type | R32 (Ozone-safe) |
| Special Feature | Inverter Compressor |
10. Warranty and Customer Support
Limited Warranty:
This PHILODECO product comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and limitations. Retain your proof of purchase for warranty claims.
Customer Support:
For any questions, technical assistance, or warranty inquiries, please contact PHILODECO customer support. Our professional after-sales support team is available to assist you with long-term safe use and any issues you may encounter.
Contact information can typically be found on the PHILODECO official website or on the product packaging.
