1. Product Overview
The tectake® Retractable Side Awning is designed to provide privacy, wind protection, and shade for your outdoor living areas such as balconies, terraces, and gardens. Its robust construction and user-friendly design ensure comfort and durability.
Key Features:
- Effective Privacy and Protection: Creates a barrier against prying eyes, wind, and low sun.
- Practical Automatic Mechanism: Features an automatic winding system for quick and effortless extension and retraction.
- Durable and Water-Repellent Fabric: Made from coated polyester, offering high tear resistance and protection from moisture. The opaque surface enhances visual comfort.
- Solid and Easy-to-Install Structure: Constructed with powder-coated steel and aluminum for stability, durability, and corrosion resistance.
2. Setup Instructions
This awning requires mounting to a stable wall or surface. All necessary mounting materials are included for a straightforward installation process.
2.1. Unpacking and Component Check
- Carefully unpack all components from the packaging.
- Verify that all parts listed in the packing list are present and undamaged. Refer to the 'Technical Specifications' section for a list of components.
2.2. Mounting the Awning
The awning consists of a main housing unit and a separate receiving post. Both need to be securely mounted.
- Choose Location: Select a suitable, stable wall or surface for mounting the main housing unit. Ensure the area for the receiving post is also clear and stable, allowing for the full extension of the awning.
- Mount Main Housing: Position the main housing unit vertically against the wall at the desired height. Mark the drilling points for the mounting brackets.
- Drill Holes: Drill holes at the marked points using an appropriate drill bit for your wall type. Insert wall anchors if necessary.
- Secure Housing: Attach the main housing unit securely to the wall using the provided screws and washers. Ensure it is level and firmly fixed.
- Mount Receiving Post: Extend the awning fabric slightly to determine the exact position for the receiving post. The post should be positioned to allow the awning to be fully extended and taut. Mark the drilling points for the base plate of the receiving post.
- Secure Receiving Post: Drill holes and secure the receiving post's base plate to the ground or a stable surface using the provided screws and anchors. Ensure the post is vertical and aligned with the main housing.
3. Operating the Awning
The tectake® side awning features an automatic retraction mechanism for ease of use.
3.1. Extending the Awning
- Grasp the handle located on the leading edge of the awning fabric.
- Gently pull the handle horizontally away from the main housing unit. The fabric will extend smoothly.
- Guide the handle towards the receiving post.
- Hook the handle securely into the designated slot or catch on the receiving post. Ensure it is firmly engaged to keep the fabric taut.
3.2. Retracting the Awning
- Unhook the handle from the receiving post.
- Slowly guide the handle back towards the main housing unit. The automatic winding mechanism will retract the fabric.
- Ensure the fabric retracts evenly and without obstruction into the housing. Do not release the handle abruptly, as this can cause the fabric to snap back quickly.
4. Care and Maintenance
Regular care will prolong the life and appearance of your tectake® side awning.
4.1. Fabric Maintenance
- Cleaning: Clean the fabric with a soft brush or cloth and mild soapy water. Rinse thoroughly with clean water. Do not use harsh chemicals or abrasive cleaners, as these can damage the water-repellent coating.
- Drying: Always ensure the fabric is completely dry before retracting the awning for extended periods to prevent mold and mildew growth.
- Stains: For stubborn stains, use a specialized outdoor fabric cleaner, following the product instructions carefully.
4.2. Frame and Mechanism Maintenance
- Cleaning: Wipe down the powder-coated steel and aluminum frame with a damp cloth to remove dirt and dust.
- Lubrication: Periodically check the automatic winding mechanism for smooth operation. If needed, apply a silicone-based lubricant to moving parts, avoiding contact with the fabric.
- Inspection: Regularly inspect all screws and connections to ensure they remain tight. Tighten any loose fasteners.
5. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Awning does not extend or retract smoothly. | Obstruction in the mechanism; dirt or debris; lack of lubrication. | Check for obstructions. Clean the mechanism. Apply silicone lubricant to moving parts. |
| Fabric sags or is not taut when extended. | Receiving post not securely fixed; handle not properly engaged; fabric stretched. | Ensure the receiving post is firmly mounted. Verify the handle is fully hooked. If fabric is stretched, it may require professional adjustment or replacement. |
| Awning feels unstable. | Loose mounting screws; improper installation. | Check and tighten all mounting screws on both the main housing and the receiving post. Review setup instructions to ensure correct installation. |
| Mold or mildew on fabric. | Awning retracted while damp. | Clean the affected area with a mild mold/mildew remover designed for outdoor fabrics. Ensure fabric is completely dry before retracting. |

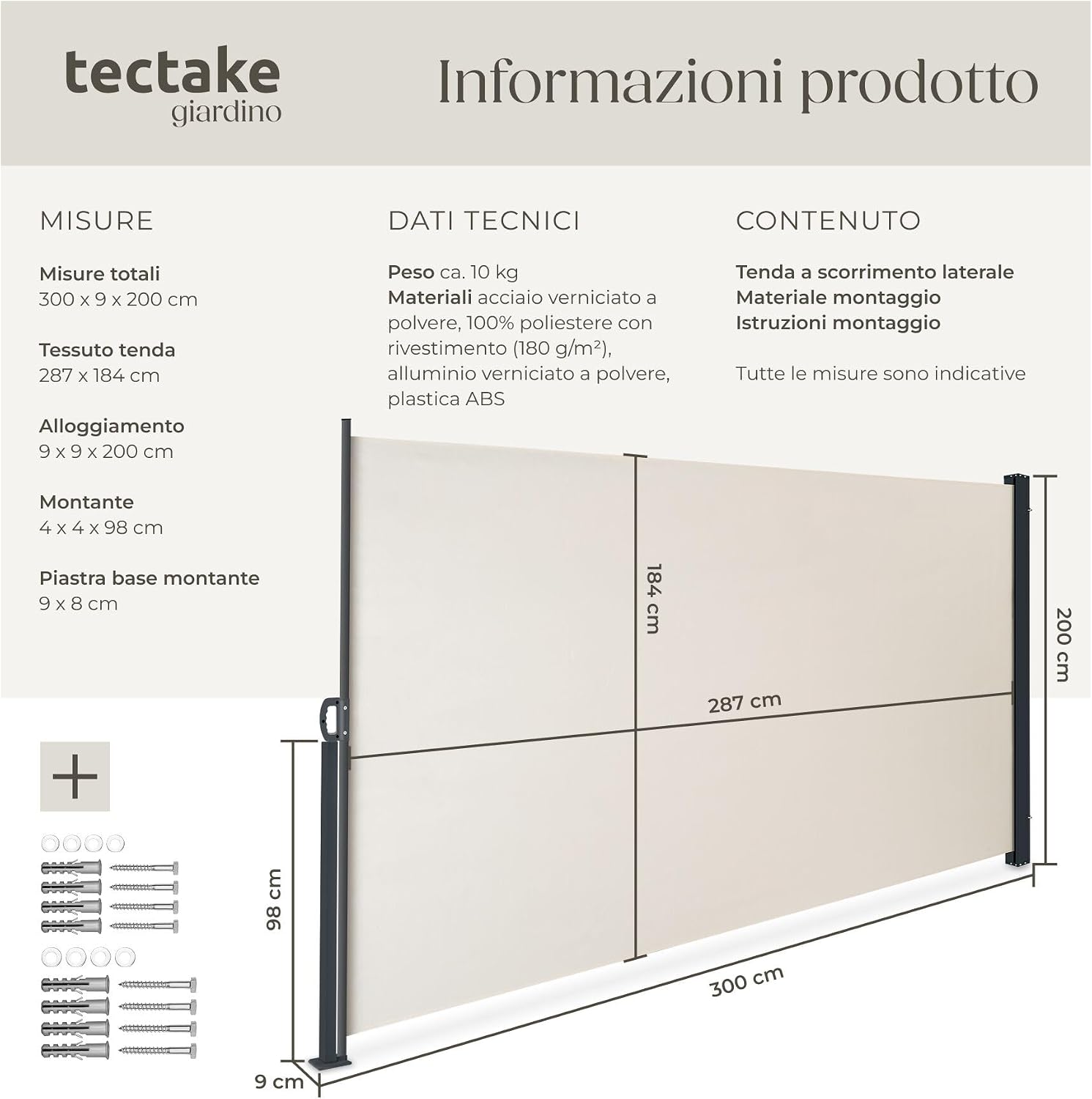

6. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | tectake |
| Model Number | 406596 |
| Color | Beige |
| Overall Dimensions (D x W x H) | Approx. 0.09 x 3 x 2 meters (300 x 9 x 200 cm) |
| Awning Fabric Dimensions | 287 x 184 cm |
| Fabric Thickness | 180 g/m² |
| Housing Dimensions | 9 x 9 x 200 cm |
| Receiving Post Dimensions | 4 x 4 x 98 cm |
| Base Plate Dimensions | 9 x 8 cm |
| Item Weight | Approx. 9.8 Kilograms |
| Materials | Powder-coated steel and aluminum, ABS, 100% water-repellent coated polyester |
| Assembly Required | Yes (mounting) |
7. Warranty and Support
7.1. Warranty Information
This product comes with a standard manufacturer's warranty. Please refer to your purchase documentation or the seller's terms and conditions for specific warranty details, duration, and coverage.
7.2. Customer Support
For any questions, technical assistance, or spare parts, please contact tectake customer service. You can typically find contact information on the official tectake website or through your point of purchase.
Always provide your product model number (406596) and purchase date when contacting support to ensure efficient service.
