1. Introduction
Thank you for choosing the Sinbo SVC-8636 Cordless Vertical Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
The Sinbo SVC-8636 is designed for powerful and effective cleaning, featuring BLDC motor technology and a multi-cyclone system. Its 22.2V 2200 mAh Li-ion battery provides up to 42 minutes of continuous use. With 3 operating modes, an LED-illuminated XL turbo head, and an advanced filter system (HEPA + stainless steel filter), it ensures thorough cleaning. Its cordless and lightweight design allows for versatile use as both a vertical and handheld vacuum.
2. Important Safety Instructions
When using electrical appliances, basic precautions should always be followed, including the following:
- Read all instructions before using this appliance.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up toxic material (e.g., chlorine bleach, ammonia cleaner, drain cleaner).
- Do not use without dust cup and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
- Do not charge the unit outdoors.
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.
- Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
3. Product Components
The Sinbo SVC-8636 Cordless Vertical Vacuum Cleaner typically includes the following components:
- Main Motor Unit (Handheld Vacuum)
- Extension Tube
- XL Turbo Head with LED Illumination
- 2-in-1 Dust Brush / Crevice Tool
- Wall Mount Apparatus
- Power Adapter / Charger
- User Manual
Image: The Sinbo SVC-8636 Cordless Vertical Vacuum Cleaner showcasing its main unit, extension tube, and floor head, highlighting key features like BLDC motor, 42-minute runtime, 22.2V Li-ion battery, and LED illumination.
4. Setup and Assembly
4.1 Assembling the Vacuum Cleaner
- Attach the Extension Tube: Insert the extension tube into the main motor unit until it clicks securely into place.
- Attach the Floor Head: Connect the XL turbo head to the other end of the extension tube, ensuring it locks firmly.
- Attach Accessories: For handheld use, attach the 2-in-1 dust brush directly to the main motor unit. For vertical use, attach it to the extension tube if needed.
4.2 Charging the Battery
Before first use, fully charge the vacuum cleaner. The LED charge indicator will show the charging status.
- Connect the power adapter to the charging port on the main motor unit.
- Plug the adapter into a wall outlet.
- Allow the unit to charge until the LED indicator shows a full charge.
Image: The handheld unit of the Sinbo SVC-8636, highlighting the 22.2V 2200 mAh Li-ion battery and the transparent dustbin, indicating its powerful and cordless operation.
4.3 Installing the Wall Mount
The wall mount apparatus allows for convenient storage and charging.
- Choose a suitable location near a power outlet.
- Mark the drilling points on the wall using the wall mount as a template.
- Drill holes and insert wall plugs (if necessary).
- Secure the wall mount to the wall with screws.
- Hang the vacuum cleaner on the wall mount for storage and charging.
Image: The Sinbo SVC-8636 vacuum cleaner securely stored on its wall mount apparatus, demonstrating a space-saving storage solution.
5. Operating Instructions
5.1 Powering On/Off and Mode Selection
- Power On: Press the power button on the main unit to start the vacuum cleaner.
- Mode Selection: The vacuum features 3 operating modes. Press the mode selection button to cycle through the power levels (e.g., Eco, Standard, Max). The LED display will indicate the current mode and battery level.
- Power Off: Press the power button again to turn off the vacuum cleaner.
5.2 Using the Vacuum Cleaner
- Vertical Vacuum Mode: Use the extension tube and XL turbo head for cleaning floors, carpets, and larger areas. The LED illumination on the turbo head helps reveal hidden dust.
Image: A person using the Sinbo SVC-8636 cordless vertical vacuum cleaner on a rug, demonstrating its ease of use and maneuverability for floor cleaning.
Image: A close-up view of the Sinbo SVC-8636's LED-illuminated XL turbo head on a floor, showing how the green LED lights make fine dust visible for thorough cleaning.
- Handheld Vacuum Mode: Detach the extension tube and attach the 2-in-1 dust brush directly to the main motor unit for cleaning furniture, car interiors, stairs, and hard-to-reach areas.

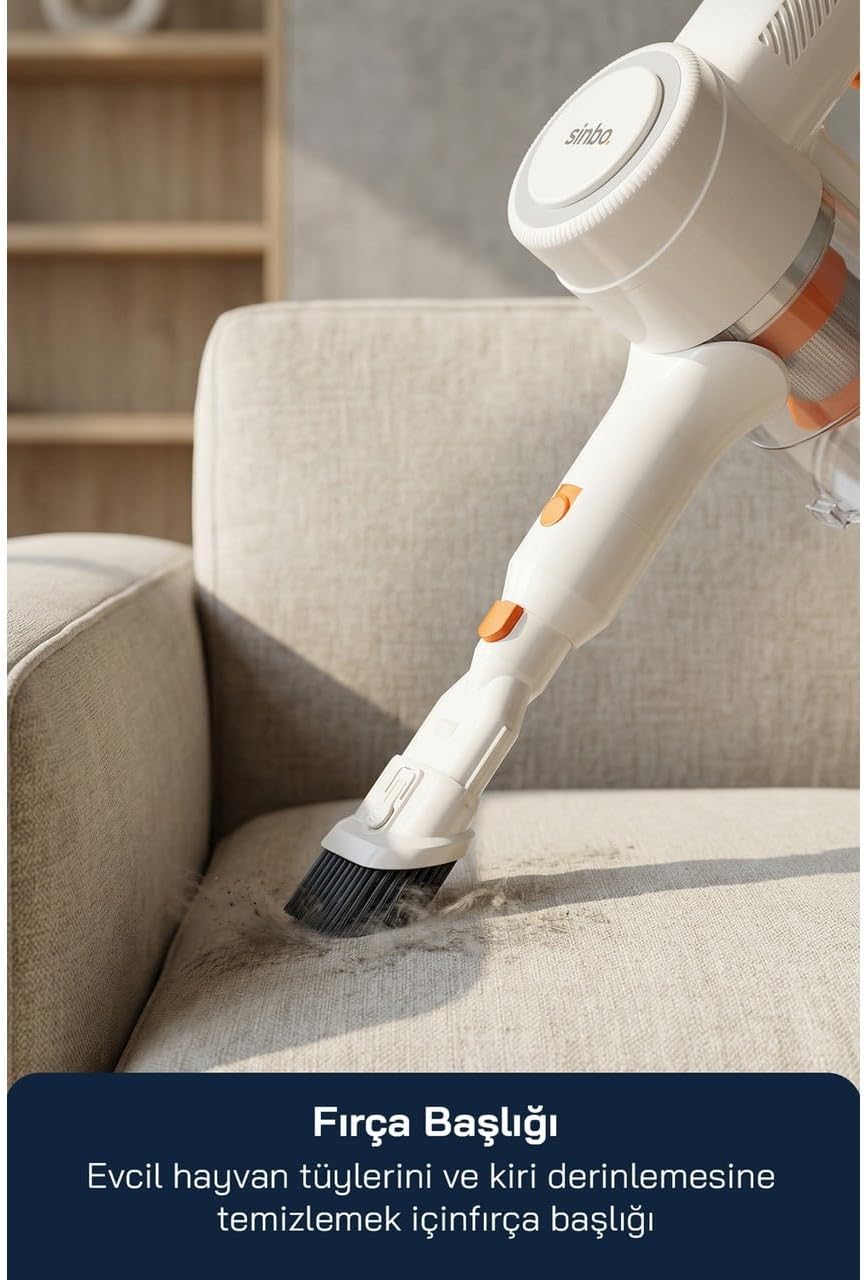

Image: The Sinbo SVC-8636 used in handheld mode with the brush attachment to clean a sofa, illustrating its versatility for upholstery and pet hair removal.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
6.1 Emptying the Dustbin
The 1-liter dustbin should be emptied regularly, especially when the 'MAX' line is reached.
- Ensure the vacuum cleaner is turned off.
- Press the dustbin release button to detach the dustbin from the main unit.
- Open the dustbin lid and empty the contents into a waste bin.
- Close the lid and reattach the dustbin to the main unit until it clicks.
6.2 Cleaning the Filters
The multi-cyclone, stainless steel, and HEPA filters require regular cleaning to maintain suction power.
- Remove the dustbin as described above.
- Carefully remove the filter components from the dustbin.
- Tap the filters gently to remove loose dust. For thorough cleaning, rinse the stainless steel and HEPA filters under cold running water.
- Allow all filter components to air dry completely for at least 24 hours before reassembling. Do not use the vacuum with wet filters.
- Reassemble the filters and dustbin, then reattach to the main unit.
6.3 Cleaning the XL Turbo Head
Periodically check the turbo brush for tangled hair or debris.
- Turn off the vacuum cleaner and detach the XL turbo head.
- Locate the brush roll release mechanism (usually a latch or screw) and remove the brush roll.
- Use scissors or a brush to remove any tangled hair, threads, or debris from the brush roll.
- Clean the inside of the brush head housing.
- Reinsert the brush roll and secure it in place.
7. Troubleshooting
If you encounter issues with your Sinbo SVC-8636, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Battery is discharged Power button not pressed correctly | Charge the battery fully Ensure the power button is pressed firmly |
| Reduced suction power | Dustbin is full Filters are clogged Hose/nozzle is blocked Brush roll is tangled | Empty the dustbin Clean or replace the filters Check for and remove blockages Clean the brush roll |
| Battery not charging | Charger not properly connected Faulty charger or outlet | Ensure charger is securely plugged into vacuum and outlet Try a different outlet or contact customer support for charger replacement |
| Brush roll not spinning | Brush roll is tangled Obstruction in the brush head | Clean the brush roll of hair and debris Remove any obstructions from the brush head |
If the problem persists after trying these solutions, please contact Sinbo customer support.
8. Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | SVC-8636 |
| Brand | Sinbo |
| Battery Type | 22.2V 2200 mAh Li-ion |
| Motor Technology | BLDC Motor (Brushless, up to 100,000 rpm) |
| Suction Power | Max 20 kPa |
| Dustbin Capacity | 1 Liter |
| Usage Time | Up to 42 minutes (depending on mode) |
| Operating Modes | 3 levels |
| Filter System | Multi Cyclone, Stainless Steel Filter, HEPA Filter |
| Special Features | LED Illuminated XL Turbo Head, LED Speed and Charge Indicator, Wall Mount Apparatus |
| Product Dimensions (L x W x H) | 30 cm x 25 cm x 100 cm |
| Country of Origin | Turkey |
9. Warranty and Customer Support
For warranty information, please refer to the warranty card included with your product or contact your local Sinbo distributor. Keep your purchase receipt as proof of purchase.
For technical assistance, spare parts, or any other inquiries, please contact Sinbo customer support through their official website or the contact details provided in your product packaging.
