BJdfgE ET60L 60lb 12V Electric Trolling Motor User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your BJdfgE ET60L 60lb 12V Electric Trolling Motor. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage or injury.

The ET60L is a powerful 60lb thrust, 12V DC electric trolling motor designed for fishing boats and other recreational watercraft. It features a three-blade propeller and is intended for transom mounting.

2. Safety Instructions

Always observe the following safety precautions to reduce the risk of injury or damage:

• Read all instructions before operating the motor.
• Ensure the motor is securely mounted to the transom before use.
• Always disconnect the battery when the motor is not in use or during maintenance.
• Keep hands, feet, and clothing clear of the propeller when the motor is connected to power.
• Do not operate the motor in areas where swimmers or other water users may be present.
• Wear appropriate personal flotation devices (PFDs) when operating any watercraft.
• Do not modify the motor or its components. Use only genuine replacement parts.
• Ensure the battery is properly charged and maintained according to its manufacturer's instructions.

3. Package Contents

Verify that all components are present and undamaged upon unpacking:

• BJdfgE ET60L Electric Trolling Motor with three-blade propeller
• Transom mounting bracket
• Battery connection cables with clamps
• User Manual (this document)

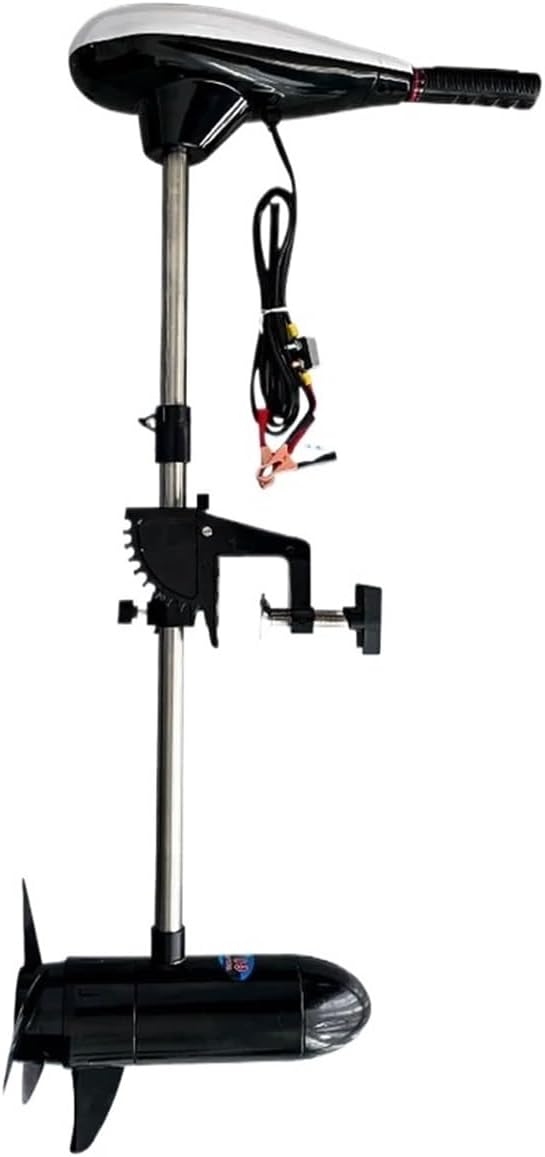

Image: The complete BJdfgE ET60L electric trolling motor, showing the main unit, shaft, propeller, and control handle. A table of key specifications is also visible on the right side of the image.

4. Setup and Installation

Follow these steps to properly install your trolling motor:

1. Mounting the Motor: Attach the transom mounting bracket securely to the stern of your boat. Ensure the bracket is tightened firmly to prevent movement during operation.
2. Positioning the Motor: Insert the motor shaft into the mounting bracket. Adjust the depth of the propeller in the water using the depth adjustment mechanism (see image below). The propeller should be submerged sufficiently to avoid cavitation but not so deep that it hits the bottom.
3. Adjusting Tilt Angle: The motor's tilt angle can be adjusted from 0-90 degrees. Use the water buckle release button to set the desired tilt angle, allowing the motor to be raised out of the water when not in use or for shallow water navigation.
4. Connecting to Battery: Connect the red positive (+) cable clamp to the positive terminal of a 12V deep cycle marine battery. Connect the black negative (-) cable clamp to the negative terminal of the battery. Ensure connections are secure and free from corrosion.

Image: The electric trolling motor securely mounted on the transom of an inflatable boat, demonstrating a typical installation scenario.

Image: The trolling motor mounted on a boat, illustrating the adjustable tilt angle feature with an arrow indicating the range of motion (0-90 degrees).

Image: Detailed views of the motor's control features. Top left shows the variable speed handle with 5 forward and 3 reverse settings. Top right shows the telescopic handle, extendable up to 15cm. Bottom left displays the water buckle for adjusting the tilt angle. Bottom right illustrates the depth adjustment mechanism for the propeller.

5. Operating Instructions

Once the motor is installed and connected to the battery, you can begin operation:

• Power On: Ensure the motor is fully submerged and clear of obstructions before turning it on.
• Speed Control: The motor features a variable speed handle with 5 forward speeds and 3 reverse speeds. Rotate the handle to select the desired speed. Start with lower speeds and gradually increase as needed.
• Steering: The motor is steered manually by rotating the control handle.
• Telescopic Handle: The control handle can be extended and retracted by up to 15 cm for comfortable operation.
• Power Off: To stop the motor, return the speed control handle to the "OFF" or neutral position. Disconnect the battery when the motor is not in use.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your trolling motor:

• After Each Use:
  • Rinse the motor, especially the propeller and shaft, with fresh water to remove salt, sand, or debris.
  • Inspect the propeller for any fishing line, weeds, or damage. Remove any obstructions.
  • Check all electrical connections for corrosion. Clean with a wire brush if necessary and apply dielectric grease.
• Battery Care:
  • Keep the battery fully charged when not in use.
  • Store the battery in a cool, dry place.
• Storage: Store the motor in a dry, protected area when not in use for extended periods.

7. Troubleshooting

If you encounter issues not listed here or if solutions do not resolve the problem, contact customer support.

8. Specifications

The following table details the technical specifications for the BJdfgE ET60L Electric Trolling Motor:

Image: A diagram illustrating the key dimensions of the electric trolling motor, including overall height, shaft length, handle length, and propeller unit dimensions.

9. Warranty and Support

For warranty information or technical support, please refer to the retailer or manufacturer's official website. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, you may contact the manufacturer, BJdfgE, through their official support channels.
