OUKITEL P1000 PLUS Portable Power Station with 200W Solar Panel User Manual

1. Introduction

Thank you for choosing the OUKITEL P1000 PLUS Portable Power Station with 200W Solar Panel. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.

The OUKITEL P1000 PLUS is a high-capacity portable power station featuring a 1024 Wh LiFePO4 battery, 1800W continuous output (3600W peak), and a 200W solar panel for versatile charging. It is designed to provide reliable power for camping, RVs, home backup, and various outdoor activities.

2. Safety Instructions

To ensure safe operation, always follow these basic precautions:

• Do not disassemble, repair, or modify the unit. Incorrect reassembly may cause fire or injury.
• Do not expose the unit to fire or high temperatures (above 60°C/140°F).
• Do not use or store the unit in a bathroom or in areas exposed to water or moisture.
• Do not use or store the unit near heat sources such as fires or heaters.
• Use only the original charger and cables provided with the unit.
• Keep the unit away from children and pets.
• Avoid dropping, impacting, or subjecting the unit to strong vibrations.
• Ensure proper ventilation during use to prevent overheating.
• In case of fire, use a dry powder fire extinguisher. Water may cause electric shock.
• Dispose of the product according to local regulations.

Image: The OUKITEL P1000 PLUS holds multiple international certifications, ensuring safety and quality standards.

3. Package Contents

Verify that all items are included in your package:

• 1 x OUKITEL P1000 PLUS Portable Power Station
• 1 x 200W Solar Panel
• 1 x AC Charging Cable
• 1 x 5521-MC4 Solar Cable
• 1 x User Manual

Image: Visual representation of the items included in the OUKITEL P1000 PLUS package, including the power station, solar panel, and various cables.

4. Product Overview

The OUKITEL P1000 PLUS features a robust design with multiple input and output ports, along with a clear digital display for monitoring status.

4.1. Ports and Interfaces

Image: Detailed view of the OUKITEL P1000 PLUS showing all input and output ports, including AC outlets, USB-A, USB-C, and car charger port.

• AC Outlets (x4): For powering standard household appliances up to 1800W.
• USB-C PD 100W (x2): For fast charging compatible laptops, tablets, and smartphones.
• USB-A QC3.0 (x2): For quick charging various USB devices.
• DC Output (x2): For DC-powered devices.
• Car Charger Port (x1): For powering 12V car appliances.
• AC Input: For charging the power station from a wall outlet.
• Solar Input: For charging the power station using solar panels.

4.2. Digital Display

The integrated digital display provides real-time information about the power station's status, including battery level, input/output wattage, and remaining run/charge time.

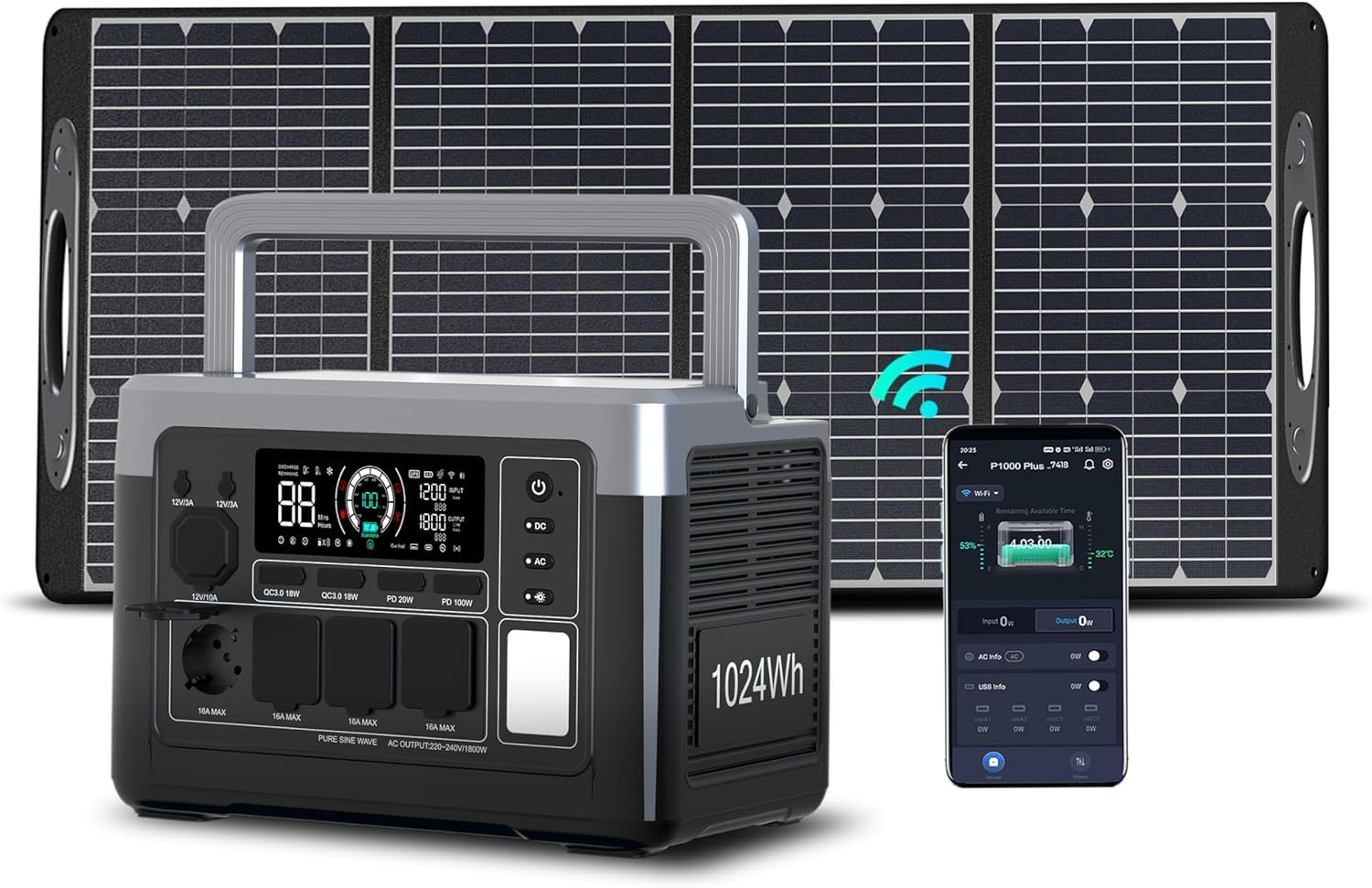

Image: Front view of the OUKITEL P1000 PLUS, highlighting the digital display and control buttons.

5. Setup

5.1. Initial Charging

Before first use, fully charge the OUKITEL P1000 PLUS. You can charge it via an AC wall outlet or the included 200W solar panel.

• AC Charging: Connect the AC charging cable to the power station's AC input port and then to a wall outlet. The unit supports 1200W fast charging, reaching 80% capacity in approximately 45 minutes.
• Solar Charging: Connect the 200W solar panel to the power station's solar input port using the 5521-MC4 solar cable. Position the solar panel in direct sunlight for optimal charging. The unit supports up to 500W solar input, achieving 100% charge in approximately 130 minutes under ideal conditions.

Image: Illustration showing the OUKITEL P1000 PLUS being charged via an AC wall outlet and a solar panel, demonstrating its versatile charging capabilities.

6. Operating Instructions

6.1. Powering Devices

To power your devices, simply connect them to the appropriate output ports (AC, USB-A, USB-C, DC, or car charger). Press the corresponding output button to activate the port. The digital display will show the output wattage.

The P1000 PLUS can power most devices under 1800W continuously, with a peak power of 3600W. It is compatible with 99% of common household appliances and electronic devices.

Image: The OUKITEL P1000 PLUS in a camping setting, demonstrating its ability to power various devices for outdoor use.

6.2. Uninterruptible Power Supply (UPS) Function

The P1000 PLUS features an Uninterruptible Power Supply (UPS) function. When connected to an AC wall outlet and powering devices, it can automatically switch to battery power within 10 milliseconds in case of a power outage. This provides seamless backup power for sensitive electronics like computers, ensuring continuous operation.

Image: The OUKITEL P1000 PLUS providing backup power to a computer setup during a simulated power outage, illustrating its 10ms UPS switchover.

Image: Diagram illustrating the UPS protection feature, showing how the power station provides continuous power during an outage.

6.3. App Control

The OUKITEL P1000 PLUS can be controlled via the "Wonderfree" mobile application. Download the app to monitor battery status, control output ports, and manage settings remotely.

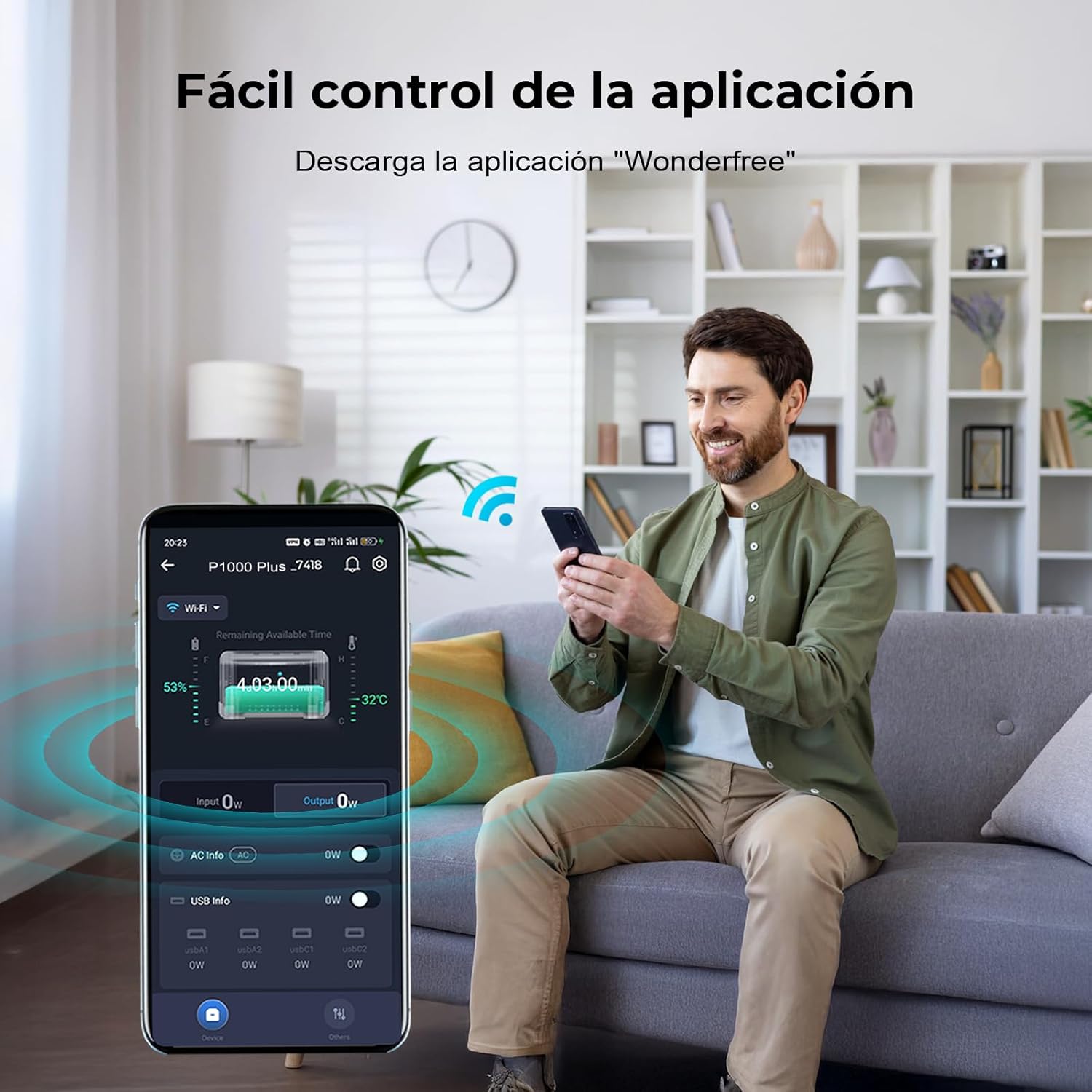

Image: A user interacting with the "Wonderfree" app on a smartphone, demonstrating remote control and monitoring of the OUKITEL P1000 PLUS.

6.4. LED Light Modes

The power station includes a versatile LED light with three modes: constant, SOS, and intermittent (strobe). This is useful for outdoor activities, emergency lighting, or signaling.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your OUKITEL P1000 PLUS.

• Battery Care: The unit uses a high-quality LiFePO4 battery, designed for over 4000 cycles and a lifespan of more than 10 years with regular use. For best results, store the unit with a charge level between 50% and 80% if not used for extended periods. Recharge every 3-6 months to prevent deep discharge.
• Cleaning: Use a dry, soft cloth to clean the exterior of the power station. Do not use abrasive cleaners or immerse the unit in water.
• Storage: Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures.

Image: Internal view illustrating the advanced LiFePO4 battery technology and robust design of the OUKITEL P1000 PLUS, highlighting its durability and safety features.

Image: Infographic detailing the safety and durability of LiFePO4 batteries, emphasizing their long lifespan and high cycle count.

8. Troubleshooting

If you encounter issues with your OUKITEL P1000 PLUS, refer to the following common troubleshooting steps:

• Unit Not Turning On: Ensure the battery is charged. Connect to an AC outlet for at least 30 minutes.
• No Output from Ports: Verify that the specific output port (AC, USB, DC) is activated by pressing its respective button. Check if the device connected requires more power than the port can supply or if the total output exceeds 1800W.
• Slow Charging: For AC charging, ensure the cable is securely connected and the wall outlet is functioning. For solar charging, ensure the solar panel is in direct sunlight, free from obstructions, and the solar cable is correctly connected. Check the solar input wattage on the display.
• Overload Protection: If the unit shuts down due to overload, disconnect some devices and restart the power station.
• App Connectivity Issues: Ensure Bluetooth and Wi-Fi are enabled on your mobile device. Restart the app and the power station if necessary.

If the problem persists, please contact customer support.

9. Specifications

10. Warranty and Support

The OUKITEL P1000 PLUS comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use.

The manufacturer is OKITECH. For technical support, warranty claims, or any questions regarding your product, please contact the seller or visit the official OUKITEL website for support information.

Seller: OKITECH Spain

Please have your purchase receipt and product model number (P1000 PLUS+PV200) ready when contacting support.
