Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your SPORTNOW Outdoor Basketball Hoop, Model A61-083V00BK. Please read this manual thoroughly before assembly and use to ensure safe and correct operation. Keep this manual for future reference.

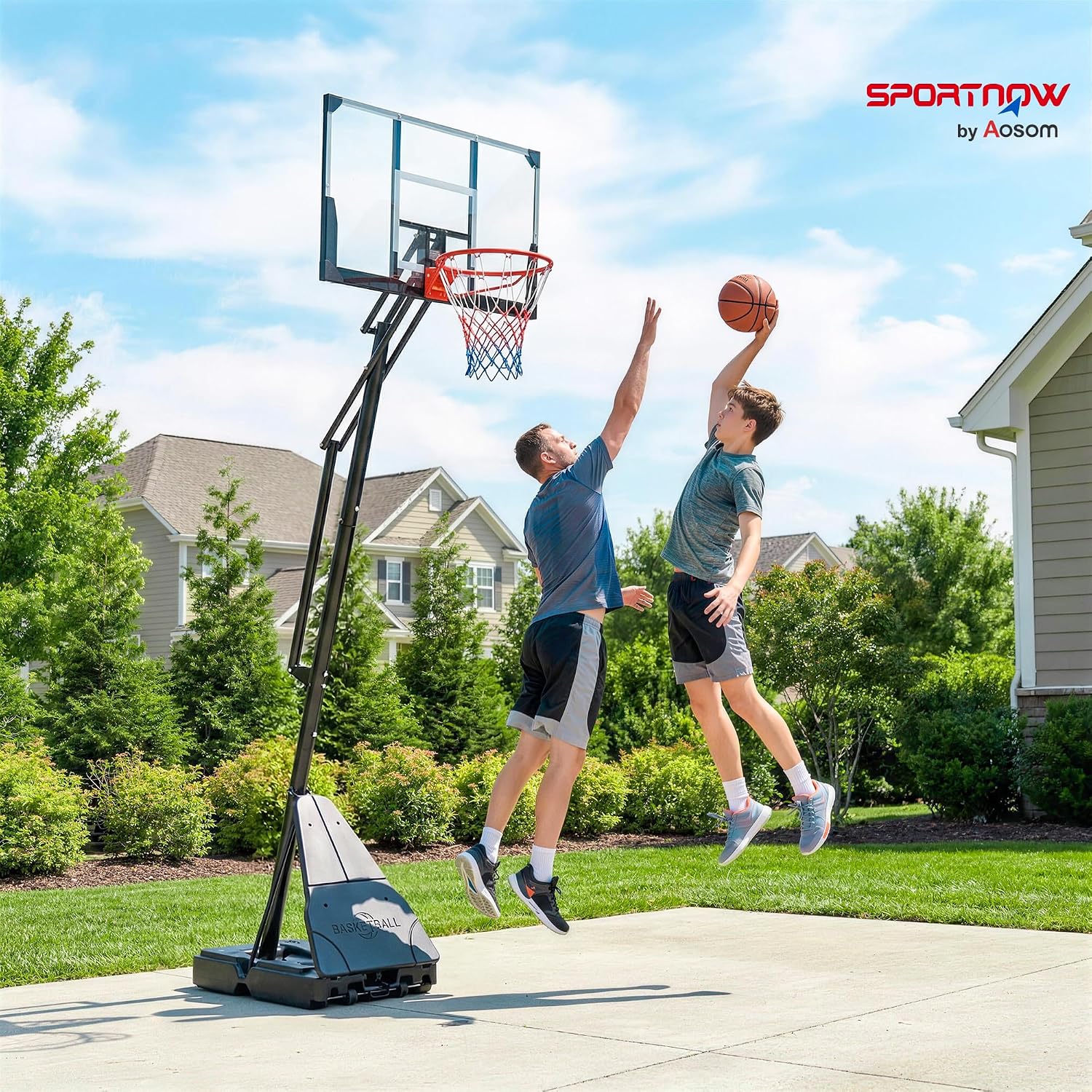

Image: Two individuals are actively playing basketball outdoors with the SPORTNOW portable basketball hoop, set against a suburban house backdrop, illustrating typical product use.
Safety Information
- Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or damaged.
- Always fill the base with water or sand to the recommended capacity (up to 60 kg) for maximum stability. An unfilled base can lead to tipping and injury.
- Do not hang on the rim or backboard. This product is not designed to support human weight and may cause severe injury or damage to the unit.
- Regularly inspect the hoop for loose bolts, cracks, or other signs of wear. Tighten fasteners and replace damaged parts as needed.
- Keep children away from the hoop during assembly and adjustment.
- When moving the hoop, ensure the base is stable and use the wheels provided. Exercise caution to prevent tipping.
- Do not use in strong winds or severe weather conditions. Secure or store the hoop to prevent damage or injury.
Package Contents
Verify that all components listed below are included in your package:
- Backboard
- Base
- Wheels
- Rim
- Steel Post and Tubes
- Nylon Net
- Assembly Hardware (bolts, nuts, washers, etc.)
Setup Instructions
Follow these steps for proper assembly and initial setup of your basketball hoop:
- Unpack Components: Carefully remove all parts from the packaging. Refer to the package contents list to ensure all items are present.
- Assemble the Base: Position the base on a flat, level surface. Fill the base with water or sand through the designated opening. The base can hold up to 60 kg (132 lbs) for optimal stability. Ensure the cap is securely fastened after filling.
- Attach the Pole: Securely attach the steel pole sections according to the provided hardware. Ensure all bolts are tightened to prevent wobbling.
- Mount the Backboard and Rim: Attach the shatterproof PC backboard and the impact-absorbing rim to the pole using the specified hardware. Ensure the net is properly attached to the rim.
- Adjust Height: Before first use, adjust the hoop to the desired height (between 2.45 m and 3.05 m) using the crank mechanism. Refer to the "Operating Instructions" section for detailed height adjustment.
- Check Stability: After assembly, gently shake the hoop to ensure it is stable. If any movement is detected, re-check all connections and ensure the base is adequately filled.
Image: A person is shown filling the wide base of the basketball hoop with water using a garden hose, demonstrating the process for adding weight for stability.

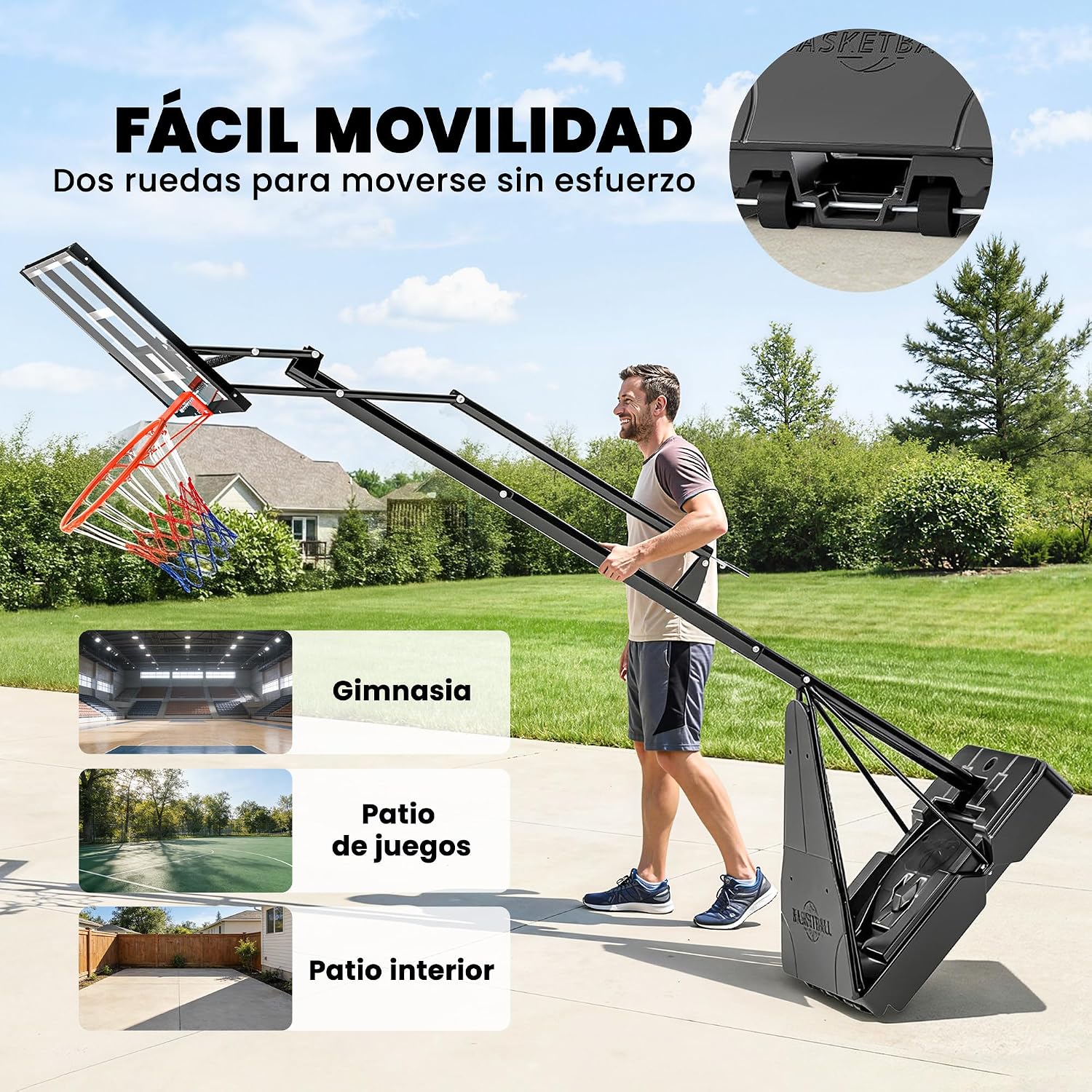

Image: A man demonstrates the easy mobility of the basketball hoop by tilting it onto its two integrated wheels, preparing to move it across a paved surface.
Operating Instructions
Height Adjustment
The SPORTNOW basketball hoop features a 5-level adjustable height mechanism, allowing the rim to be set between 2.45 meters (8 feet) and 3.05 meters (10 feet). This makes it suitable for various ages and skill levels.
- Locate the height adjustment crank or lever on the main pole.
- Carefully turn the crank or operate the lever to raise or lower the backboard and rim to your desired height.
- Ensure the mechanism locks securely into place at the chosen height before use.
Image: A visual representation of the basketball hoop's adjustable height, indicating a range from 8 feet to 10 feet, with a close-up of a hand turning the quick-lift crank for easy adjustment.
Moving the Hoop
For easy relocation, the hoop is equipped with two wheels on the base.
- Ensure the base is securely filled to maintain stability during movement.
- Carefully tilt the hoop backward until it rests on its wheels.
- Push or pull the hoop to the desired location. Exercise caution on uneven surfaces.
- Once in position, gently lower the hoop until the entire base is flat on the ground.
Maintenance
- Regular Inspection: Periodically check all bolts, nuts, and connections for tightness. Tighten any loose fasteners to ensure structural integrity.
- Clean Components: Wipe down the backboard, rim, and pole with a damp cloth and mild soap as needed. Avoid abrasive cleaners that could damage surfaces.
- Base Water/Sand Level: Regularly check the fill level of the base. Refill with water or sand if the level drops due to evaporation or leakage.
- Net Replacement: The nylon net is weather-resistant but may wear over time. Replace the net if it becomes frayed or damaged.
- Winter Storage: In freezing temperatures, if the base is filled with water, consider adding antifreeze or emptying the water to prevent ice expansion damage. Alternatively, store the hoop indoors during winter months.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Hoop feels unstable or wobbly. | Base not sufficiently filled; loose connections. | Ensure the base is filled to its maximum capacity (60 kg) with water or sand. Check and tighten all assembly bolts. |
| Difficulty adjusting height. | Mechanism jammed; dirt in moving parts. | Inspect the crank/lever for obstructions. Clean any dirt or debris. Apply a silicone-based lubricant if necessary. |
| Backboard appears scratched or damaged. | Impact from play; improper cleaning. | The backboard is shatterproof PC, but surface scratches can occur. Use only soft cloths and mild cleaners. Avoid sharp objects. |
| Hoop is difficult to move. | Wheels obstructed; base too heavy to tilt easily. | Check wheels for debris. Ensure the ground surface is smooth. Tilt the hoop sufficiently to engage the wheels fully. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | A61-083V00BK |
| Brand | SPORTNOW |
| Overall Dimensions (L x W x H) | 120 cm x 120 cm x 305 cm (47.2 in x 47.2 in x 120 in) |
| Adjustable Height Range | 2.45 m - 3.05 m (8 ft - 10 ft) |
| Backboard Material | Shatterproof Polycarbonate (PC) |
| Frame Material | Alloy Steel (coated for outdoor use) |
| Base Material | Polyethylene (PE) |
| Base Fill Capacity | Up to 60 kg (water or sand) |
| Product Weight | 30 kg (66 lbs) |
| Color | Black |
| Special Features | Adjustable height, Portable with wheels, Shatterproof backboard, Ball return system |
| Intended Use | Outdoor |
| Assembly Required | Yes |
Image: A detailed diagram illustrating the dimensions of the basketball hoop, including backboard width (120 cm), backboard height (80 cm), total height (360 cm), and base dimensions (70 cm x 108 cm). A person standing next to it provides scale.
Warranty Information
This SPORTNOW basketball hoop comes with a 3-year product warranty. This warranty covers manufacturing defects and material flaws under normal use and service. It does not cover damage resulting from misuse, abuse, accidents, alterations, or improper maintenance. Please retain your proof of purchase for warranty claims.
Customer Support
If you have any questions regarding the assembly, operation, or maintenance of your SPORTNOW basketball hoop, or if you encounter any issues not covered in the troubleshooting section, please contact our customer support team. Refer to your purchase documentation or the SPORTNOW official website for contact details.
