Introduction
This manual provides essential instructions for the safe and efficient operation of your CONTOURE RV-955SSAF Built-In RV Air Fryer Microwave Combo. This versatile appliance combines the functions of an air fryer, convection oven, and microwave, designed for compact spaces like RVs and small kitchens. Please read all instructions carefully before use and retain this manual for future reference.
Important Safety Instructions
When using electrical appliances, basic safety precautions should be followed, including:
- Read all instructions before using the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Do not heat liquids or other foods in sealed containers as they are liable to explode.
- Do not use corrosive chemicals or vapors in this appliance.
- Close supervision is necessary when the appliance is used by or near children.
- Ensure proper ventilation around the appliance during operation.
- Only use utensils suitable for microwave, air fry, or convection cooking as specified in this manual.
Product Overview
The CONTOURE RV-955SSAF is a multi-functional cooking appliance featuring microwave, air fry, convection, and grill capabilities. It is designed for built-in installation.
Image: Front view of the CONTOURE RV-955SSAF Built-In RV Air Fryer Microwave Combo. This image displays the sleek stainless steel finish and the integrated control panel on the right side.
Dimensions
Image: Diagram showing the dimensions of the CONTOURE RV-955SSAF. The unit measures approximately 16 inches wide, 11.38 inches high, and 19.5 inches deep, including the built-in trim.
Control Panel
The appliance features a touch control panel with a blue LED display. It includes numeric keys, function buttons for Microwave, Air Fry, Convection, Grill, and Combi modes, as well as preset cooking options, a timer/clock, and start/stop controls.

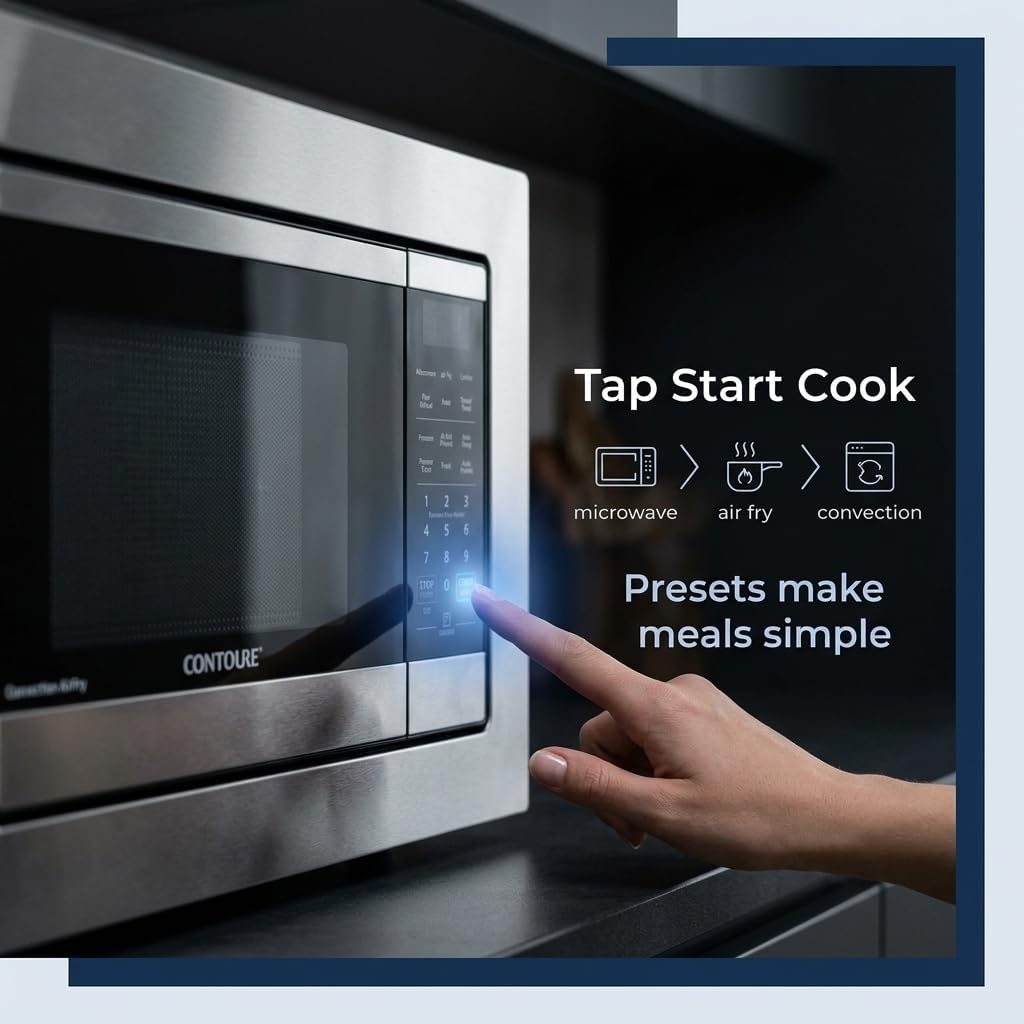

Image: A hand interacting with the touch control panel, highlighting the 'START' button. The panel shows various cooking modes and numeric inputs.
Interior Components
The interior is made of stainless steel and includes a rotating glass turntable for even cooking. A metal rack is provided for air frying and convection cooking.
Image: The appliance door is open, revealing the stainless steel interior and the glass turntable. This view demonstrates the internal capacity.
Setup and Installation
This appliance is designed for built-in installation. A trim kit is available separately for a seamless integrated look. Ensure the installation area meets the specified dimensions and ventilation requirements.
- Unpacking: Carefully remove all packaging materials and accessories. Inspect the appliance for any damage.
- Placement: Choose a stable, level surface within a cabinet opening that provides adequate clearance for ventilation. Refer to the separate installation guide for precise cutout dimensions.
- Electrical Connection: Ensure the power outlet matches the voltage and frequency requirements of the appliance (120V, 60Hz). Plug the appliance into a grounded outlet.
- Turntable Installation: Place the turntable ring inside the oven cavity, then position the glass turntable plate securely on top of the ring.
Operating Instructions
Your CONTOURE RV-955SSAF offers multiple cooking functions. Always ensure the correct accessories are used for each mode.
Microwave Cooking
Use microwave-safe dishes. The appliance operates at 900 watts.
- Time Cook: Press the 'Microwave' button, then use the numeric keypad to enter the desired cooking time. Press 'START'.
- Power Level: After setting time, press 'Microwave' again to adjust power level (e.g., P-80 for 80% power).
- Express Cook: For quick cooking, press '1', '2', or '3' for 1, 2, or 3 minutes of cooking at full power. Press 'START' to begin.
Smart Air Fry Function
This function uses hot air circulation to cook food with little to no oil. Use the provided metal rack for best results.
- Place food on the metal rack.
- Press the 'Air Fry' button.
- Select an Air Fry preset or manually set time and temperature if available.
- Press 'START'.
Convection Oven
Ideal for baking and roasting. Use oven-safe bakeware.
- Press the 'Convection' button.
- Enter the desired temperature using the numeric keypad.
- Enter the cooking time.
- Press 'START'. The oven will preheat, then begin cooking.
Grill Function
For browning and toasting. Use the metal rack.
- Place food on the metal rack.
- Press the 'Grill' button.
- Enter the desired grilling time.
- Press 'START'.
Combination Cooking
Combines microwave power with convection or grill for faster, more even cooking.
- Press the 'Combi' button.
- Select the desired combination mode (e.g., Combi 1 for Microwave + Convection, Combi 2 for Microwave + Grill).
- Set cooking time and power/temperature as prompted.
- Press 'START'.
Preset Cooking Modes
The appliance includes various preset modes for common foods like popcorn, potato, pizza, frozen mode, auto reheat, and auto cook. Refer to the control panel for specific options.
- Press the relevant preset button (e.g., 'Popcorn').
- Select the desired weight or quantity if prompted.
- Press 'START'.
Care and Maintenance
Regular cleaning and maintenance will ensure optimal performance and longevity of your appliance.
Exterior Cleaning
- Wipe the exterior with a damp cloth and mild detergent.
- Avoid abrasive cleaners or scouring pads that can scratch the stainless steel finish.
- Dry thoroughly with a soft cloth.
Interior Cleaning
- Clean the interior cavity regularly with a damp cloth and mild soap.
- For stubborn food splatters, place a bowl of water with lemon slices inside and microwave on high for 5-10 minutes to loosen residue, then wipe clean.
- Ensure the interior is dry before closing the door.
Turntable and Accessories
- The glass turntable and turntable ring can be washed in warm, soapy water or in the dishwasher.
- Clean the metal rack with warm, soapy water. Do not use abrasive cleaners.
- Ensure all accessories are completely dry before placing them back in the appliance.
Troubleshooting
If you encounter issues with your appliance, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not start | Power cord not plugged in; Door not closed properly; Fuse blown or circuit breaker tripped. | Ensure power cord is securely plugged in; Close the door firmly; Check household fuse or reset circuit breaker. |
| Food not cooking evenly | Food not stirred or rotated; Incorrect power level or cooking time; Turntable not rotating. | Stir or rotate food during cooking; Adjust power level and cooking time; Ensure turntable and ring are correctly placed and free of obstructions. |
| Excessive steam or condensation | High moisture content in food; Normal operation. | This is normal for foods with high moisture. Wipe interior after use. Ensure proper ventilation. |
| Unusual noise during operation | Turntable or accessories not correctly placed; Foreign object in cavity. | Re-position turntable and accessories; Check for and remove any foreign objects. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | CONTOURE |
| Model Name | RV-955SSAF |
| Product Dimensions (D x W x H) | 21.25" x 18.13" x 12.5" |
| Capacity | 0.9 cubic feet |
| Wattage | 900 watts |
| Color | Stainless Steel |
| Installation Type | Built-In |
| Special Feature | Smart Air Fry technology |
| Controller Type | Touch |
| Inner Material | Stainless Steel |
| Item Weight | 34.9 pounds |
| Included Components | Microwave Oven |
Warranty Information
This CONTOURE appliance comes with a one-year limited warranty covering manufacturer defects. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact CONTOURE customer support.
Customer Support
For technical assistance, service, or questions regarding your CONTOURE RV-955SSAF, please visit the official CONTOURE website or contact their customer service department. Have your model number (RV-955SSAF) and purchase date ready when contacting support.
